Haier LE32B8000 Service Manual

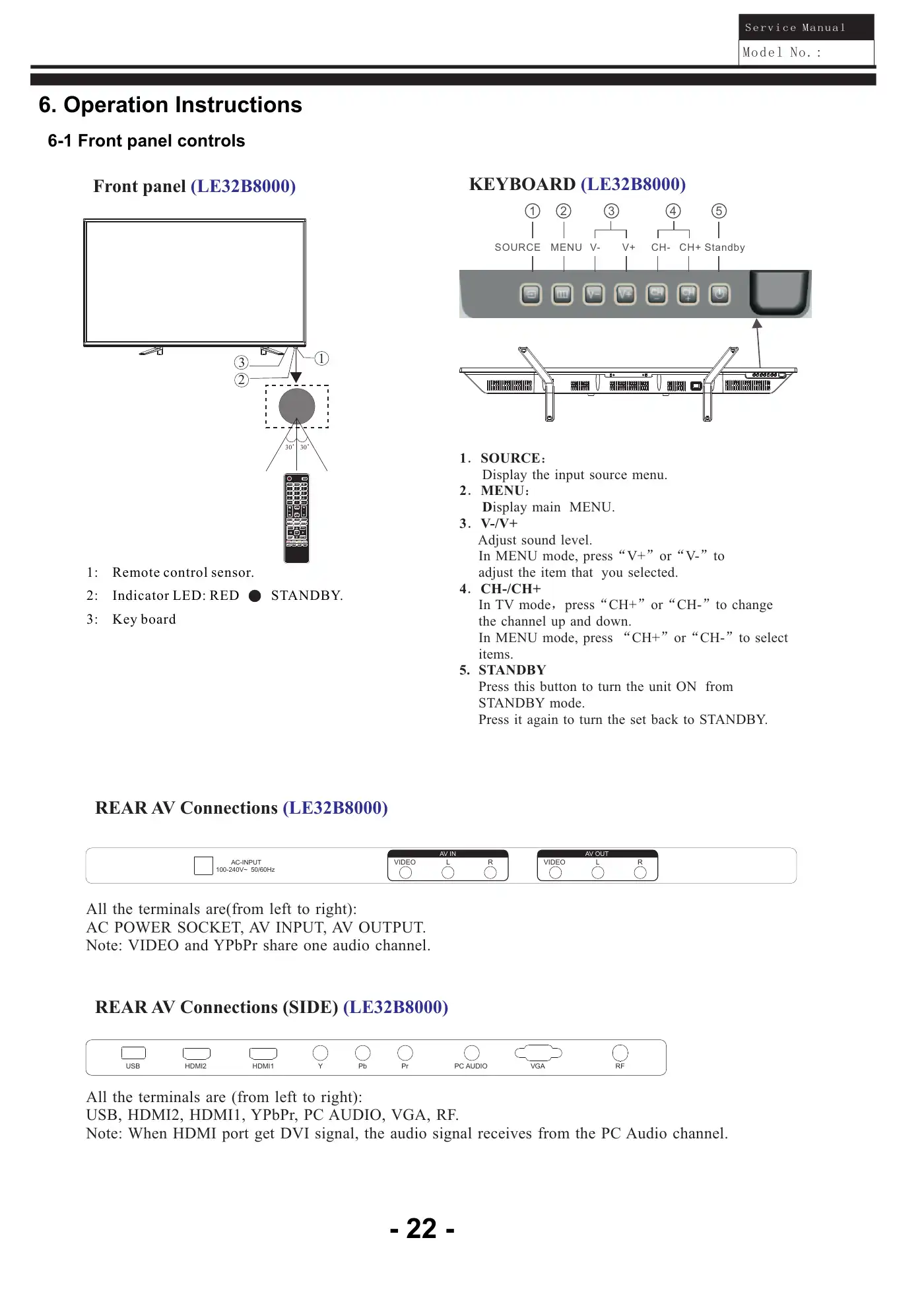

Front panel (LE32B8000) KEYBOARD (LE32B8000)1: Remote control sensor.2: Indicator LED: RED STANDBY.3: Key boardREAR AV Connections (LE32B8000)All the terminals are(from left to right):AC POWER SOCKET, AV INPUT, AV OUTPUT.Note: VIDEO and YPbPr share one audio channel.REAR AV Connections (SIDE) (LE32B8000)All the terminals are (from left to right):USB, HDMI2, HDMI1, YPbPr, PC AUDIO, VGA, RF.Note: When HDMI port get DVI signal, the audio signal receives from the PC Audio channel.1．SOURCE：Display the input source menu.2．MENU：Display main MENU.3．V-/V+Adjust sound level.In MENU mode, press“V+”or“V-”toadjust the item that you selected.4．CH-/CH+In TV mode，press“CH+”or“CH-”to changethe channel up and down.In MENU mode, press “CH+”or“CH-”to selectitems.5. STANDBYPress this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.SOURCE MENU V- V+ CH- CH+ Standby1 2 3 4 53230 301100-240V~ 50/60HzAC-INPUT VIDEO L RAV INVIDEO L RAV OUTUSB HDMI2 HDMI1 Y Pb Pr PC AUDIO VGA RFService ManualModel No.:6. Operation Instructions6-1 Front panel controls- 22 -
