Haier LE32B8000 Service Manual

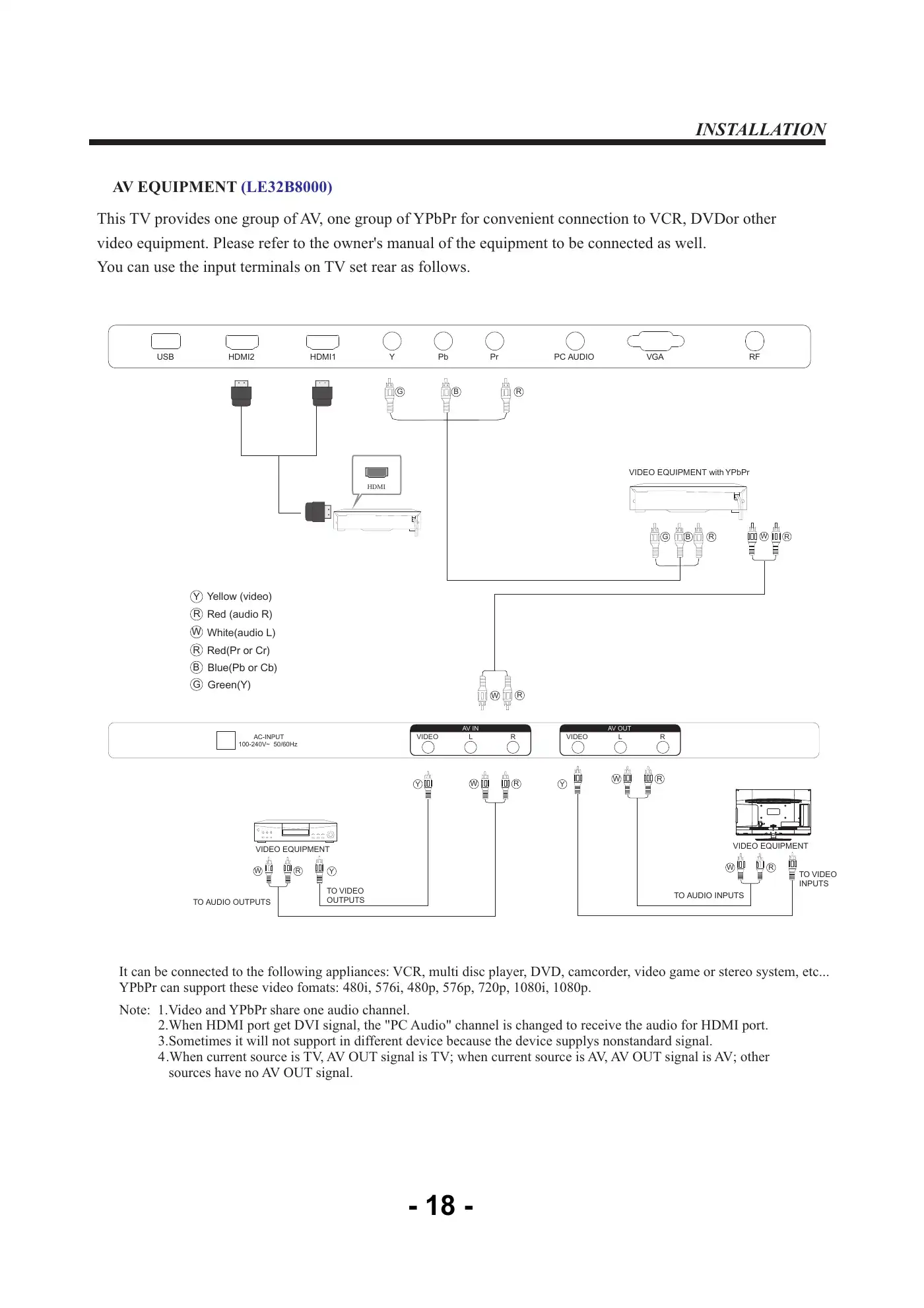

INSTALLATIONThis TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVDor othervideo equipment. Please refer to the owner's manual of the equipment to be connected as well.You can use the input terminals on TV set rear as follows.AV EQUIPMENT (LE32B8000)W RG B RVIDEO EQUIPMENT with YPbPrW RW RW RHDMITO AUDIO OUTPUTSVIDEO EQUIPMENTTO VIDEOOUTPUTSYYRed (audio R)White(audio L)Red(Pr or Cr)RWRBlue(Pb or Cb)Green(Y)BGYellow (video)YW RW RTO AUDIO INPUTSVIDEO EQUIPMENTTO VIDEOINPUTSG B RYIt can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc...YPbPr can support these video fomats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.Note: 1.Video and YPbPr share one audio channel.2.When HDMI port get DVI signal, the "PC Audio" channel is changed to receive the audio for HDMI port.3.Sometimes it will not support in different device because the device supplys nonstandard signal.4.When current source is TV, AV OUT signal is TV; when current source is AV, AV OUT signal is AV; othersources have no AV OUT signal.USB HDMI2 HDMI1 Y Pb Pr PC AUDIO VGA RF100-240V~ 50/60HzAC-INPUT VIDEO L RAV INVIDEO L RAV OUT- 18 -
