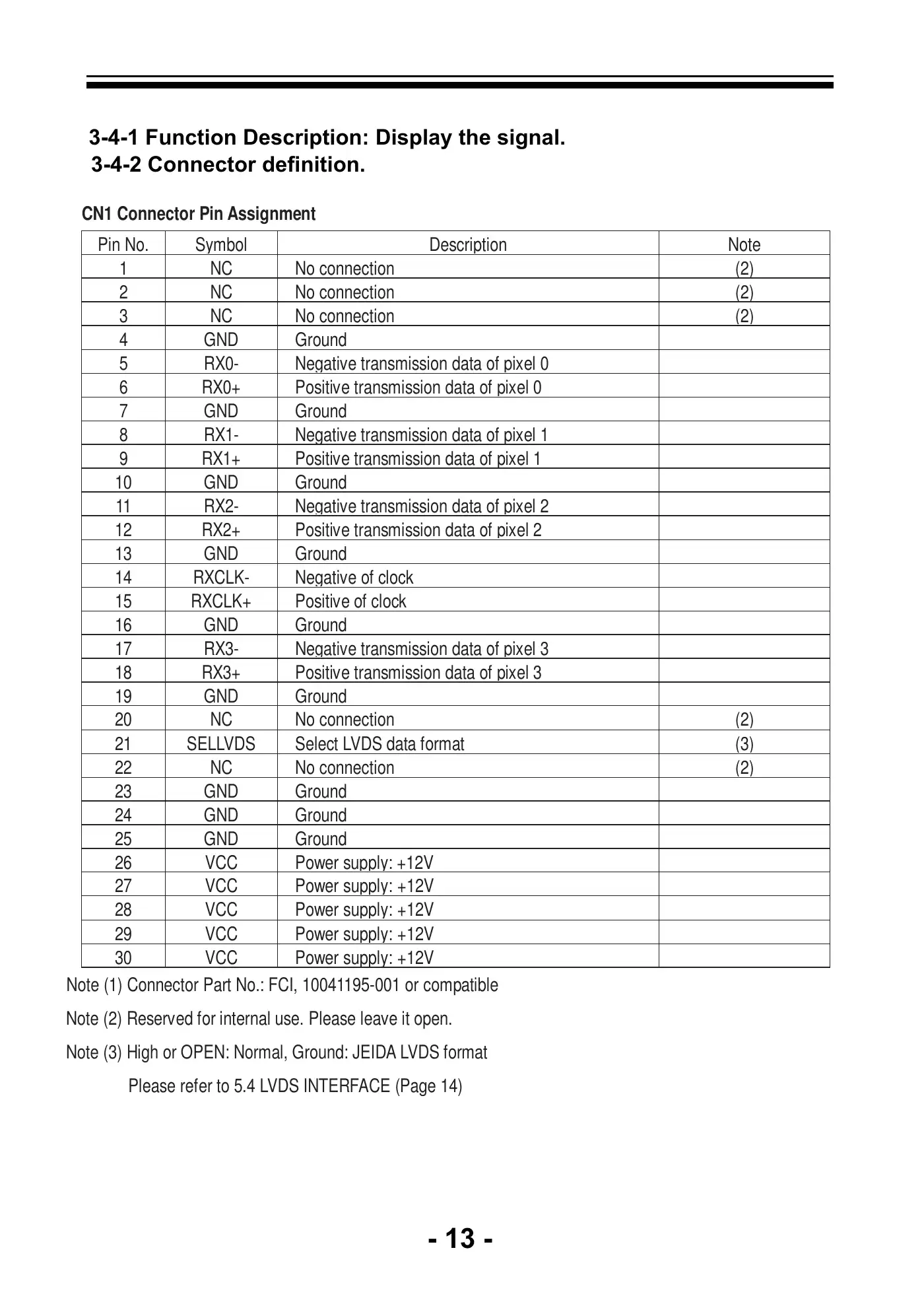

- 13 -3-4-1 Function Description: Display the signal.&RQQHFWRUGH¿QLWLRQCN1 Connector Pin AssignmentPin No. Symbol Description Note1 NC No connection (2)2 NC No connection (2)3 NC No connection (2)4 GND Ground5 RX0- Negative transmission data of pixel 06 RX0+ Positive transmission data of pixel 07 GND Ground8 RX1- Negative transmission data of pixel 19 RX1+ Positive transmission data of pixel 110 GND Ground11 RX2- Negative transmission data of pixel 212 RX2+ Positive transmission data of pixel 213 GND Ground14 RXCLK- Negative of clock15 RXCLK+ Positive of clock16 GND Ground17 RX3- Negative transmission data of pixel 318 RX3+ Positive transmission data of pixel 319 GND Ground20 NC No connection (2)21 SELLVDS Select LVDS data format (3)22 NC No connection (2)23 GND Ground24 GND Ground25 GND Ground26 VCC Power supply: +12V27 VCC Power supply: +12V28 VCC Power supply: +12V29 VCC Power supply: +12V30 VCC Power supply: +12VNote (1) Connector Part No.: FCI, 10041195-001 or compatibleNote (2) Reserved for internal use. Please leave it open.Note (3) High or OPEN: Normal, Ground: JEIDA LVDS formatPlease refer to 5.4 LVDS INTERFACE (Page 14)
