Haier LE24M600M80 User Manual Manual pdf 10 page image

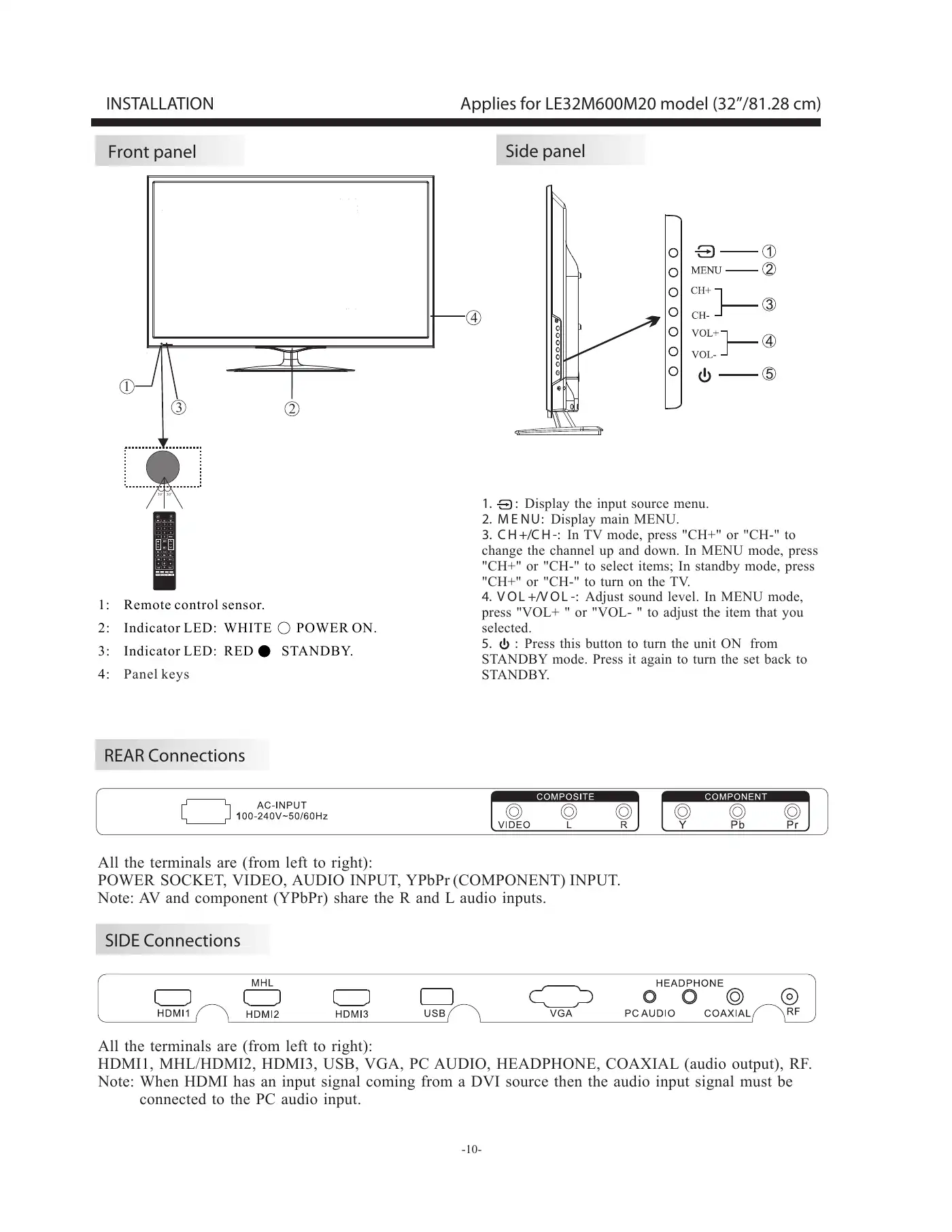

-10-Front panel Side panelREAR Connections1: Remote control sensor.2: Indicator LED: POWER ON.4:WHITE3: Indicator LED: RED STANDBY.Panel keys1. : Display the input source menu.2. M E NU: Display main MENU.3. C H +/C H -: In TV mode, press "CH+" or "CH-" tochange the channel up and down. In MENU mode, press"CH+" or "CH-" to select items; In standby mode, press"CH+" or "CH-" to turn on the TV.4. V OL +/V OL -: Adjust sound level. In MENU mode,press "VOL+ " or "VOL- " to adjust the item that youselected.5. : Press this button to turn the unit ON fromSTANDBY mode. Press it again to turn the set back toSTANDBY.30 301423SIDE ConnectionsAll the terminals are (from left to right):HDMI1, MHL/HDMI2, HDMI3, USB, VGA, PC AUDIO, HEADPHONE, .Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.COAXIAL (audio output), RFAll the terminals are (from left to right):POWER SOCKET, VIDEO, AUDIO INPUT, .Note: AV and component (YPbPr) share the R and L audio inputs.YPbPr INPUT(COMPONENT)INSTALLATION Applies for LE32M600M20 model (32”/81.28 cm)

/ 44

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

The Haier LE24M600M80 model is available in several screen sizes, including 24 inches (60.96 cm), 32 inches (81.28 cm), 39 inches (99.06 cm), 48 inches (121.92 cm), 50 inches (127 cm), and 55 inches (139.70 cm).

To assemble the base stand, refer to the instructions provided on page 6 of the user manual.

If the TV is not responding to the remote control, check the troubleshooting section on page 21 of the user manual for potential solutions.

It is advisable to disconnect the AC power cord from the AC outlet when the television receiver is not used for an extended period of time.

Do not block the ventilation holes on the back cover of the TV. Adequate ventilation is essential to prevent failure of electrical components.

You can connect your PC to the Haier LE24M600M80 TV using the VGA port for a digital connection.

If your TV does not turn on, check the power indicator LED. If it is red, the TV is in STANDBY mode. Press the power button on the remote control or the panel to turn the unit ON. If the LED is not lit, ensure that the TV is properly connected to a power source and that the power socket is functioning correctly.

You can connect a Blu-ray player to your Haier LE24M600M80 TV using one of the two HDMI ports located on the back of the TV. Simply use an HDMI cable to connect the Blu-ray player to one of the HDMI ports.

Yes, you can connect compatible mobile phones and tablets to the Haier LE24M600M80 TV using the HDMI2 port, which is MHL enabled. You will need a USB to HDMI cable to make the connection. Please check the documentation of your device for compatibility and connection details.

You can connect a Blu-ray player to your Haier LE24M600M80 TV using one of the three HDMI ports located on the back of the TV. Simply use an HDMI cable to connect the Blu-ray player to one of these ports.
