Haier LE24F33800 User Manual

Also see for LE19B13200: Energy guide Service manual Owner's manual Owner's manual

Language

Haier LE24F33800 User Manual Manual pdf 7 page image

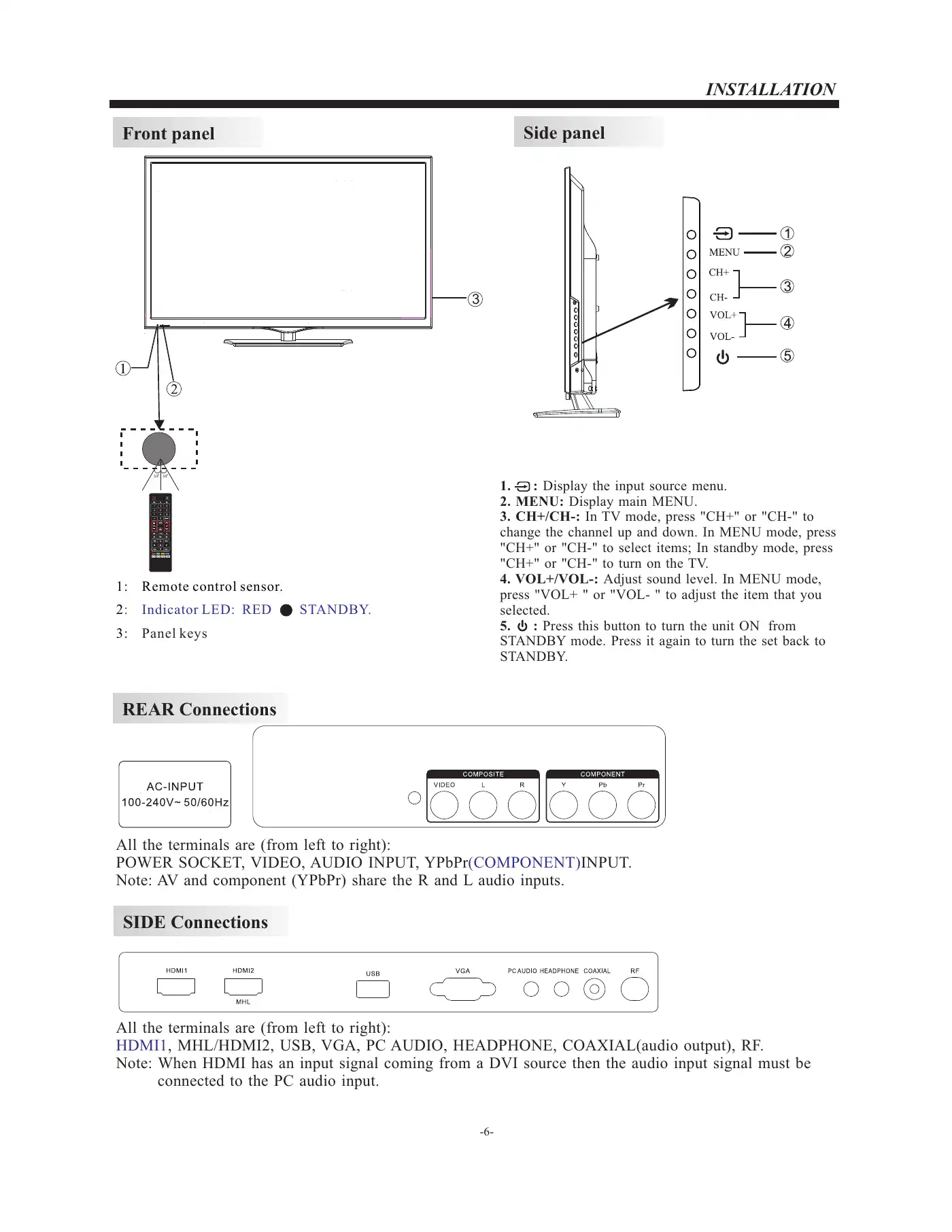

-6-INSTALLATIONFront panel Side panelREAR Connections1: Remote control sensor.23:: Indicator LED: RED STANDBY.Panel keys1. : Display the input source menu.2. MENU: Display main MENU.3. CH+/CH-: In TV mode, press "CH+" or "CH-" tochange the channel up and down. In MENU mode, press"CH+" or "CH-" to select items; In standby mode, press"CH+" or "CH-" to turn on the TV.4. VOL+/VOL-: Adjust sound level. In MENU mode,press "VOL+ " or "VOL- " to adjust the item that youselected.5. : Press this button to turn the unit ON fromSTANDBY mode. Press it again to turn the set back toSTANDBY.SIDE ConnectionsAll the terminals are (from left to right):, MHL/HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL(audio output), RF.Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.HDMI1All the terminals are (from left to right):POWER SOCKET, VIDEO, AUDIO INPUT, .Note: AV and component (YPbPr) share the R and L audio inputs.YPbPr INPUT(COMPONENT)3
