Haier LE24C2380a Service Manual

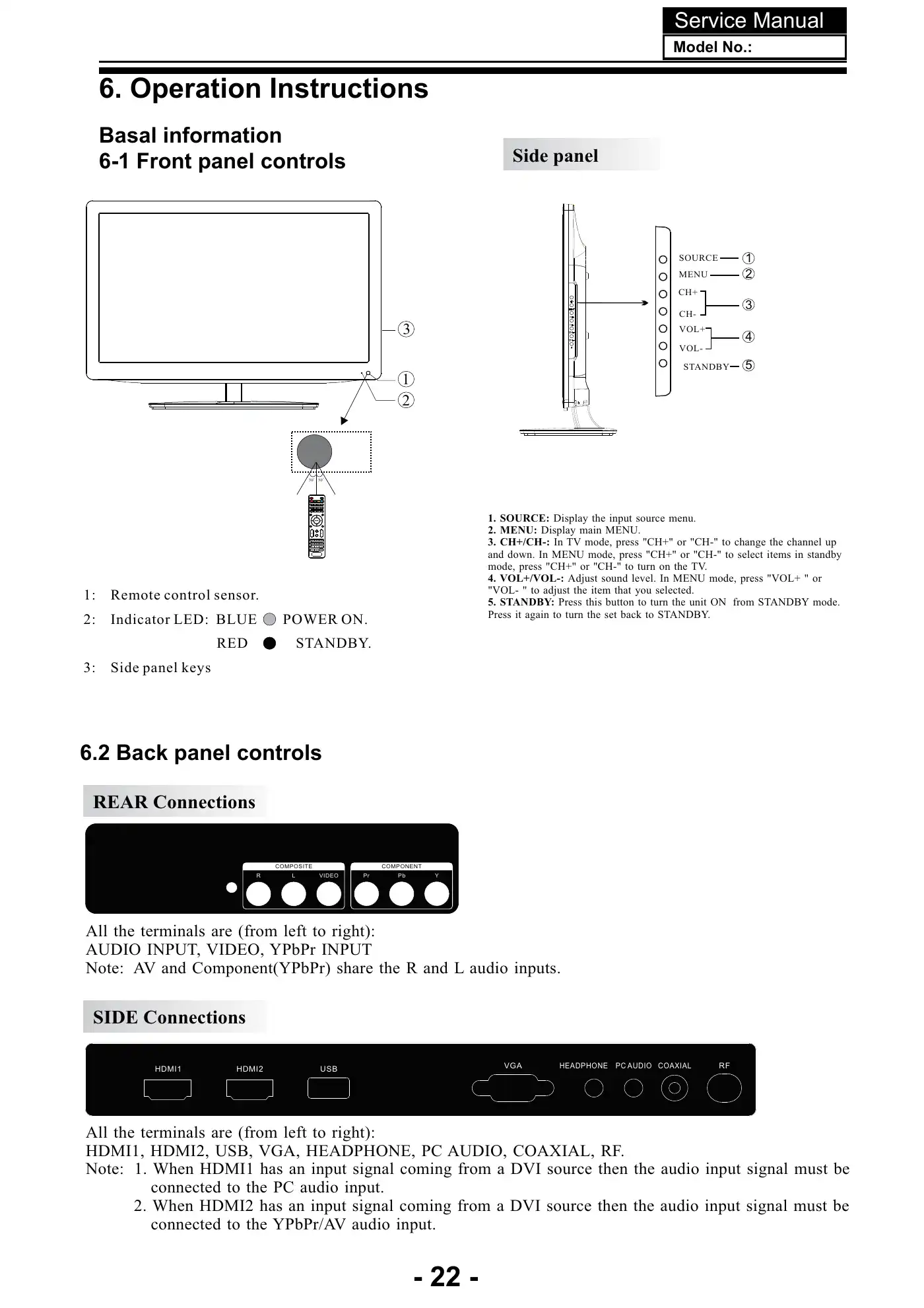

1: Remote control sensor.2: Indicator LED: BLUE POWER ON.RED STANDBY.3: Side panel keys1. SOURCE:2. MENU:3. CH+/CH-:4. VOL+/VOL-:5. STANDBY:Display the input source menu.Display main MENU.In TV mode, press "CH+" or "CH-" to change the channel upand down. In MENU mode, press "CH+" or "CH-" to select items in standbymode, press "CH+" or "CH-" to turn on the TV.Adjust sound level. In MENU mode, press "VOL+ " or"VOL- " to adjust the item that you selected.Press this button to turn the unit ON from STANDBY mode.Press it again to turn the set back to STANDBY.Side panelREAR ConnectionsAll the terminals are (from left to right):AUDIO INPUT, VIDEO, YPbPr INPUTNote: AV and Component(YPbPr) share the R and L audio inputs.SIDE ConnectionsAll the terminals are (from left to right):HDMI1, HDMI2, USB, VGA, HEADPHONE, PC AUDIO, COAXIAL, RF.Note: 1. When HDMI1 has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.2. When HDMI2 has an input signal coming from a DVI source then the audio input signal must beconnected to the YPbPr/AV audio input.VGA HEADPHONE RFPC AUDIO COAXIALHDMI1 HDMI2 USB30 30132SOURCEMENUCH+CH-VOL+VOL-STANDBY12345YPbPrCOMPONENTVIDEOR LCOMPOSITE6. Operation InstructionsBasal information6-1 Front panel controlsService ManualModel No.:6.2 Back panel controls- 22 -

/ 57
