Haier LE22S600 Service Manual

Contents
  1. Table of Contents2
  2. Chapter 1. General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble12
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions19
  7. Chapter 6. Operation Instructions21
  8. Chapter 7. Electrical Parts24
  9. Chapter 8. Measurements and Adjustments30
  10. Chapter 9. Trouble Shooting34
Haier LE22S600 Service Manual Manual pdf 38 page image

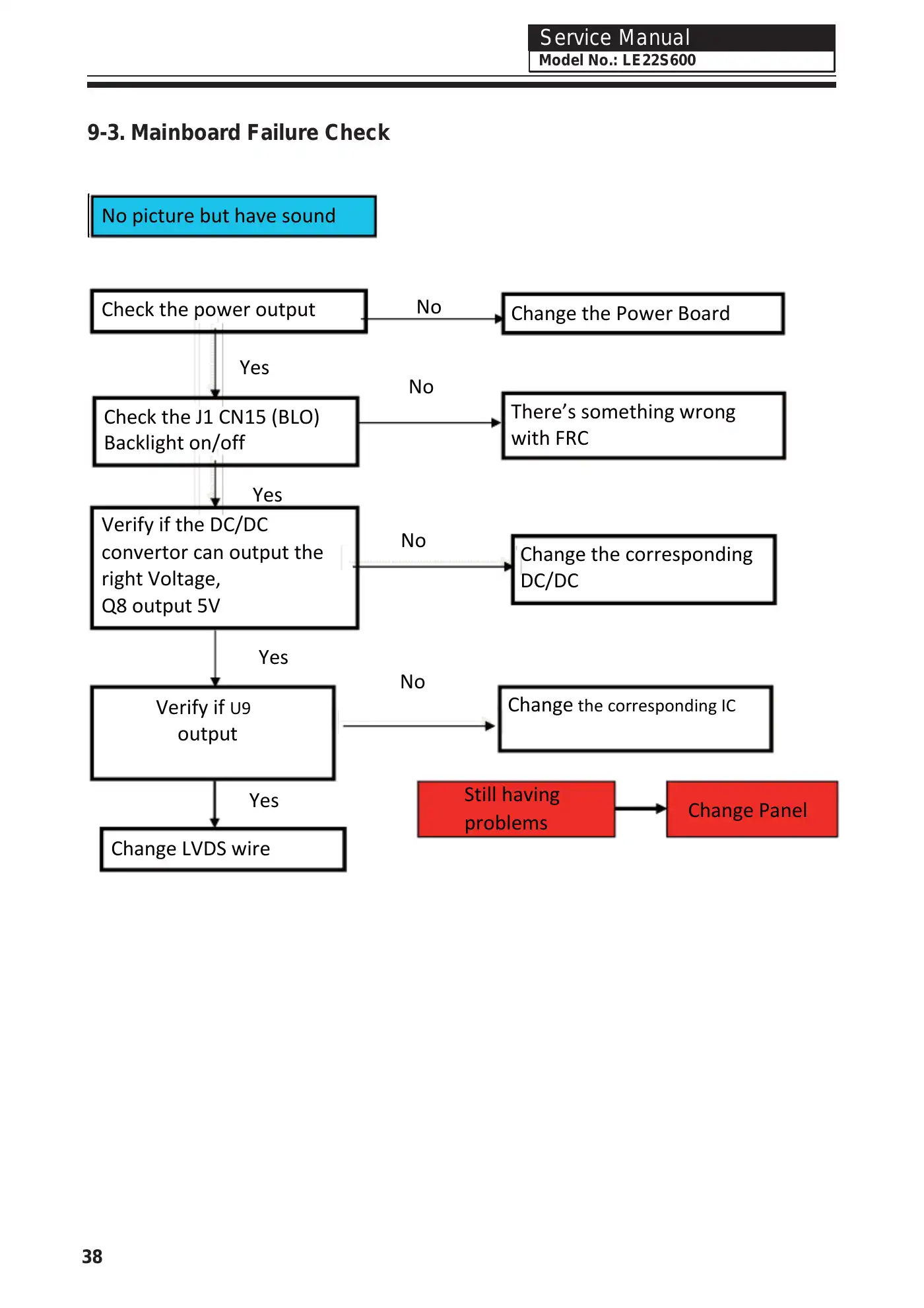

Service ManualModel No.: LE22S6009-3. Mainboard Failure CheckNo picture but have soundCheck the power output No Change the Power BoardYesCheck the J1 CN15 (BLO)Backlight on/offYesNoThere’s something wrongwith FRCVerify if the DC/DCconvertor can output theright Voltage,No Change the correspondingDC/DCQ8 output 5VYesNoVerify if U9outputChange the corresponding ICYes Still havingproblems Change PanelChange LVDS wire38
