Haier LE22S600 Service Manual

Contents

Table of Contents2

Chapter 1. General Information4

Chapter 2. Specification9

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 5. Installation Instructions19

Chapter 6. Operation Instructions21

Chapter 7. Electrical Parts24

Chapter 8. Measurements and Adjustments30

Chapter 9. Trouble Shooting34

Haier LE22S600 Service Manual Manual pdf 31 page image

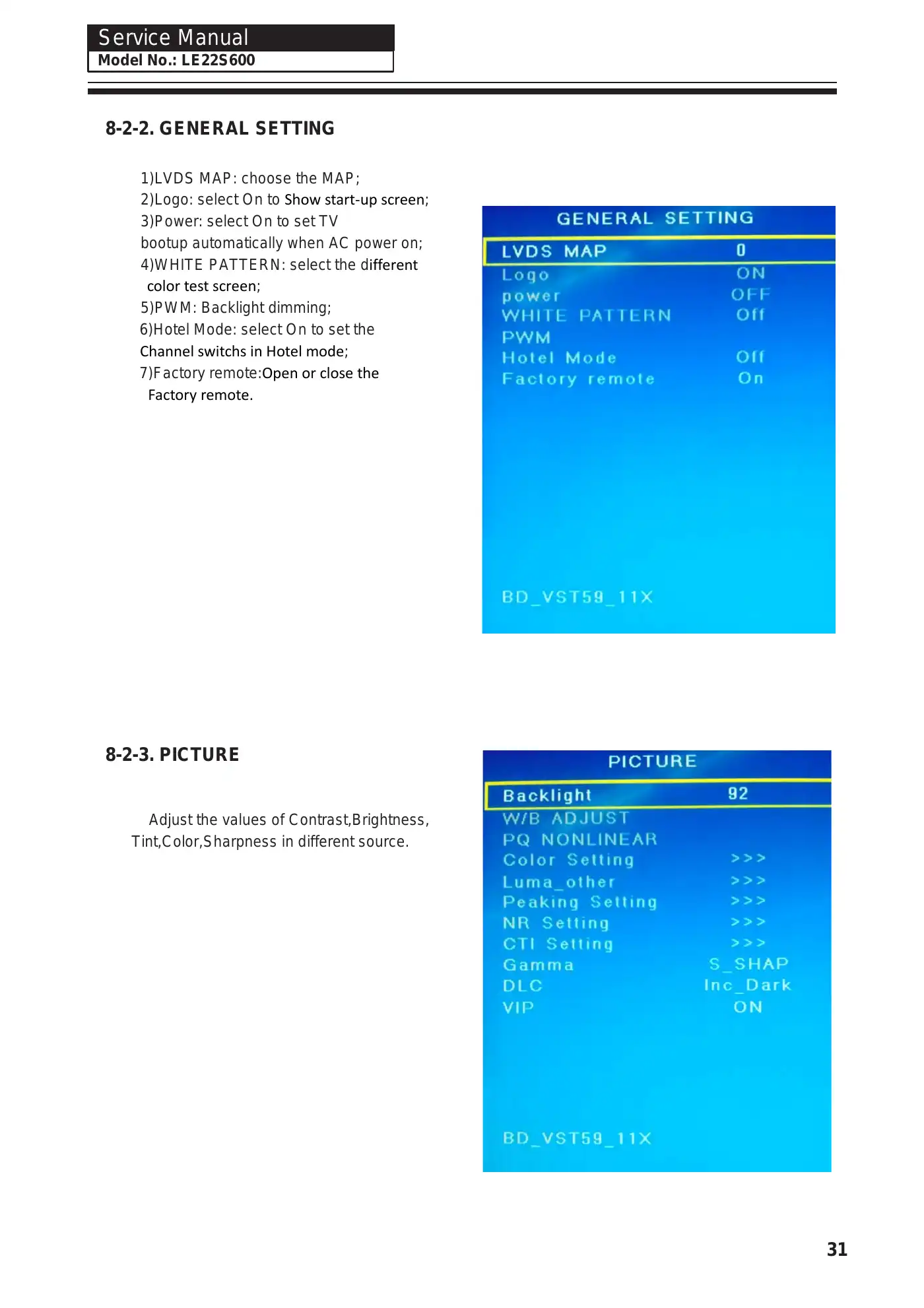

Service ManualModel No.: LE22S6008-2-2. GENERAL SETTING1)LVDS MAP: choose the MAP;2)Logo: select On to Show start-up screen;3)Power: select On to set TVbootup automatically when AC power on;4)WHITE PATTERN: select the differentcolor test screen;5)PWM: Backlight dimming;6)Hotel Mode: select On to set theChannel switchs in Hotel mode;7)Factory remote:Open or close theFactory remote.8-2-3. PICTUREAdjust the values of Contrast,Brightness,Tint,Color,Sharpness in different source.31
