Haier LE22S600 Service Manual

To set up your remote control, refer to Chapter 6, Section 6-3 of the service manual, which provides detailed instructions on 'Setting Up Your Remote Control'.

To prevent ESD damage, you should drain off any electrostatic charge on your body by touching a known earth ground before handling any semiconductor component or semiconductor-equipped assembly. Alternatively, you can wear a commercially available discharging wrist strap device, which should be removed before applying power to the unit under test. Additionally, place any removed electrical assembly equipped with ES devices on a conductive surface such as aluminum foil to prevent electrostatic charge buildup or exposure of the assembly.

To improve picture quality in a poor signal area, use a signal amplifier (not supplied).

To use the remote control for the Haier LE22S600 TV, aim it towards the remote sensor on the TV. The remote control has various buttons for different functions, such as power, channel selection, volume control, and more.

The 'FREEZE' button on the Haier LE22S600 remote control is used to pause the current program or image on the screen.

You can adjust the sound settings by modifying the values of Sound Mode, Volume Curve, and Audio Output. These settings can be adjusted for different sources to optimize your audio experience.

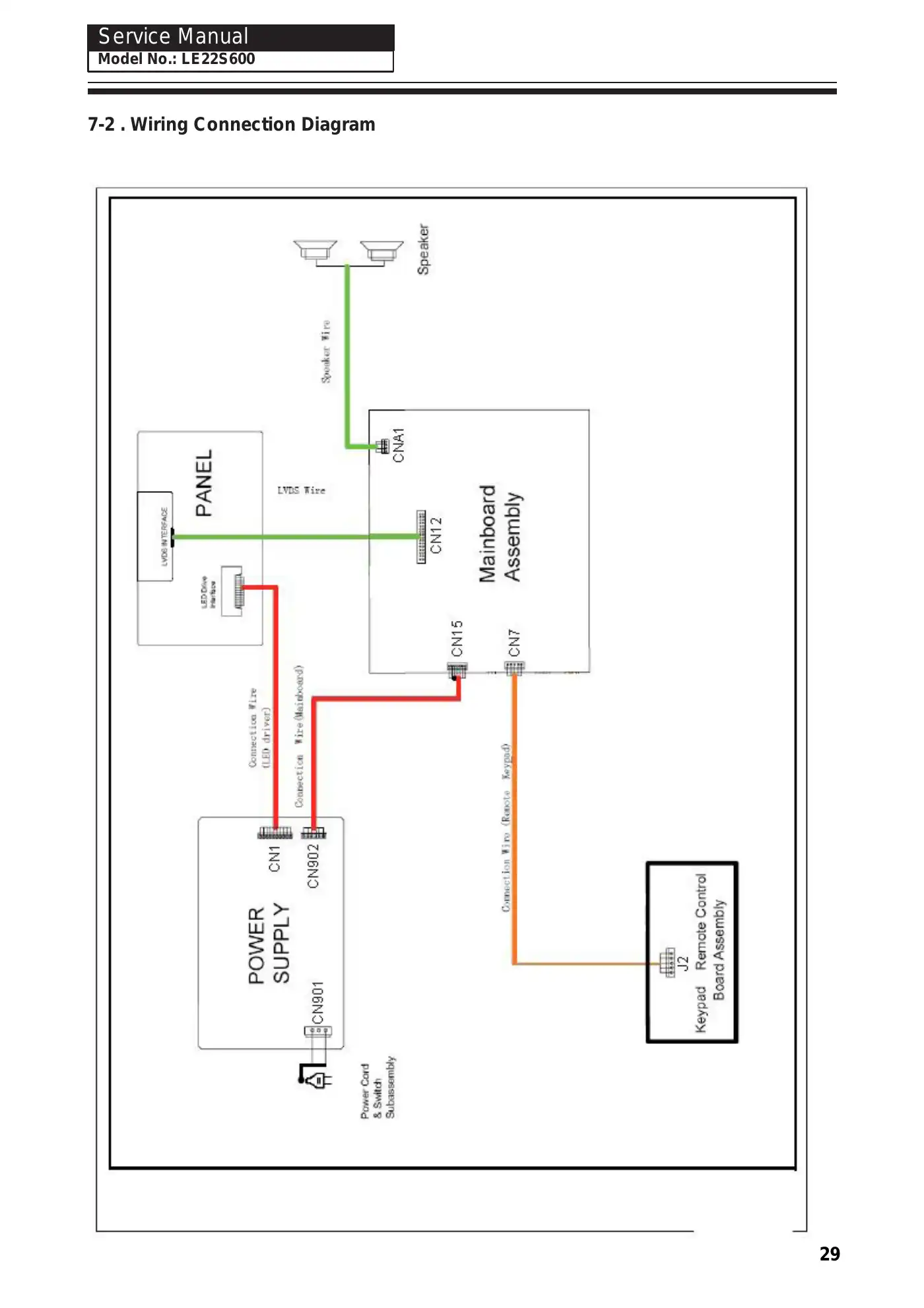

First, verify if the power has a 5Vstb output. If not, change the power supply. If yes, check if CN17 pin1/2 has a 5V input. If not, change the power board. If yes, check if CN17 pin1/2 has a 12V input. If not, change the power board. If yes, verify if the DC/DC converters have the right output. If not, change the corresponding DC/DC converter. If yes, change the software. If you are still having problems, change the mainboard.

First, verify if the same problem exists on other channels. If the issue persists on the same channel, check the picture and sound system of that channel. If the problem is still not resolved, change the channel to the correct sound system (PAL-BG SECAM/L) and refer to the relative instructions in the manual for color adjustment. If you still have problems, update the software and reboot the device, or consider changing the mainboard.

To troubleshoot a black and white display issue, follow these steps: 1. Check if the problem occurs on other channels. 2. If the issue is specific to one channel, check the picture and sound system of that channel. 3. Change the channel to the correct sound system (PAL-BG SECAM/L) and refer to the manual for color adjustment. 4. If the problem persists, update the software and reboot the device. 5. If none of these steps resolve the issue, consider changing the mainboard.

This issue could be due to a problem with the eyewinker inside the polarizer. It might be caused by a tine or rigidity issue.
