Haier LE22S600 Service Manual

Contents
  1. Table of Contents2
  2. Chapter 1. General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble12
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions19
  7. Chapter 6. Operation Instructions21
  8. Chapter 7. Electrical Parts24
  9. Chapter 8. Measurements and Adjustments30
  10. Chapter 9. Trouble Shooting34

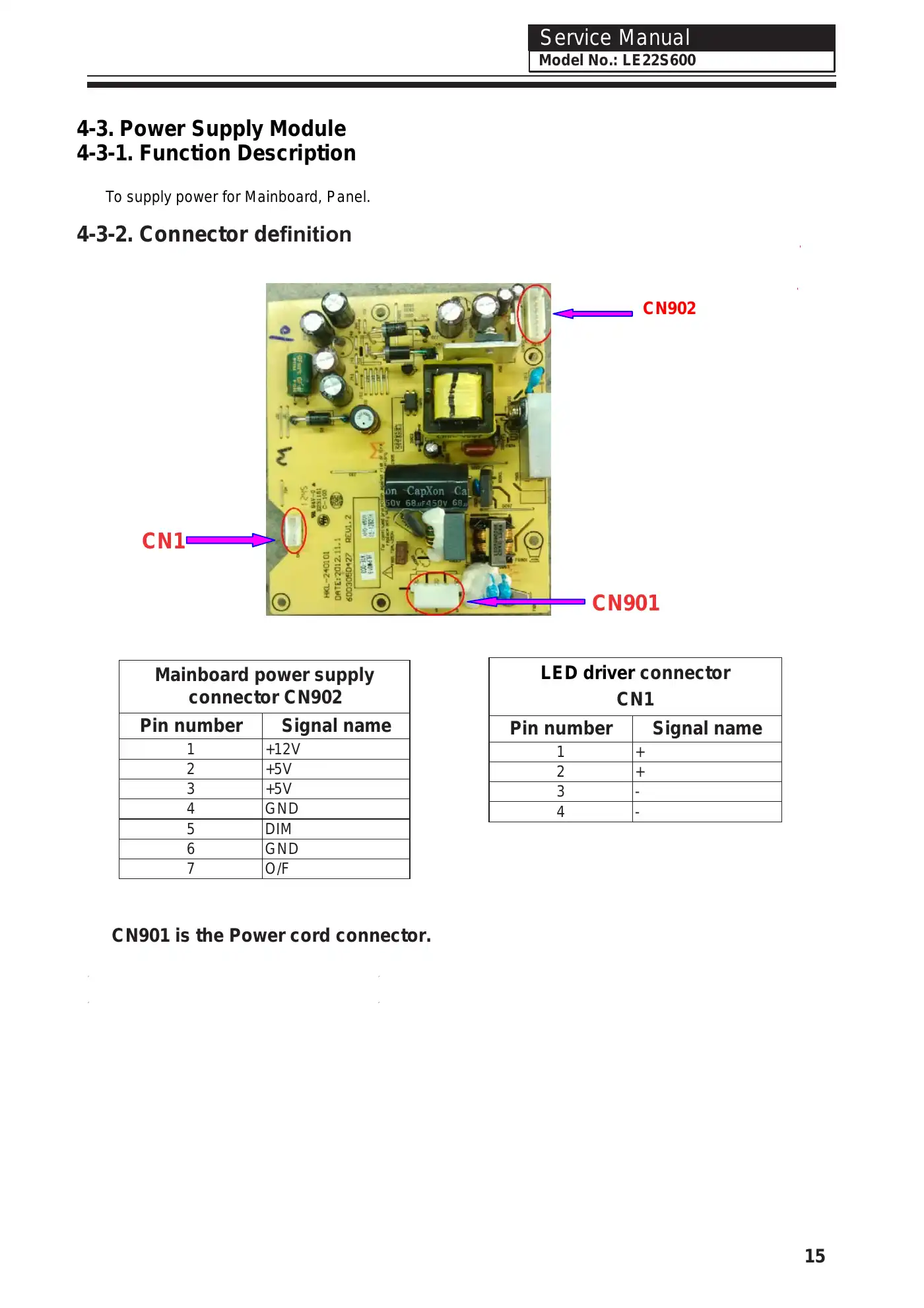

Haier LE22S600 Service Manual Manual pdf 16 page image
LED driver connectorCN1Pin number Signal name1 +2 +3 -4 -Mainboard power supplyconnector CN902Pin number Signal name1 +12V2 +5V3 +5V4 GND5 DIM6 GND7 O/FService ManualModel No.: LE22S6004-3. Power Supply Module4-3-1. Function DescriptionTo supply power for Mainboard, Panel.4-3-2. Connector definitionCN902CN1CN901CN901 is the Power cord connector.15
