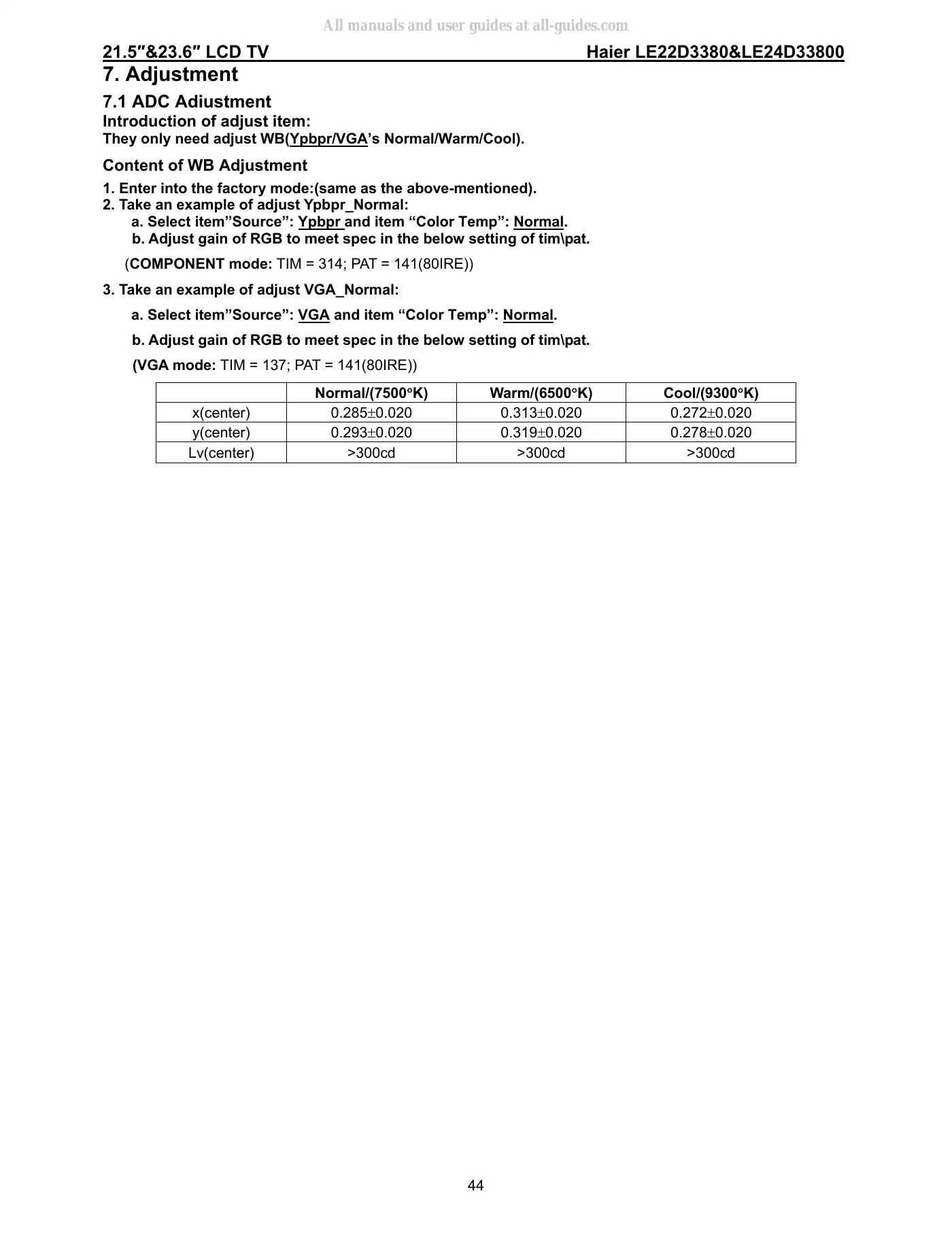

21.5″&23.6″ LCD TV Haier LE22D3380&LE24D33800447. Adjustment7.1 ADC AdiustmentIntroduction of adjust item:They only need adjust WB(Ypbpr/VGA’s Normal/Warm/Cool).Content of WB Adjustment1. Enter into the factory mode:(same as the above-mentioned).2. Take an example of adjust Ypbpr_Normal:a. Select item”Source”: Ypbpr and item “Color Temp”: Normal.b. Adjust gain of RGB to meet spec in the below setting of tim\pat.(COMPONENT mode: TIM = 314; PAT = 141(80IRE))3. Take an example of adjust VGA_Normal:a. Select item”Source”: VGA and item “Color Temp”: Normal.b. Adjust gain of RGB to meet spec in the below setting of tim\pat.(VGA mode: TIM = 137; PAT = 141(80IRE))Normal/(7500K) Warm/(6500K) Cool/(9300K)x(center) 0.2850.020 0.3130.020 0.2720.020y(center) 0.2930.020 0.3190.020 0.2780.020Lv(center) >300cd >300cd >300cdAll manuals and user guides at all-guides.com
