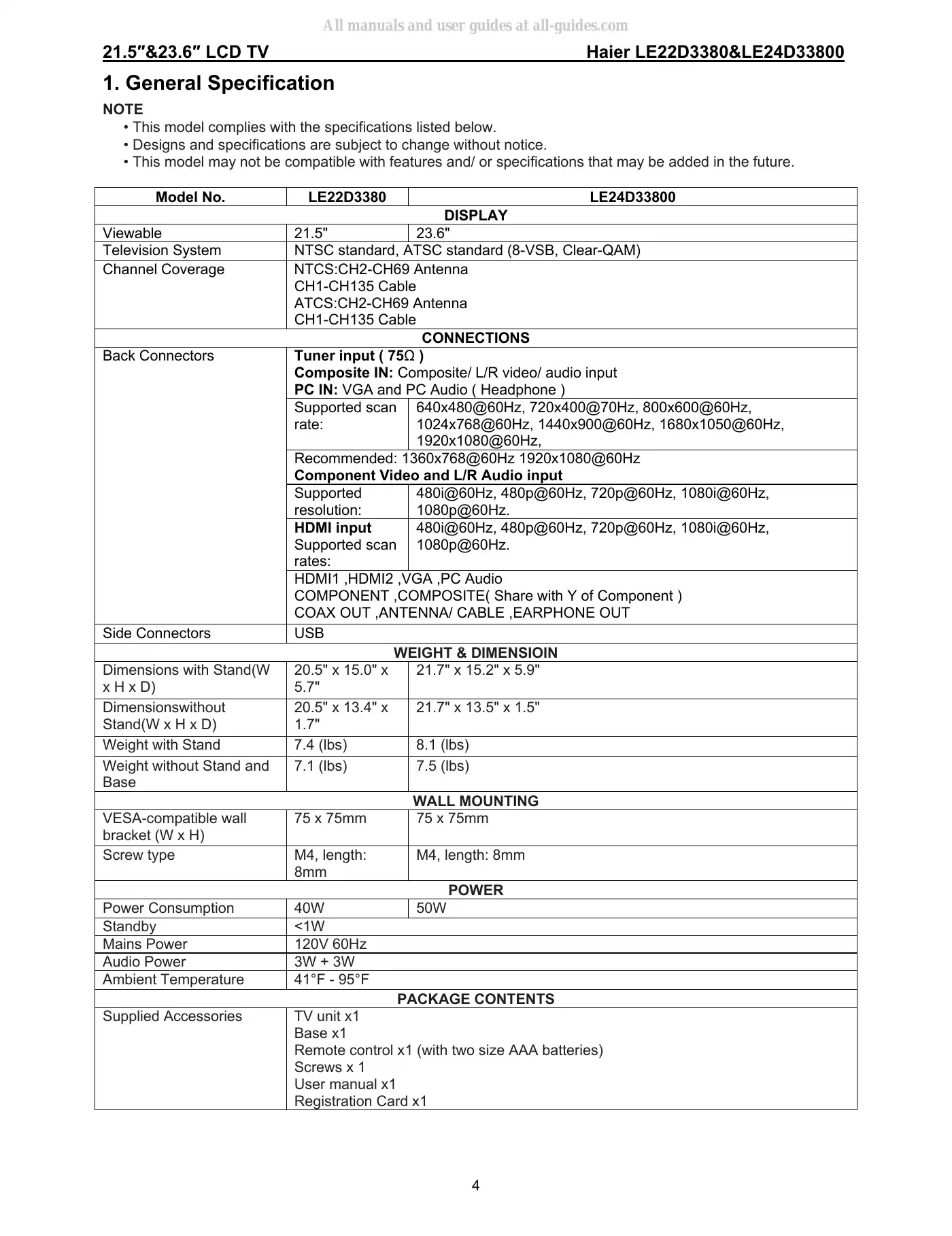

21.5″&23.6″ LCD TV Haier LE22D3380&LE24D3380041. General SpecificationNOTE• This model complies with the specifications listed below.• Designs and specifications are subject to change without notice.• This model may not be compatible with features and/ or specifications that may be added in the future.Model No. LE22D3380 LE24D33800DISPLAYViewable 21.5" 23.6"Television System NTSC standard, ATSC standard (8-VSB, Clear-QAM)Channel Coverage NTCS:CH2-CH69 AntennaCH1-CH135 CableATCS:CH2-CH69 AntennaCH1-CH135 CableCONNECTIONSBack Connectors Tuner input ( 75Ω )Composite IN: Composite/ L/R video/ audio inputPC IN: VGA and PC Audio ( Headphone )Supported scanrate:640x480@60Hz, 720x400@70Hz, 800x600@60Hz,1024x768@60Hz, 1440x900@60Hz, 1680x1050@60Hz,1920x1080@60Hz,Recommended: 1360x768@60Hz 1920x1080@60HzComponent Video and L/R Audio inputSupportedresolution:480i@60Hz, 480p@60Hz, 720p@60Hz, 1080i@60Hz,1080p@60Hz.HDMI inputSupported scanrates:480i@60Hz, 480p@60Hz, 720p@60Hz, 1080i@60Hz,1080p@60Hz.HDMI1 ,HDMI2 ,VGA ,PC AudioCOMPONENT ,COMPOSITE( Share with Y of Component )COAX OUT ,ANTENNA/ CABLE ,EARPHONE OUTSide Connectors USBWEIGHT & DIMENSIOINDimensions with Stand(Wx H x D)20.5" x 15.0" x5.7"21.7" x 15.2" x 5.9"DimensionswithoutStand(W x H x D)20.5" x 13.4" x1.7"21.7" x 13.5" x 1.5"Weight with Stand 7.4 (lbs) 8.1 (lbs)Weight without Stand andBase7.1 (lbs) 7.5 (lbs)WALL MOUNTINGVESA-compatible wallbracket (W x H)75 x 75mm 75 x 75mmScrew type M4, length:8mmM4, length: 8mmPOWERPower Consumption 40W 50WStandby <1WMains Power 120V 60HzAudio Power 3W + 3WAmbient Temperature 41°F - 95°FPACKAGE CONTENTSSupplied Accessories TV unit x1Base x1Remote control x1 (with two size AAA batteries)Screws x 1User manual x1Registration Card x1All manuals and user guides at all-guides.com
