Haier LE22C700F Service Manual

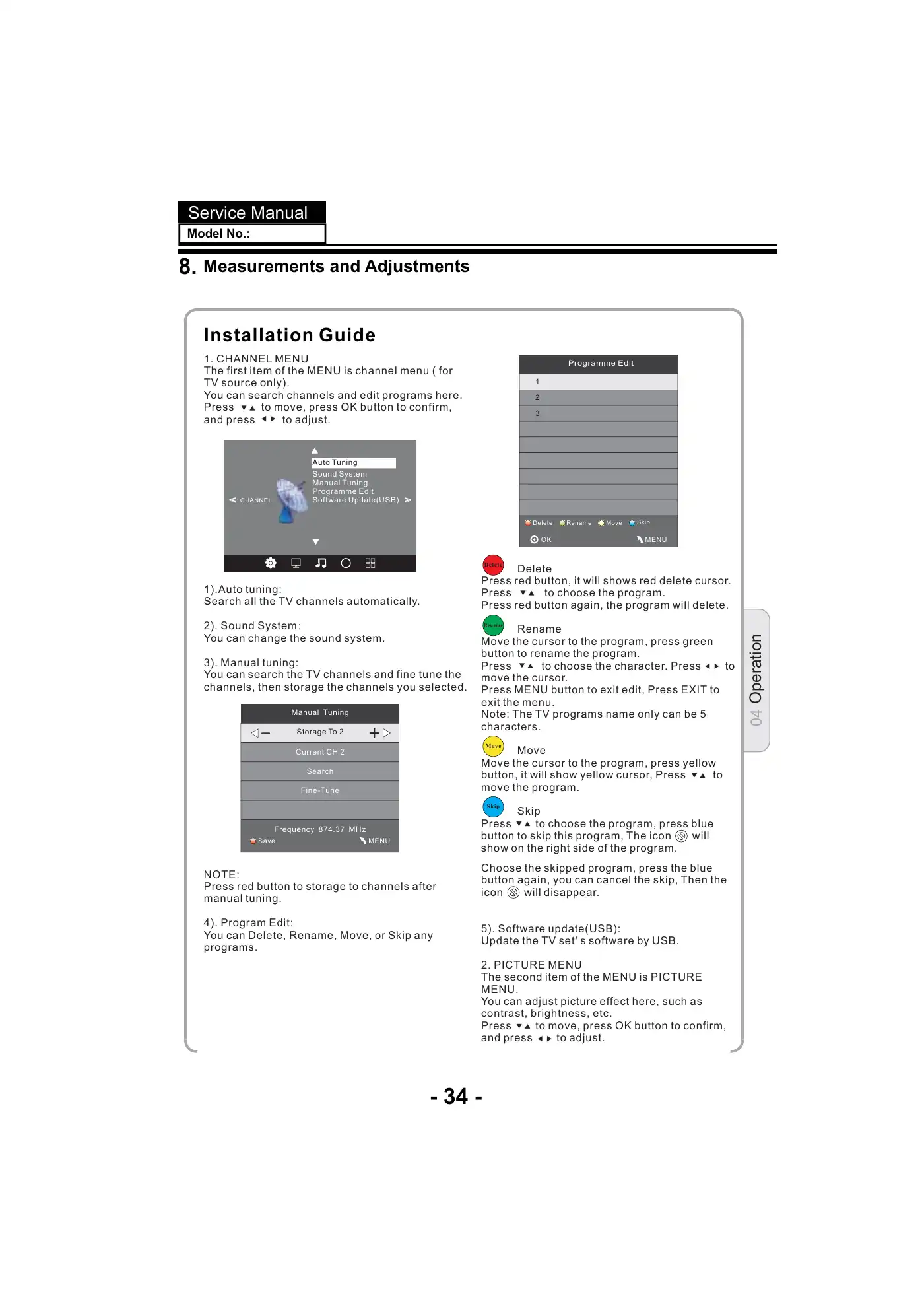

Installation Guide1. CHANNEL MENUThe first item of the MENU is channel menu ( forTV source only).You can search channels and edit programs here.Press to move, press OK button to confirm,and press to adjust.1).Auto tuning:Search all the TV channels automatically.2). Sound System：You can change the sound system.3). Manual tuning:You can search the TV channels and fine tune thechannels, then storage the channels you selected.DeletePress red button, it will shows red delete cursor.Press to choose the program.Press red button again, the program will delete.RenameMove the cursor to the program, press greenbutton to rename the program.Press to choose the character. Press tomove the cursor.Press MENU button to exit edit, Press EXIT toexit the menu.Note: The TV programs name only can be 5characters.MoveMove the cursor to the program, press yellowbutton, it will show yellow cursor, Press tomove the program.SkipPress to choose the program, press bluebutton to skip this program, The icon willshow on the right side of the program.DeleteRenameMoveSkipChoose the skipped program, press the bluebutton again, you can cancel the skip, Then theicon will disappear.5). Software update(USB):Update the TV set' s software by USB.2. PICTURE MENUThe second item of the MENU is PICTUREMENU.You can adjust picture effect here, such ascontrast, brightness, etc.Press to move, press OK button to confirm,and press to adjust.Sound SystemManual TuningProgramme EditSoftware Update(USB)<< >>CHANNELAuto Tuning__ ++Manual TuningStorage To 2Current CH 2SearchFine-TuneFrequency 874.37 MHzSave MENUNOTE:Press red button to storage to channels aftermanual tuning.4). Program Edit:You can Delete, Rename, Move, or Skip anyprograms.Programme Edit123Delete Rename Move SkipMENUOK04 Operation8. Measurements and AdjustmentsService ManualModel No.:- 34 -

/ 56
