Haier LE22C700F Service Manual

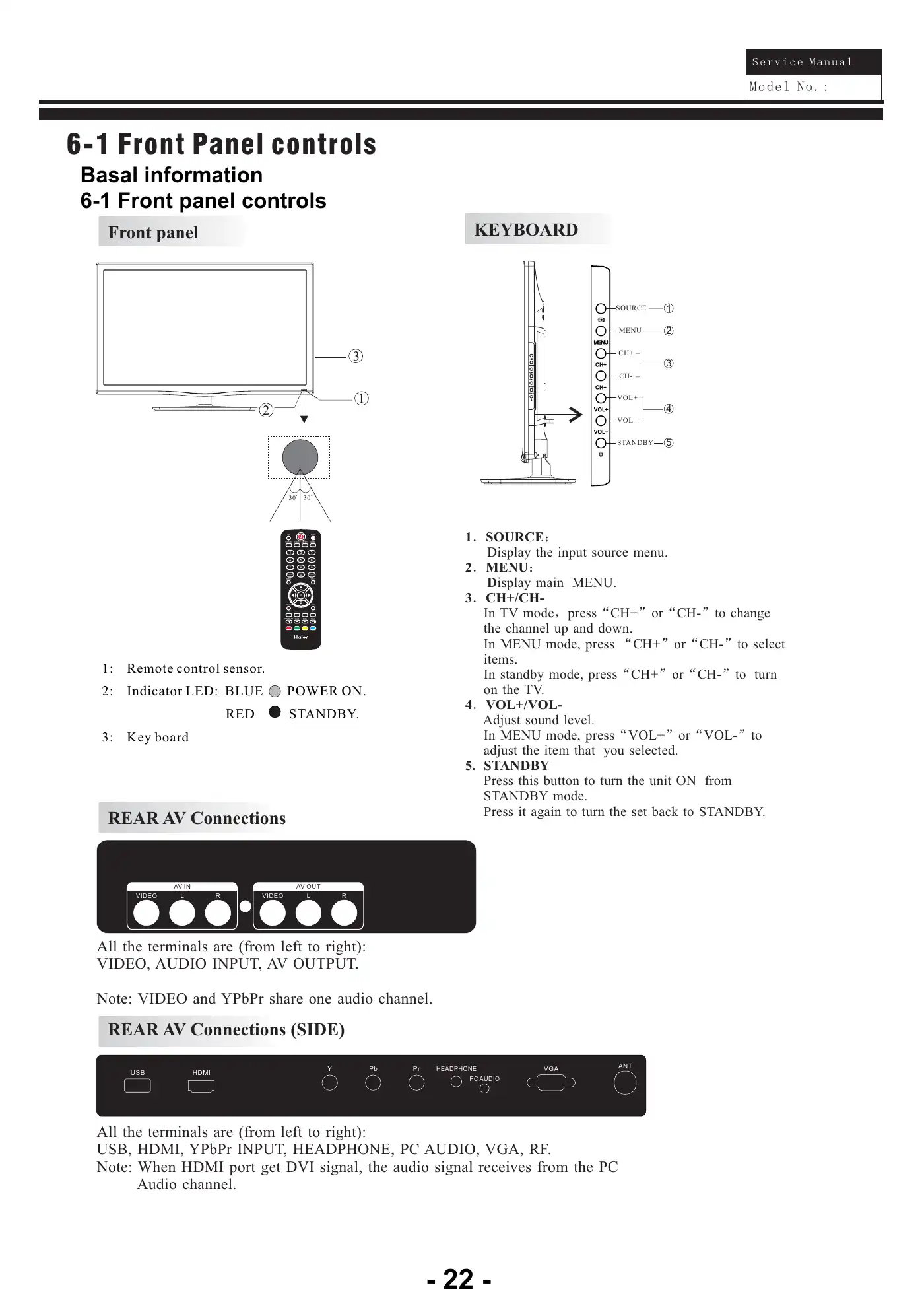

Front panel KEYBOARD1: Remote control sensor.2: Indicator LED: BLUE POWER ON.RED STANDBY.3: Key board1 SOURCE2 MENUD3 CH+/CH-4 VOL+/VOL-5. STANDBY．：．：．， “ ” “ ”“ ” “ ”“ ” “ ”．“ ” “ ”Display the input source menu.isplay main MENU.In TV mode press CH+ or CH- to changethe channel up and down.In MENU mode, press CH+ or CH- to selectitems.In standby mode, press CH+ or CH- to turnon the TV.Adjust sound level.In MENU mode, press VOL+ or VOL- toadjust the item that you selected.Press this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.30 30REAR AV ConnectionsAll the terminals are (from left to right):, AUDIO INPUT, .VIDEO AV OUTPUTNote: VIDEO and YPbPr share one audio channel.REAR AV Connections (SIDE)All the terminals are (from left to right):USB, HDMI, YPbPr INPUT, HEADPHONE, PC AUDIO, VGA, RF.Note: When HDMI port get DVI signal, the audio signal receives from the PCAudio channel.MENUCH+CH-VOL+VOL-2SOURCE 134STANDBY 5312USB HDMI Y Pb Pr HEADPHONEPC AUDIOVGA ANTVIDEO L RAV INVIDEO L RAV OUTUSB MUTEPICTURE AUDIO ASPECTRECALLSLEEPMENU INPUTDISPLAYCH- CH+CH.LIST EXITPLAY/PAUSE STOP PREV NEXTOKVOL- VOL+Service ManualModel No.:6-1 Front Panel controlsBasal information6-1 Front panel controls- 22 -

/ 56
