Haier LE22C700F Service Manual

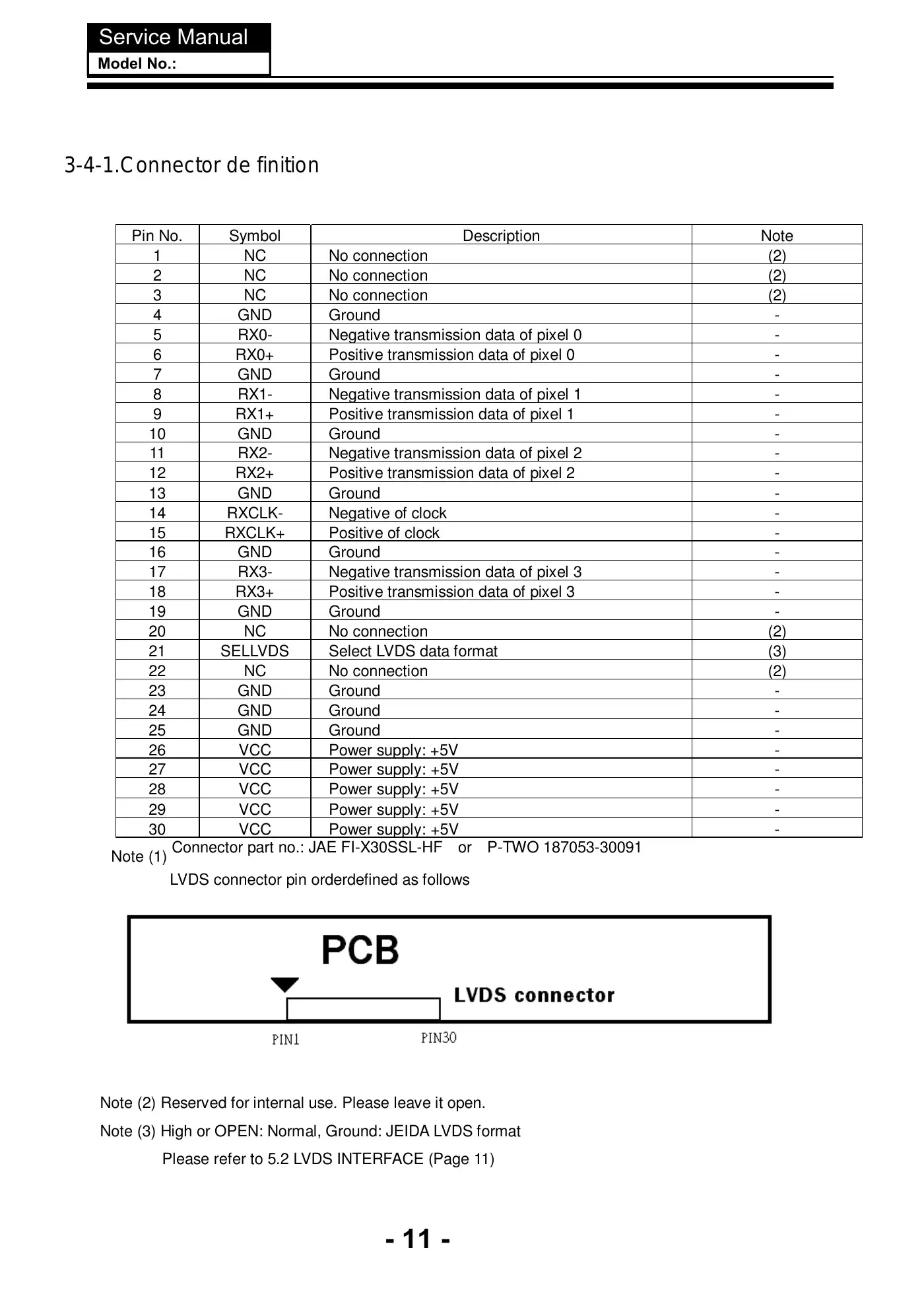

Service ManualModel No.:- 11 -3-4-1.Connector de finitionPin No. Symbol Description Note1 NC No connection (2)2 NC No connection (2)3 NC No connection (2)4 GND Ground -5 RX0- Negative transmission data of pixel 0 -6 RX0+ Positive transmission data of pixel 0 -7 GND Ground -8 RX1- Negative transmission data of pixel 1 -9 RX1+ Positive transmission data of pixel 1 -10 GND Ground -11 RX2- Negative transmission data of pixel 2 -12 RX2+ Positive transmission data of pixel 2 -13 GND Ground -14 RXCLK- Negative of clock -15 RXCLK+ Positive of clock -16 GND Ground -17 RX3- Negative transmission data of pixel 3 -18 RX3+ Positive transmission data of pixel 3 -19 GND Ground -20 NC No connection (2)21 SELLVDS Select LVDS data format (3)22 NC No connection (2)23 GND Ground -24 GND Ground -25 GND Ground -26 VCC Power supply: +5V -27 VCC Power supply: +5V -28 VCC Power supply: +5V -29 VCC Power supply: +5V -30 VCC Power supply: +5V -Note (1) Connector part no.: JAE FI-X30SSL-HF or P-TWO 187053-30091LVDS connector pin orderdefined as followsNote (2) Reserved for internal use. Please leave it open.Note (3) High or OPEN: Normal, Ground: JEIDA LVDS formatPlease refer to 5.2 LVDS INTERFACE (Page 11)

/ 56
