Haier LE22C1380 Owner's Manual

Also see for LE19C1320:

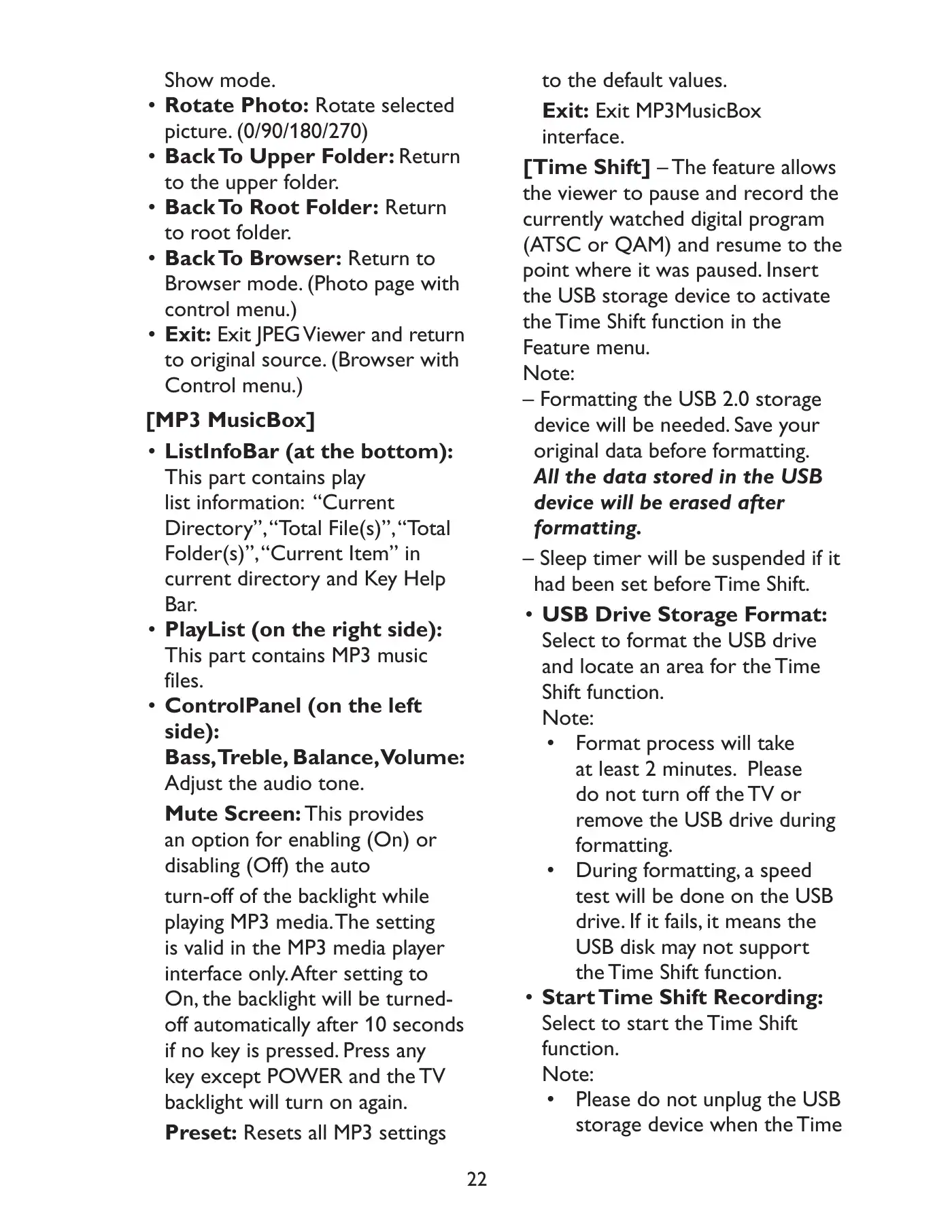

22Show mode.• Rotate Photo: Rotate selectedpicture. (0/90/180/270)• Back To Upper Folder: Returnto the upper folder.• Back To Root Folder: Returnto root folder.• Back To Browser: Return toBrowser mode. (Photo page withcontrol menu.)• Exit: Exit JPEG Viewer and returnto original source. (Browser withControl menu.)[MP3 MusicBox]• ListInfoBar (at the bottom):This part contains playlist information: “CurrentDirectory”, “Total File(s)”, “TotalFolder(s)”, “Current Item” incurrent directory and Key HelpBar.• PlayList (on the right side):This part contains MP3 musicfiles.• ControlPanel (on the leftside):Bass,Treble, Balance,Volume:Adjust the audio tone.Mute Screen: This providesan option for enabling (On) ordisabling (Off) the autoturn-off of the backlight whileplaying MP3 media. The settingis valid in the MP3 media playerinterface only. After setting toOn, the backlight will be turned-off automatically after 10 secondsif no key is pressed. Press anykey except POWER and the TVbacklight will turn on again.Preset: Resets all MP3 settingsto the default values.Exit: Exit MP3MusicBoxinterface.[Time Shift] – The feature allowsthe viewer to pause and record thecurrently watched digital program(ATSC or QAM) and resume to thepoint where it was paused. Insertthe USB storage device to activatethe Time Shift function in theFeature menu.Note:– Formatting the USB 2.0 storagedevice will be needed. Save youroriginal data before formatting.All the data stored in the USBdevice will be erased afterformatting.– Sleep timer will be suspended if ithad been set before Time Shift.• USB Drive Storage Format:Select to format the USB driveand locate an area for the TimeShift function.Note:• Format process will takeat least 2 minutes. Pleasedo not turn off the TV orremove the USB drive duringformatting.• During formatting, a speedtest will be done on the USBdrive. If it fails, it means theUSB disk may not supportthe Time Shift function.• Start Time Shift Recording:Select to start the Time Shiftfunction.Note:• Please do not unplug the USBstorage device when the Time

/ 34

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

When replacing the batteries, ensure you use the same or equivalent type to avoid the danger of explosion. Additionally, do not expose the batteries to excessive heat, such as direct sunlight or fire.

If the TV causes harmful interference to radio or television reception, you can try the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Do not defeat the safety purpose of the polarized or grounding-type plug.

For servicing, refer to the operating instructions provided. Do not attempt any servicing other than what is contained in the operating instructions unless you are qualified to do so. To reduce the risk of electric shock, only qualified service personnel should perform servicing.

After June 12, 2009, you will need a converter box to receive full-power over-the-air broadcasts with an antenna due to the nation's transition to digital broadcasting. Your analog-only TV should continue to work with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products.

The remote control of the Haier LE22C1380 TV requires 2 batteries of Type AAA 1.5V.

To change the input source on the Haier LE22C1380 TV, press the INPUT button on the back panel control.

To change the picture mode, press the 'PICTURE' button on the remote control. You can cycle through the available modes: Vivid, Standard, Eco, Movie, or Personal.

To set the TV to automatically turn off, press the 'SLEEP' button on the remote control. You can choose from preset times: off / 5 / 10 / 15 / 30 / 60 / 90 / 120 / 180 / 240 mins.

The supported scan rates for the PC IN connection on the LE22C1380 model are 640x480@60/72/75Hz, 720x400@70Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1680x1050@60Hz, and 1920x1080@60Hz. The recommended resolution is 1920x1080@60Hz.
