Haier LE19C1320 Service Manual

Also see for LE19C1320: Owner's manual Owner's manual Owner's manual

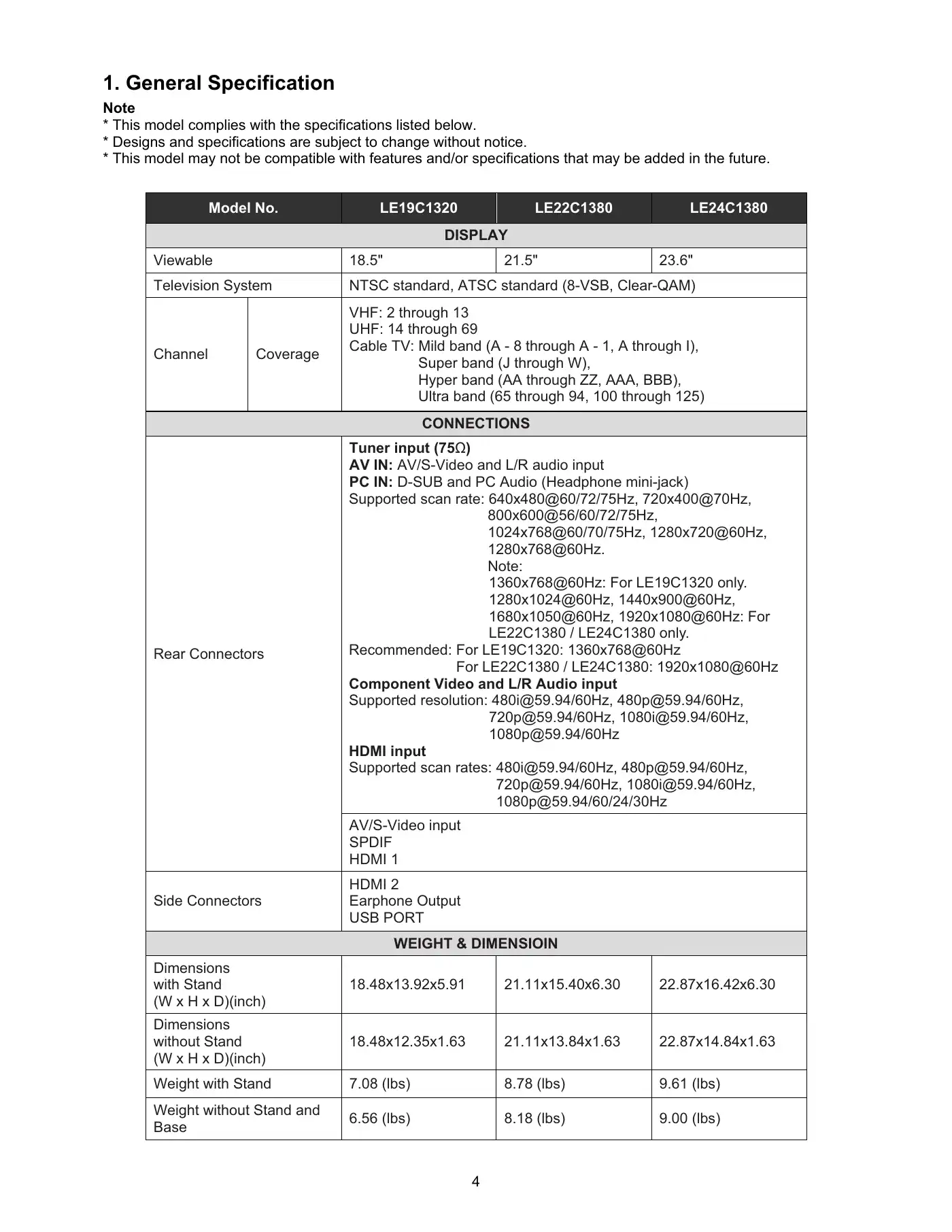

41. General SpecificationNote* This model complies with the specifications listed below.* Designs and specifications are subject to change without notice.* This model may not be compatible with features and/or specifications that may be added in the future.Model No. LE19C1320 LE22C1380 LE24C1380DISPLAYViewable 18.5" 21.5" 23.6"Television System NTSC standard, ATSC standard (8-VSB, Clear-QAM)Channel CoverageVHF: 2 through 13UHF: 14 through 69Cable TV: Mild band (A - 8 through A - 1, A through I),Super band (J through W),Hyper band (AA through ZZ, AAA, BBB),Ultra band (65 through 94, 100 through 125)CONNECTIONSRear ConnectorsTuner input (75)AV IN: AV/S-Video and L/R audio inputPC IN: D-SUB and PC Audio (Headphone mini-jack)Supported scan rate: 640x480@60/72/75Hz, 720x400@70Hz,800x600@56/60/72/75Hz,1024x768@60/70/75Hz, 1280x720@60Hz,1280x768@60Hz.Note:1360x768@60Hz: For LE19C1320 only.1280x1024@60Hz, 1440x900@60Hz,1680x1050@60Hz, 1920x1080@60Hz: ForLE22C1380 / LE24C1380 only.Recommended: For LE19C1320: 1360x768@60HzFor LE22C1380 / LE24C1380: 1920x1080@60HzComponent Video and L/R Audio inputSupported resolution: 480i@59.94/60Hz, 480p@59.94/60Hz,720p@59.94/60Hz, 1080i@59.94/60Hz,1080p@59.94/60HzHDMI inputSupported scan rates: 480i@59.94/60Hz, 480p@59.94/60Hz,720p@59.94/60Hz, 1080i@59.94/60Hz,1080p@59.94/60/24/30HzAV/S-Video inputSPDIFHDMI 1Side ConnectorsHDMI 2Earphone OutputUSB PORTWEIGHT & DIMENSIOINDimensionswith Stand(W x H x D)(inch)18.48x13.92x5.91 21.11x15.40x6.30 22.87x16.42x6.30Dimensionswithout Stand(W x H x D)(inch)18.48x12.35x1.63 21.11x13.84x1.63 22.87x14.84x1.63Weight with Stand 7.08 (lbs) 8.78 (lbs) 9.61 (lbs)Weight without Stand andBase 6.56 (lbs) 8.18 (lbs) 9.00 (lbs)

/ 74
