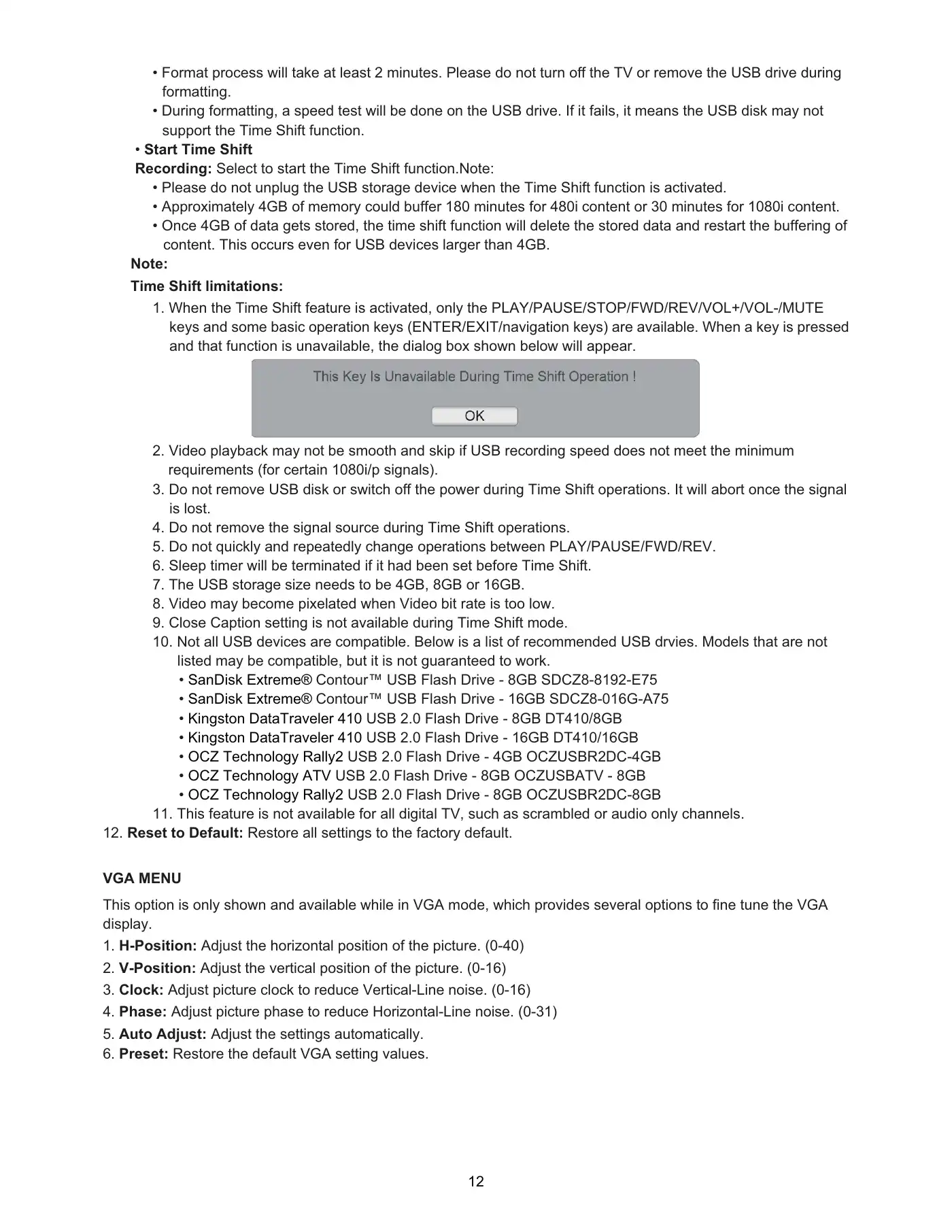

12• Format process will take at least 2 minutes. Please do not turn off the TV or remove the USB drive duringformatting.• During formatting, a speed test will be done on the USB drive. If it fails, it means the USB disk may notsupport the Time Shift function.• Start Time ShiftRecording: Select to start the Time Shift function.Note:• Please do not unplug the USB storage device when the Time Shift function is activated.• Approximately 4GB of memory could buffer 180 minutes for 480i content or 30 minutes for 1080i content.• Once 4GB of data gets stored, the time shift function will delete the stored data and restart the buffering ofcontent. This occurs even for USB devices larger than 4GB.Note:Time Shift limitations:1. When the Time Shift feature is activated, only the PLAY/PAUSE/STOP/FWD/REV/VOL+/VOL-/MUTEkeys and some basic operation keys (ENTER/EXIT/navigation keys) are available. When a key is pressedand that function is unavailable, the dialog box shown below will appear.2. Video playback may not be smooth and skip if USB recording speed does not meet the minimumrequirements (for certain 1080i/p signals).3. Do not remove USB disk or switch off the power during Time Shift operations. It will abort once the signalis lost.4. Do not remove the signal source during Time Shift operations.5. Do not quickly and repeatedly change operations between PLAY/PAUSE/FWD/REV.6. Sleep timer will be terminated if it had been set before Time Shift.7. The USB storage size needs to be 4GB, 8GB or 16GB.8. Video may become pixelated when Video bit rate is too low.9. Close Caption setting is not available during Time Shift mode.10. Not all USB devices are compatible. Below is a list of recommended USB drvies. Models that are notlisted may be compatible, but it is not guaranteed to work.• SanDisk Extreme® Contour™ USB Flash Drive - 8GB SDCZ8-8192-E75• SanDisk Extreme® Contour™ USB Flash Drive - 16GB SDCZ8-016G-A75• Kingston DataTraveler 410 USB 2.0 Flash Drive - 8GB DT410/8GB• Kingston DataTraveler 410 USB 2.0 Flash Drive - 16GB DT410/16GB• OCZ Technology Rally2 USB 2.0 Flash Drive - 4GB OCZUSBR2DC-4GB• OCZ Technology ATV USB 2.0 Flash Drive - 8GB OCZUSBATV - 8GB• OCZ Technology Rally2 USB 2.0 Flash Drive - 8GB OCZUSBR2DC-8GB11. This feature is not available for all digital TV, such as scrambled or audio only channels.12. Reset to Default: Restore all settings to the factory default.VGA MENUThis option is only shown and available while in VGA mode, which provides several options to fine tune the VGAdisplay.1. H-Position: Adjust the horizontal position of the picture. (0-40)2. V-Position: Adjust the vertical position of the picture. (0-16)3. Clock: Adjust picture clock to reduce Vertical-Line noise. (0-16)4. Phase: Adjust picture phase to reduce Horizontal-Line noise. (0-31)5. Auto Adjust: Adjust the settings automatically.6. Preset: Restore the default VGA setting values.
