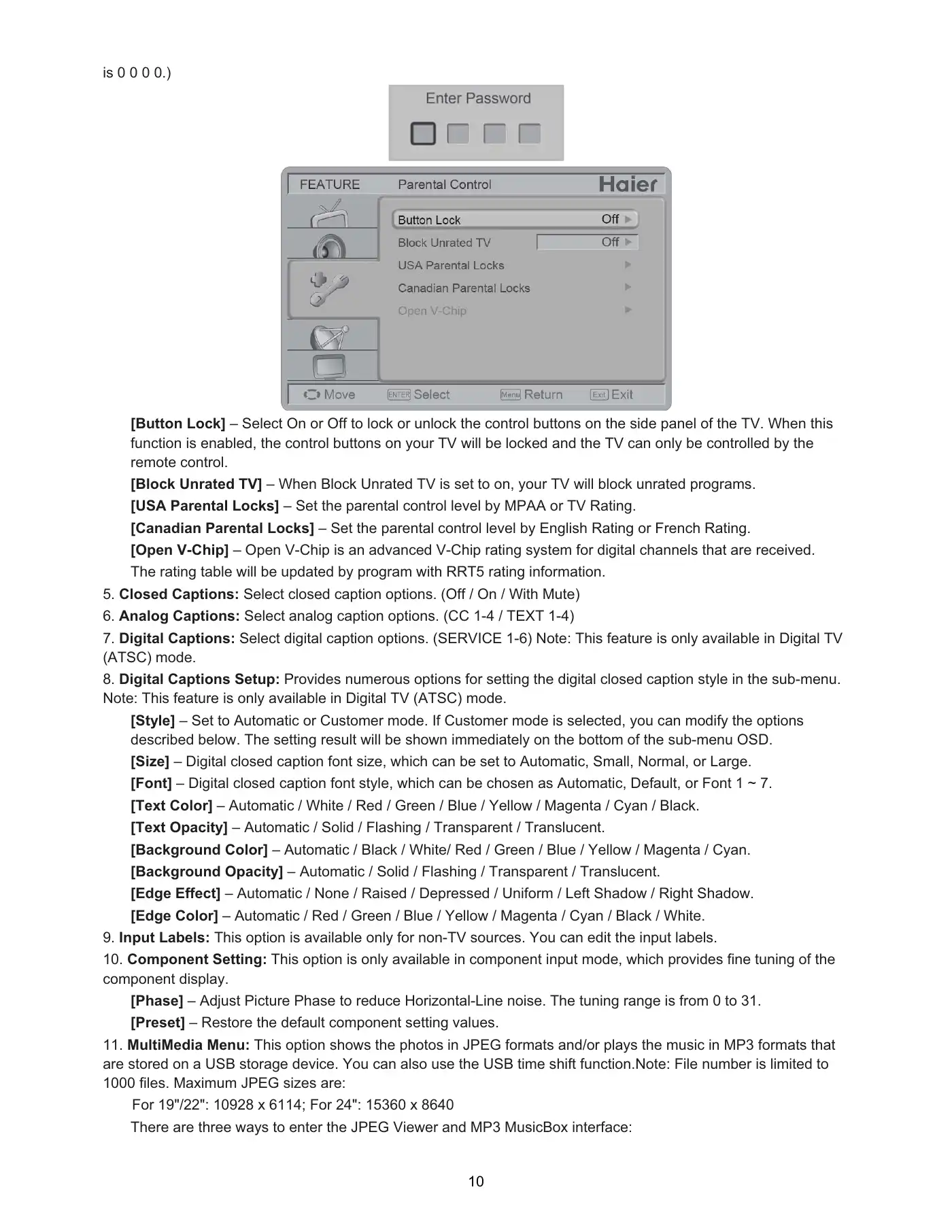

10is 0 0 0 0.)[Button Lock] – Select On or Off to lock or unlock the control buttons on the side panel of the TV. When thisfunction is enabled, the control buttons on your TV will be locked and the TV can only be controlled by theremote control.[Block Unrated TV] – When Block Unrated TV is set to on, your TV will block unrated programs.[USA Parental Locks] – Set the parental control level by MPAA or TV Rating.[Canadian Parental Locks] – Set the parental control level by English Rating or French Rating.[Open V-Chip] – Open V-Chip is an advanced V-Chip rating system for digital channels that are received.The rating table will be updated by program with RRT5 rating information.5. Closed Captions: Select closed caption options. (Off / On / With Mute)6. Analog Captions: Select analog caption options. (CC 1-4 / TEXT 1-4)7. Digital Captions: Select digital caption options. (SERVICE 1-6) Note: This feature is only available in Digital TV(ATSC) mode.8. Digital Captions Setup: Provides numerous options for setting the digital closed caption style in the sub-menu.Note: This feature is only available in Digital TV (ATSC) mode.[Style] – Set to Automatic or Customer mode. If Customer mode is selected, you can modify the optionsdescribed below. The setting result will be shown immediately on the bottom of the sub-menu OSD.[Size] – Digital closed caption font size, which can be set to Automatic, Small, Normal, or Large.[Font] – Digital closed caption font style, which can be chosen as Automatic, Default, or Font 1 ~ 7.[Text Color] – Automatic / White / Red / Green / Blue / Yellow / Magenta / Cyan / Black.[Text Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.[Background Color] – Automatic / Black / White/ Red / Green / Blue / Yellow / Magenta / Cyan.[Background Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.[Edge Effect] – Automatic / None / Raised / Depressed / Uniform / Left Shadow / Right Shadow.[Edge Color] – Automatic / Red / Green / Blue / Yellow / Magenta / Cyan / Black / White.9. Input Labels: This option is available only for non-TV sources. You can edit the input labels.10. Component Setting: This option is only available in component input mode, which provides fine tuning of thecomponent display.[Phase] – Adjust Picture Phase to reduce Horizontal-Line noise. The tuning range is from 0 to 31.[Preset] – Restore the default component setting values.11. MultiMedia Menu: This option shows the photos in JPEG formats and/or plays the music in MP3 formats thatare stored on a USB storage device. You can also use the USB time shift function.Note: File number is limited to1000 files. Maximum JPEG sizes are:For 19"/22": 10928 x 6114; For 24": 15360 x 8640There are three ways to enter the JPEG Viewer and MP3 MusicBox interface:
