Haier LE19C1320 Owner's Manual

Also see for LE19C1320: Owner's manual Owner's manual Service manual

Language

English

Contents

English10

Français41

Español75

Haier LE19C1320 Owner's Manual Manual pdf 18 page image

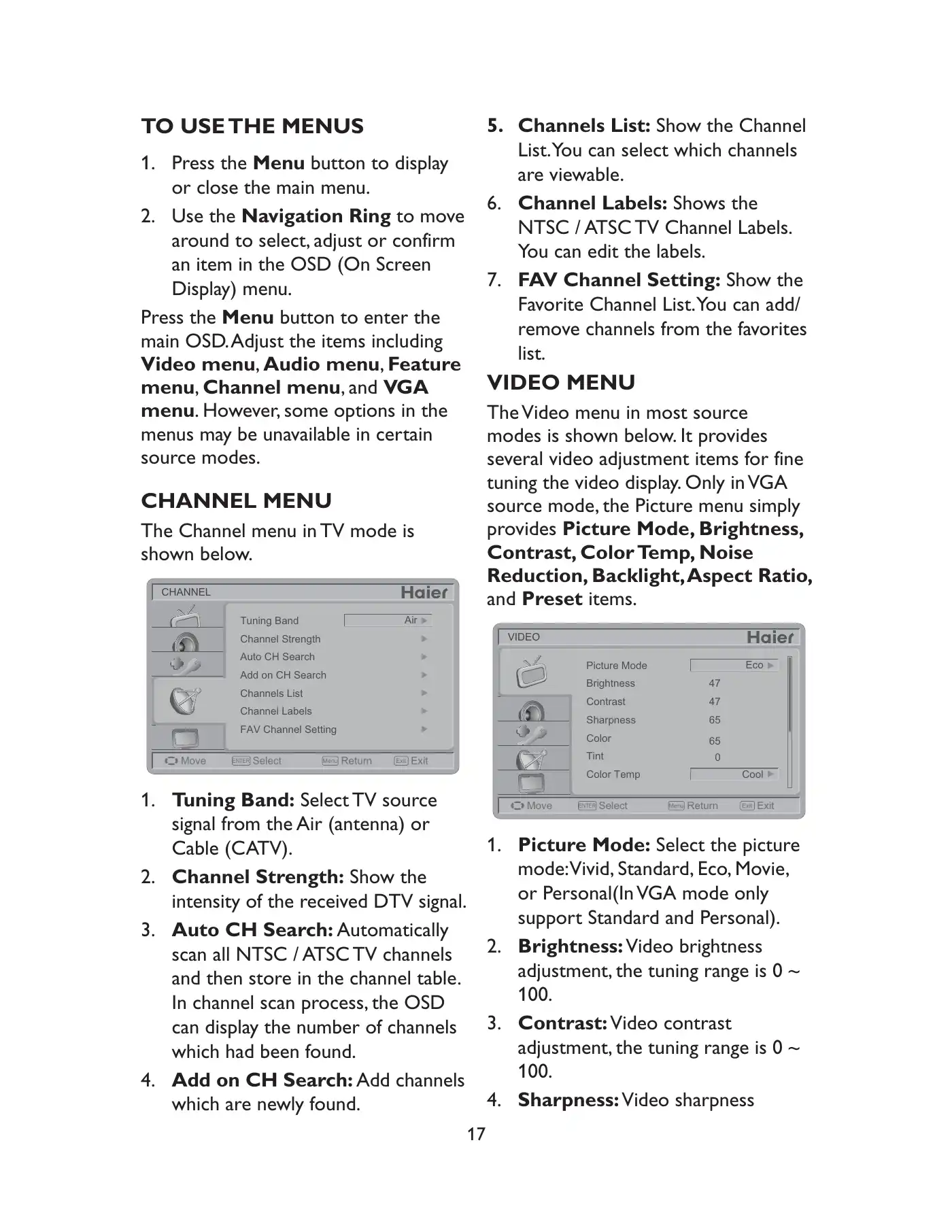

17TO USE THE MENUS1. Press the Menu button to displayor close the main menu.2. Use the Navigation Ring to movearound to select, adjust or confirman item in the OSD (On ScreenDisplay) menu.Press the Menu button to enter themain OSD. Adjust the items includingVideo menu, Audio menu, Featuremenu, Channel menu, and VGAmenu. However, some options in themenus may be unavailable in certainsource modes.CHANNEL MENUThe Channel menu in TV mode isshown below.ENTER ExitMenuCHANNELMove Select Return ExitChannel StrengthAuto CH SearchChannels ListAdd on CH SearchChannel LabelsFAV Channel SettingAirTuning Band1. Tuning Band: Select TV sourcesignal from the Air (antenna) orCable (CATV).2. Channel Strength: Show theintensity of the received DTV signal.3. Auto CH Search: Automaticallyscan all NTSC / ATSC TV channelsand then store in the channel table.In channel scan process, the OSDcan display the number of channelswhich had been found.4. Add on CH Search: Add channelswhich are newly found.5. Channels List: Show the ChannelList.You can select which channelsare viewable.6. Channel Labels: Shows theNTSC / ATSC TV Channel Labels.You can edit the labels.7. FAV Channel Setting: Show theFavorite Channel List.You can add/remove channels from the favoriteslist.VIDEO MENUThe Video menu in most sourcemodes is shown below. It providesseveral video adjustment items for finetuning the video display. Only in VGAsource mode, the Picture menu simplyprovides Picture Mode, Brightness,Contrast, Color Temp, NoiseReduction, Backlight, Aspect Ratio,and Preset items.ENTER ExitMenuVIDEOMove Select Return ExitBrightnessContrastColorSharpnessTintColor TempEco656547470CoolPicture Mode1. Picture Mode: Select the picturemode:Vivid, Standard, Eco, Movie,or Personal(In VGA mode onlysupport Standard and Personal).2. Brightness: Video brightnessadjustment, the tuning range is 0 ~100.3. Contrast: Video contrastadjustment, the tuning range is 0 ~100.4. Sharpness: Video sharpness

/ 99
