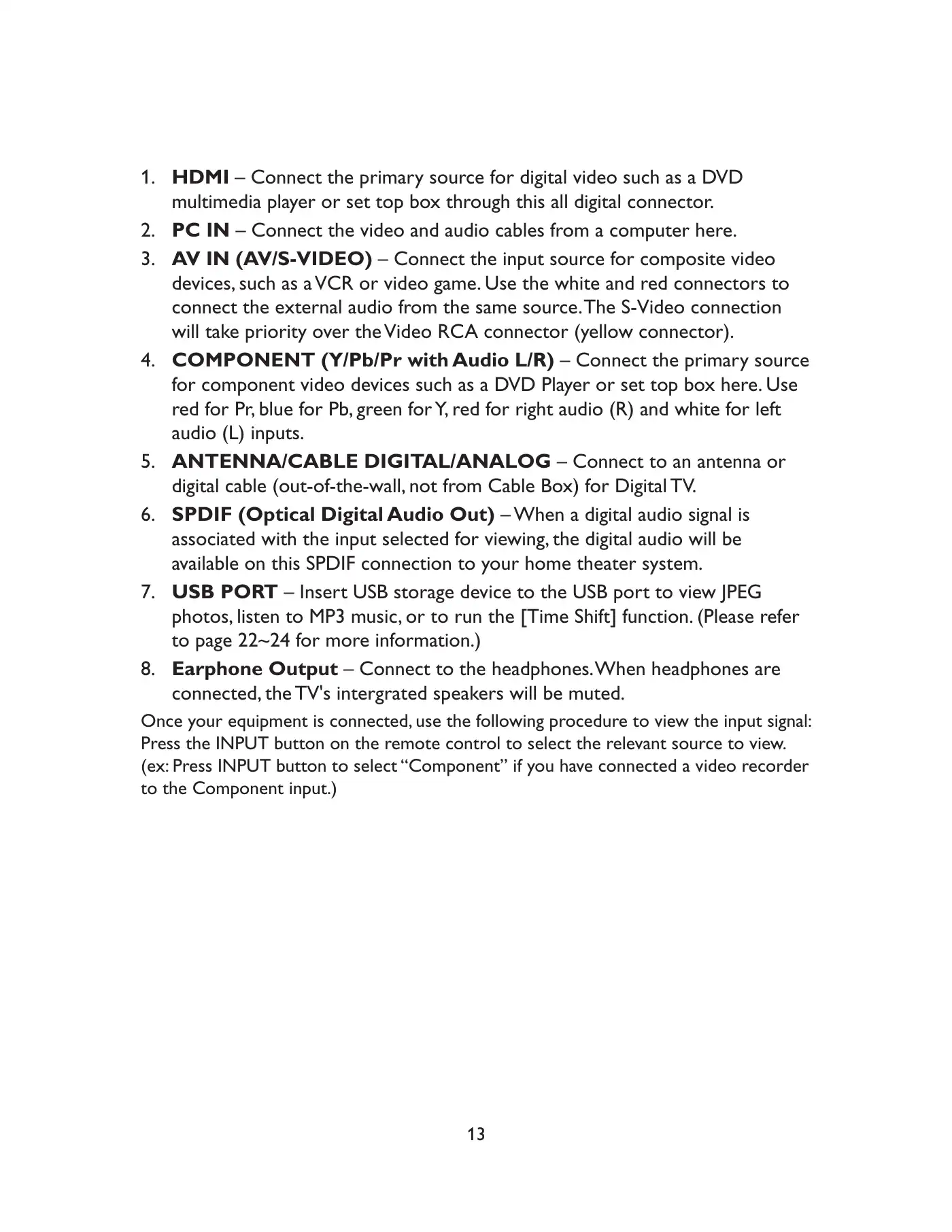

131. HDMI – Connect the primary source for digital video such as a DVDmultimedia player or set top box through this all digital connector.2. PC IN – Connect the video and audio cables from a computer here.3. AV IN (AV/S-VIDEO) – Connect the input source for composite videodevices, such as a VCR or video game. Use the white and red connectors toconnect the external audio from the same source. The S-Video connectionwill take priority over the Video RCA connector (yellow connector).4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary sourcefor component video devices such as a DVD Player or set top box here. Usered for Pr, blue for Pb, green for Y, red for right audio (R) and white for leftaudio (L) inputs.5. ANTENNA/CABLE DIGITAL/ANALOG – Connect to an antenna ordigital cable (out-of-the-wall, not from Cable Box) for Digital TV.6. SPDIF (Optical Digital Audio Out) – When a digital audio signal isassociated with the input selected for viewing, the digital audio will beavailable on this SPDIF connection to your home theater system.7. USB PORT – Insert USB storage device to the USB port to view JPEGphotos, listen to MP3 music, or to run the [Time Shift] function. (Please referto page 22~24 for more information.)8. Earphone Output – Connect to the headphones. When headphones areconnected, the TV's intergrated speakers will be muted.Once your equipment is connected, use the following procedure to view the input signal:Press the INPUT button on the remote control to select the relevant source to view.(ex: Press INPUT button to select “Component” if you have connected a video recorderto the Component input.)

/ 99

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

If the TV causes harmful interference to radio or television reception, try the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that to which the receiver is connected, or consult the dealer or an experienced radio/TV technician for help.

For servicing, refer to the operating instructions provided. If you need to perform any servicing other than what is contained in the operating instructions, ensure you are qualified to do so to reduce the risk of electric shock.

No, you should only use a UL Listed Wall Mount Bracket with the minimum weight/load capacity as specified. Please see page 27 for more details.

The ENERGY STAR compliance of the Haier LE19C1320 ensures that the product is energy-efficient, helping to reduce energy consumption and save you money on utility bills while also being environmentally friendly.

To attach the base to your Haier LE19C1320 LCD HDTV, follow the instructions provided in the 'ATTACHING THE BASE' section on page 10 of the owner's manual.

The remote control of the Haier LE19C1320 TV requires 2 batteries of Type AAA 1.5V.

To change the input source on your Haier LE19C1320 TV, press the INPUT button on the back panel control.

To display the channel list, press the CH.LIST button on your remote control.

In JPEG Viewer mode, you can use the REV S button to go to the previous folder or photo, the FWD V button to go to the next folder or photo, the PREV K button to go to the first folder or photo, and the NEXT L button to go to the final folder or photo.
