Haier LE19B13200a Service Manual

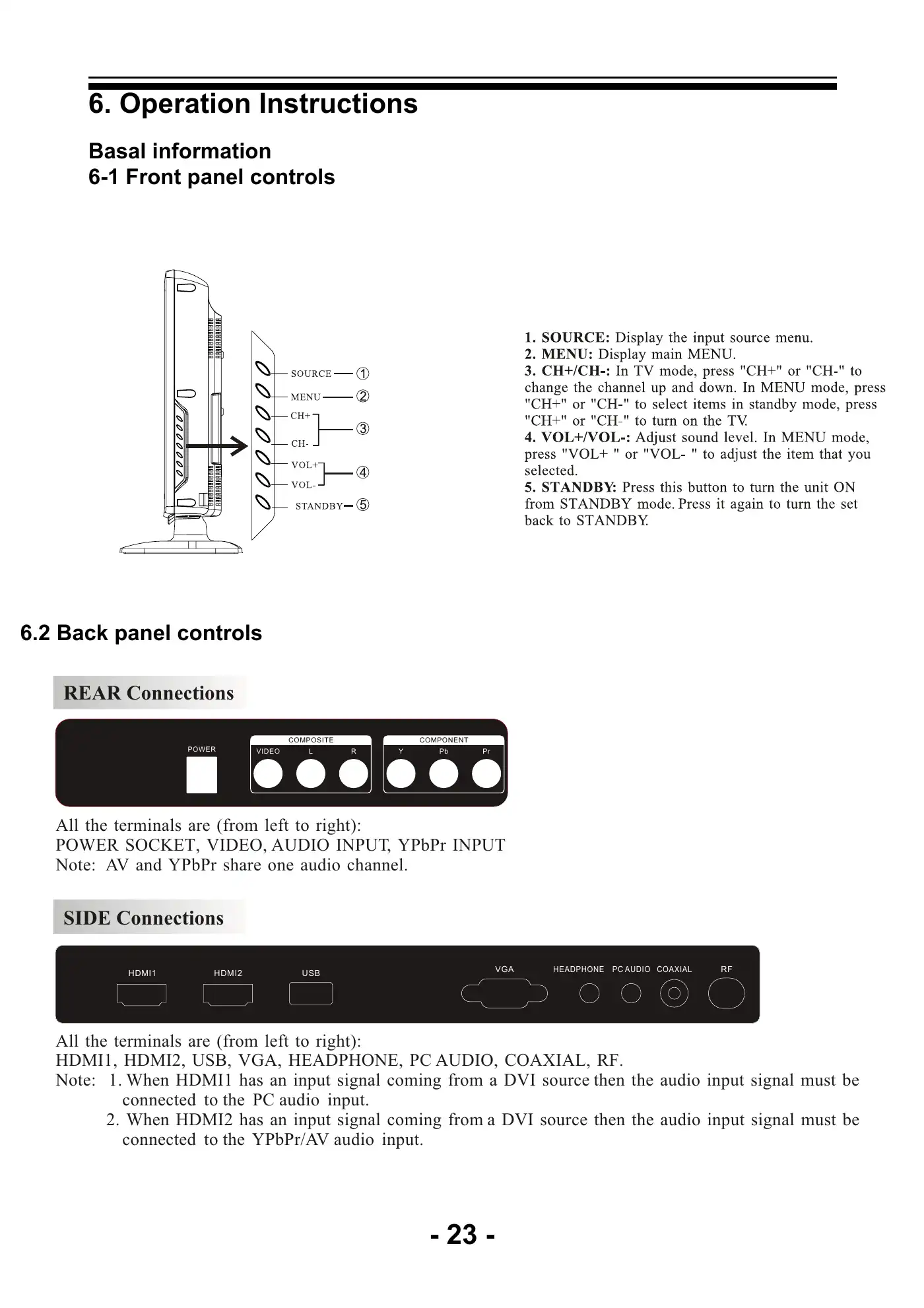

6. Operation InstructionsBasal information6-1 Front panel controls6.2 Back panel controls- 23 -REAR ConnectionsAll the terminals are (from left to right):POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUTNote: AV and YPbPr share one audio channel.SIDE ConnectionsAll the terminals are (from left to right):HDMI1, HDMI2, USB, VGA, HEADPHONE, PC AUDIO, COAXIAL, RF.Note: 1. When HDMI1 has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.2. When HDMI2 has an input signal coming from a DVI source then the audio input signal must beconnected to the YPbPr/AV audio input.VGA HEADPHONE RFPC AUDIO COAXIALHDMI1 HDMI2 USBPOWER VIDEO RL Y Pb PrCOMPOSITE COMPONENT

/ 57
