Haier LE19B13200a Service Manual

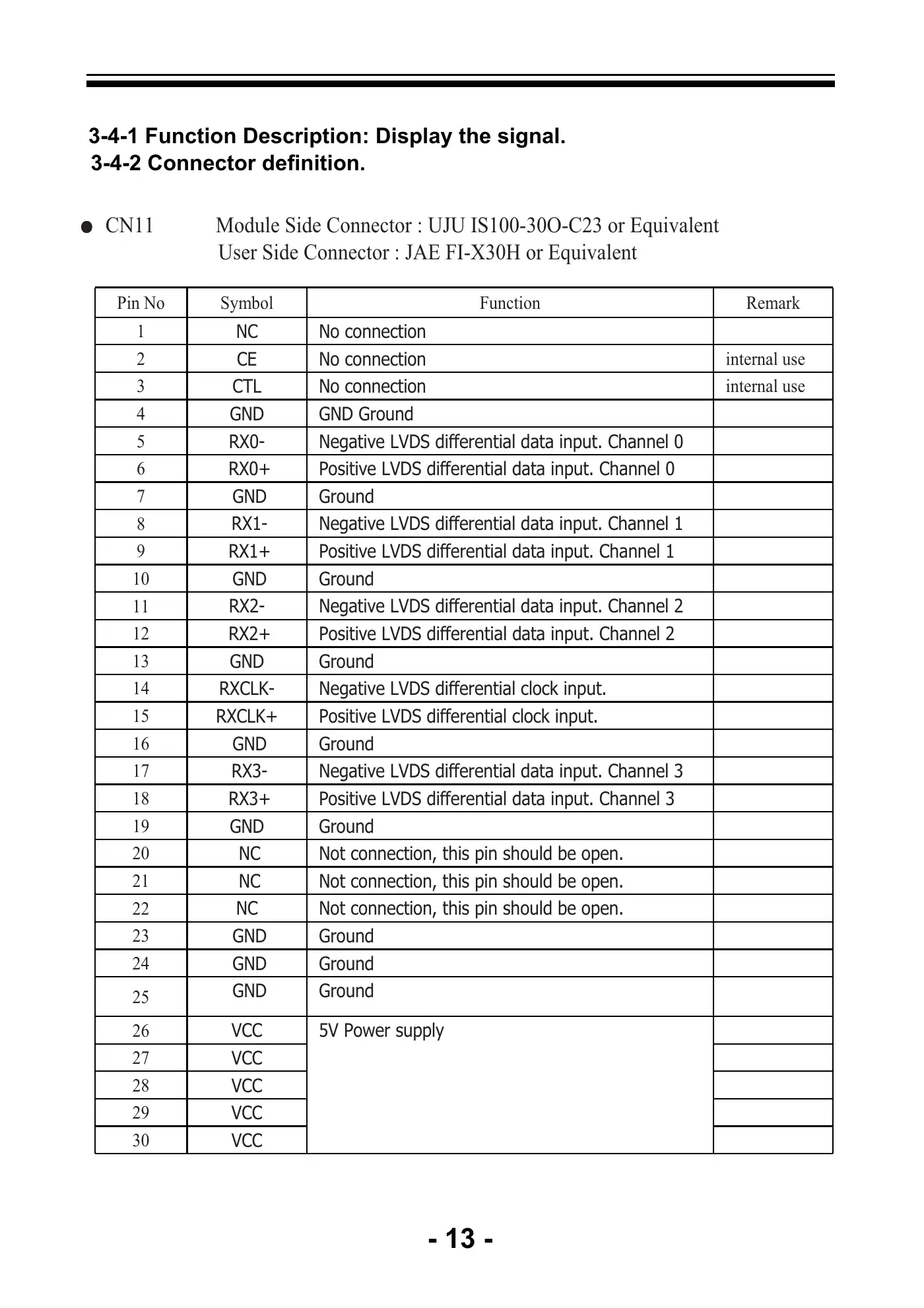

- 13 -3-4-1 Function Description: Display the signal.&RQQHFWRUGH¿QLWLRQ೚ CN11 Module Side Connector : UJU IS100-30O-C23 or EquivalentUser Side Connector : JAE FI-X30H or Equivalent5V Power supplyPin No Symbol Function Remark1 NC No connection2 CE No connection internal use3 CTL No connection internal use4 GND GND Ground5 RX0- Negative LVDS differential data input. Channel 06 RX0+ Positive LVDS differential data input. Channel 07 GND Ground8 RX1- Negative LVDS differential data input. Channel 19 RX1+ Positive LVDS differential data input. Channel 110 GND Ground11 RX2- Negative LVDS differential data input. Channel 212 RX2+ Positive LVDS differential data input. Channel 213 GND Ground14 RXCLK- Negative LVDS differential clock input.15 RXCLK+ Positive LVDS differential clock input.16 GND Ground17 RX3- Negative LVDS differential data input. Channel 318 RX3+ Positive LVDS differential data input. Channel 319 GND Ground20 NC Not connection, this pin should be open.21 NC Not connection, this pin should be open.22 NC Not connection, this pin should be open.23 GND Ground24 GND Ground25 GND Ground26 VCC27 VCC28 VCC29 VCC30 VCC

/ 57
