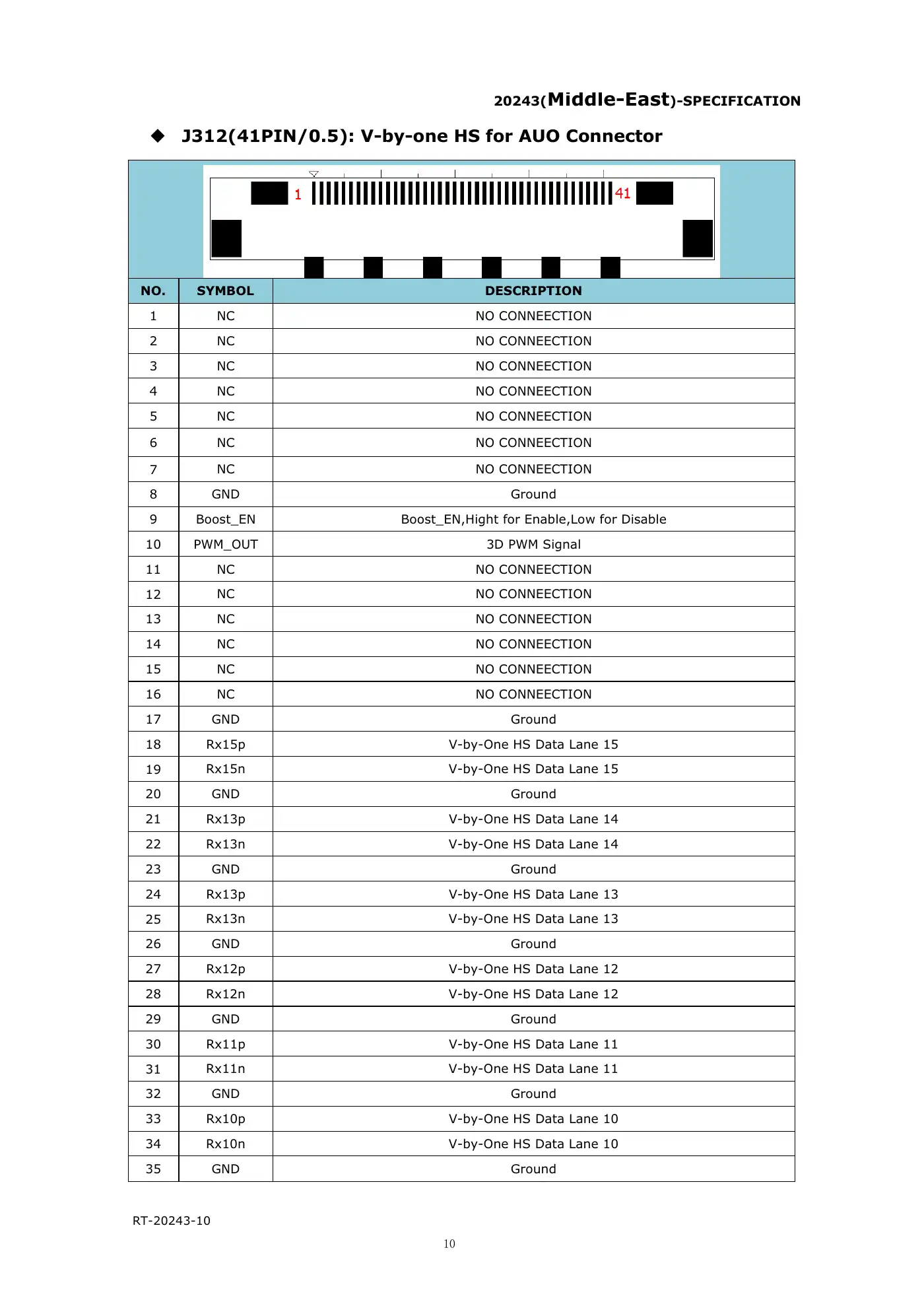

RT-20243-1020243( Middle-East)-SPECIFICATION J312(41PIN/0.5): V-by-one HS for AUO ConnectorNO. SYMBOL DESCRIPTION1 NC NO CONNEECTION2 NC NO CONNEECTION3 NC NO CONNEECTION4 NC NO CONNEECTION5 NC NO CONNEECTION6 NC NO CONNEECTION7 NC NO CONNEECTION8 GND Ground9 Boost_EN Boost_EN,Hight for Enable,Low for Disable10 PWM_OUT 3D PWM Signal11 NC NO CONNEECTION12 NC NO CONNEECTION13 NC NO CONNEECTION14 NC NO CONNEECTION15 NC NO CONNEECTION16 NC NO CONNEECTION17 GND Ground18 Rx15p V-by-One HS Data Lane 1519 Rx15n V-by-One HS Data Lane 1520 GND Ground21 Rx13p V-by-One HS Data Lane 1422 Rx13n V-by-One HS Data Lane 1423 GND Ground24 Rx13p V-by-One HS Data Lane 1325 Rx13n V-by-One HS Data Lane 1326 GND Ground27 Rx12p V-by-One HS Data Lane 1228 Rx12n V-by-One HS Data Lane 1229 GND Ground30 Rx11p V-by-One HS Data Lane 1131 Rx11n V-by-One HS Data Lane 1132 GND Ground33 Rx10p V-by-One HS Data Lane 1034 Rx10n V-by-One HS Data Lane 1035 GND Ground

RT-20243-1020243( Middle-East)-SPECIFICATION J312(41PIN/0.5): V-by-one HS for AUO ConnectorNO. SYMBOL DESCRIPTION1 NC NO CONNEECTION2 NC NO CONNEECTION3 NC NO CONNEECTION4 NC NO CONNEECTION5 NC NO CONNEECTION6 NC NO CONNEECTION7 NC NO CONNEECTION8 GND Ground9 Boost_EN Boost_EN,Hight for Enable,Low for Disable10 PWM_OUT 3D PWM Signal11 NC NO CONNEECTION12 NC NO CONNEECTION13 NC NO CONNEECTION14 NC NO CONNEECTION15 NC NO CONNEECTION16 NC NO CONNEECTION17 GND Ground18 Rx15p V-by-One HS Data Lane 1519 Rx15n V-by-One HS Data Lane 1520 GND Ground21 Rx13p V-by-One HS Data Lane 1422 Rx13n V-by-One HS Data Lane 1423 GND Ground24 Rx13p V-by-One HS Data Lane 1325 Rx13n V-by-One HS Data Lane 1326 GND Ground27 Rx12p V-by-One HS Data Lane 1228 Rx12n V-by-One HS Data Lane 1229 GND Ground30 Rx11p V-by-One HS Data Lane 1131 Rx11n V-by-One HS Data Lane 1132 GND Ground33 Rx10p V-by-One HS Data Lane 1034 Rx10n V-by-One HS Data Lane 1035 GND Ground

Haier LD65Q8000AU Service Manual
