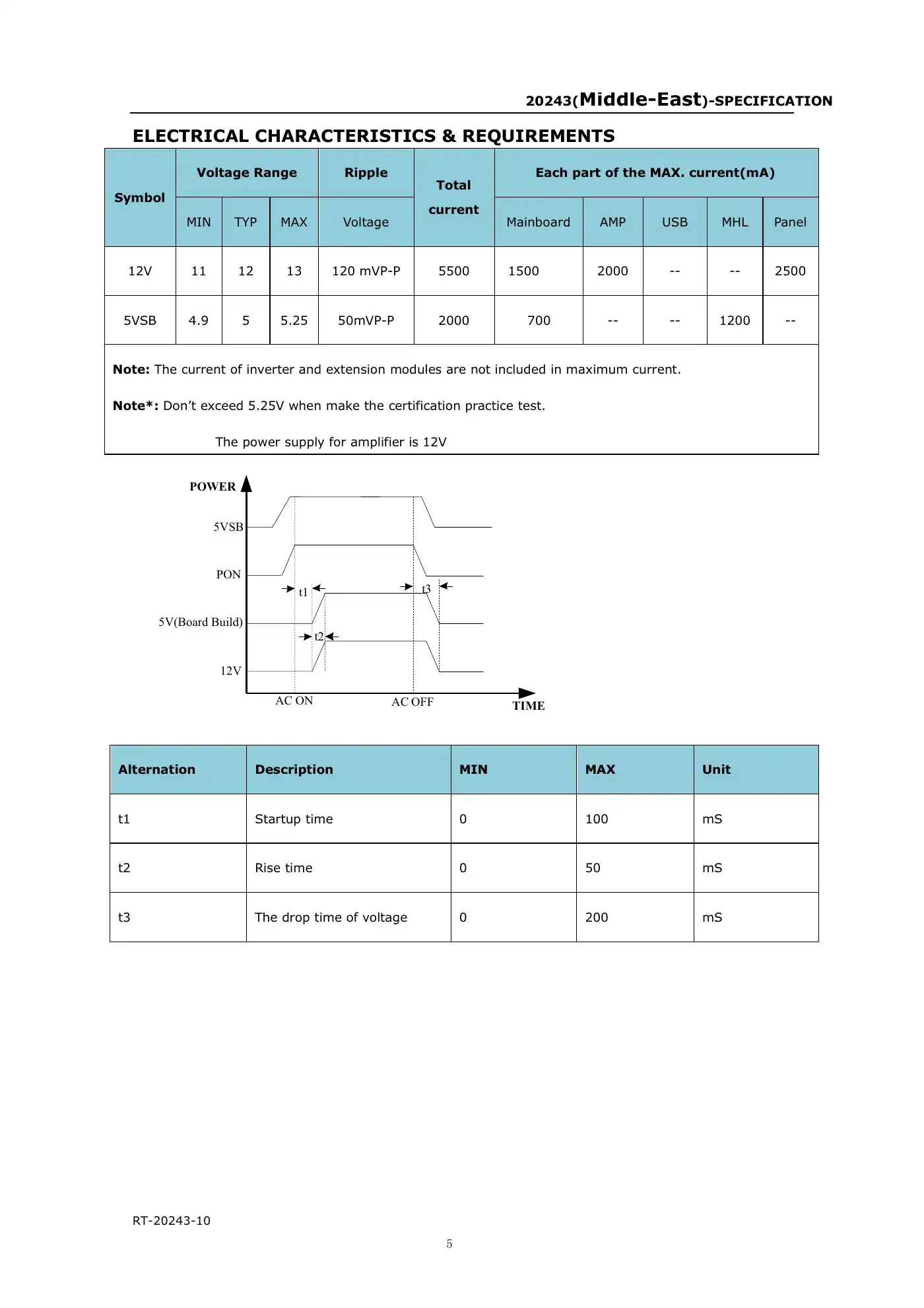

20243( Middle-East)-SPECIFICATIONRT-20243-10ELECTRICAL CHARACTERISTICS & REQUIREMENTSSymbolVoltage Range RippleTotalcurrentEach part of the MAX. current(mA)MIN TYP MAX Voltage Mainboard AMP USB MHL Panel12V 11 12 13 120 mVP-P 5500 1500 2000 -- -- 25005VSB 4.9 5 5.25 50mVP-P 2000 700 -- -- 1200 --Note: The current of inverter and extension modules are not included in maximum current.Note*: Don’t exceed 5.25V when make the certification practice test.The power supply for amplifier is 12VPOWER5VSBPONt1 t35V(Board Build)t212VAC ON AC OFF TIMEAlternation Description MIN MAX Unitt1 Startup time 0 100 mSt2 Rise time 0 50 mSt3 The drop time of voltage 0 200 mS

20243( Middle-East)-SPECIFICATIONRT-20243-10ELECTRICAL CHARACTERISTICS & REQUIREMENTSSymbolVoltage Range RippleTotalcurrentEach part of the MAX. current(mA)MIN TYP MAX Voltage Mainboard AMP USB MHL Panel12V 11 12 13 120 mVP-P 5500 1500 2000 -- -- 25005VSB 4.9 5 5.25 50mVP-P 2000 700 -- -- 1200 --Note: The current of inverter and extension modules are not included in maximum current.Note*: Don’t exceed 5.25V when make the certification practice test.The power supply for amplifier is 12VPOWER5VSBPONt1 t35V(Board Build)t212VAC ON AC OFF TIMEAlternation Description MIN MAX Unitt1 Startup time 0 100 mSt2 Rise time 0 50 mSt3 The drop time of voltage 0 200 mS

Haier LD65Q8000AU Service Manual
