Haier LD65Q8000AU Service Manual

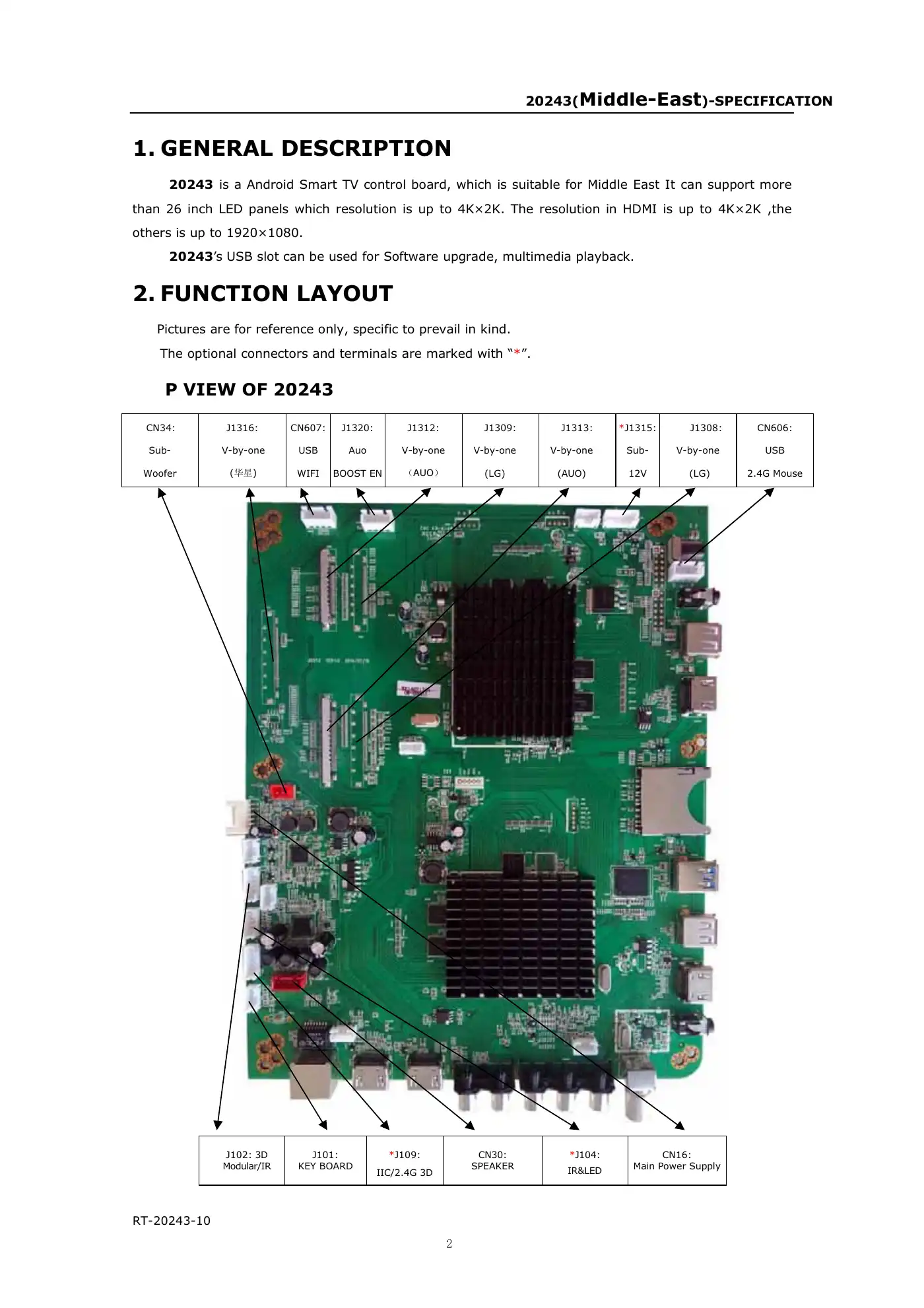

20243( Middle-East)-SPECIFICATIONRT-20243-101. GENERAL DESCRIPTION20243 is a Android Smart TV control board, which is suitable for Middle East It can support morethan 26 inch LED panels which resolution is up to 4K×2K. The resolution in HDMI is up to 4K×2K ,theothers is up to 1920×1080.20243’s USB slot can be used for Software upgrade, multimedia playback.2. FUNCTION LAYOUTPictures are for reference only, specific to prevail in kind.The optional connectors and terminals are marked with “*”.P VIEW OF 20243CN34:Sub-WooferJ1316:V-by-one(ॾᱏ)CN607:USBWIFIJ1320:AuoBOOST ENJ1312:V-by-one˄AUO˅J1309:V-by-one(LG)J1313:V-by-one(AUO)*J1315:Sub-12VJ1308:V-by-one(LG)CN606:USB2.4G MouseJ102: 3DModular/IRJ101:KEY BOARD*J109:IIC/2.4G 3DCN30:SPEAKER*J104:IR&LEDCN16:Main Power Supply

/ 75
