Haier KXT7020BK Instruction Manual

Contents

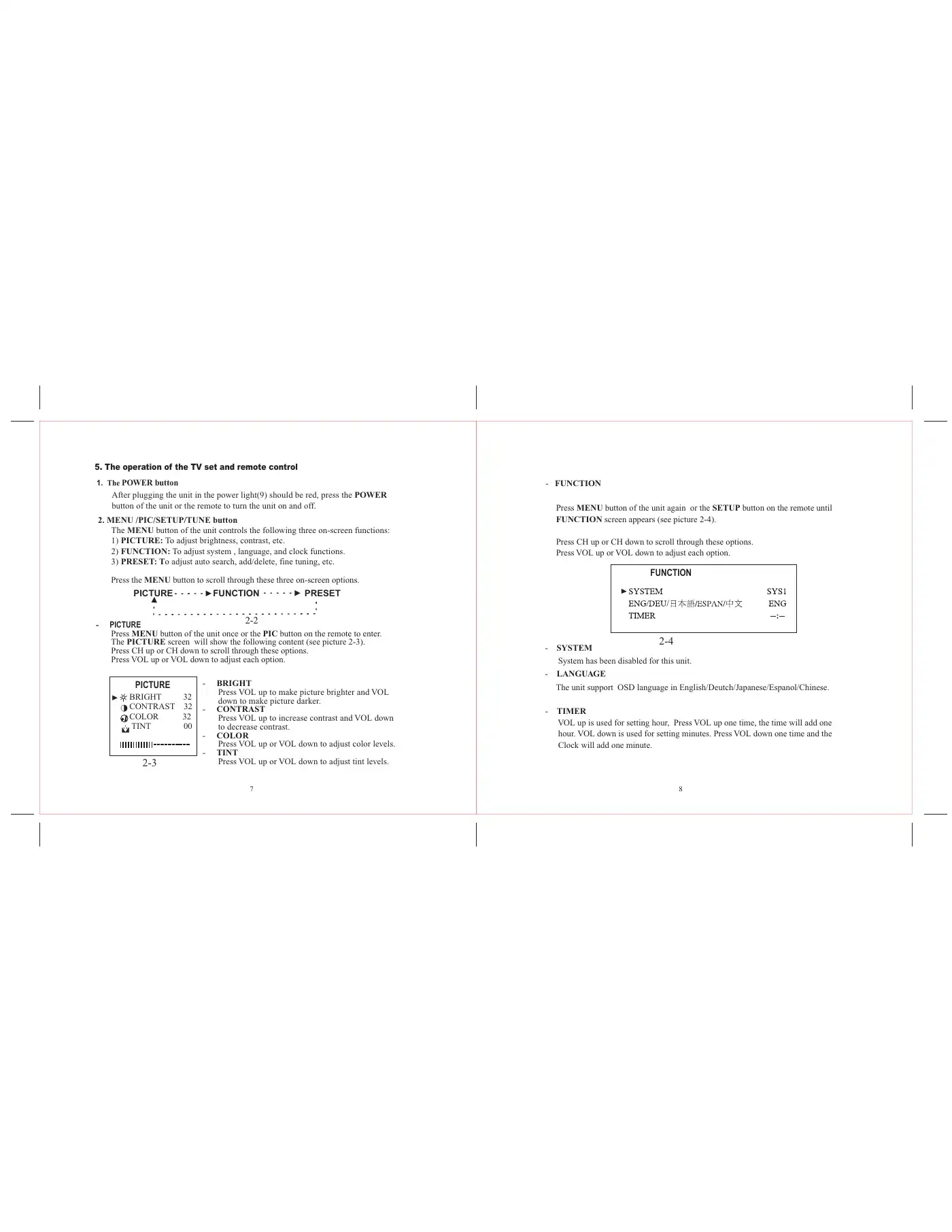

7 85. The operation of the TV set and remote control1. The POWER buttonAfter plugging the unit in the power light(9) should be red, press the POWERbutton of the unit or the remote to turn the unit on and off.PICTURE FUNCTION PRESET2. MENU /PIC/SETUP/TUNE buttonThe MENU button of the unit controls the following three on-screen functions:1) PICTURE: To adjust brightness, contrast, etc.2) FUNCTION: To adjust system , language, and clock functions.3) PRESET: To adjust auto search, add/delete, fine tuning, etc.2-2- PICTUREPress MENU button of the unit once or the PIC button on the remote to enter.The PICTURE screen will show the following content (see picture 2-3).Press CH up or CH down to scroll through these options.Press VOL up or VOL down to adjust each option.PICTUREBRIGHT 32CONTRAST 32COLOR 32TINT 002-3- BRIGHTPress VOL up to make picture brighter and VOLdown to make picture darker.- CONTRASTPress VOL up to increase contrast and VOL downto decrease contrast.- COLORPress VOL up or VOL down to adjust color levels.- TINTPress VOL up or VOL down to adjust tint levels.Press the MENU button to scroll through these three on-screen options.Press MENU button of the unit again or the SETUP button on the remote untilFUNCTION screen appears (see picture 2-4).Press CH up or CH down to scroll through these options.Press VOL up or VOL down to adjust each option.- FUNCTION- SYSTEMSystem has been disabled for this unit.- LANGUAGEThe unit support OSD language in English/Deutch/Japanese/Espanol/Chinese.FUNCTION2-4- TIMERVOL up is used for setting hour, Press VOL up one time, the time will add onehour. VOL down is used for setting minutes. Press VOL down one time and theClock will add one minute.

/ 8

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

To connect the Haier KXT7020BK, refer to the instructions provided on page 6 of the manual.

For general troubleshooting, refer to the instructions provided on page 13 of the manual.

The AV/TV Switch allows you to toggle between TV and AV (Audio/Video) inputs. This is useful when you want to switch between watching regular TV broadcasts and using external AV equipment connected to the TV, such as a VCD or DVD player.

To connect an antenna, plug it into the ANT jack (13). The unit can receive CATV/ANT signals from this input.

To turn on and off the Haier KXT7020BK TV, press the POWER button on the unit or the remote control. The power light should be red when the unit is plugged in.

To adjust the picture settings, press the MENU button on the unit or the PIC button on the remote to enter the PICTURE screen. Use the CH up or CH down buttons to scroll through options like BRIGHT, CONTRAST, COLOR, and TINT. Use the VOL up or VOL down buttons to adjust each option.

To add or delete a channel, navigate to the desired channel using the PROG button. To delete a channel, press the VOL up or VOL down button until the SKIP function reads 'ON'. To add a channel, press the VOL up or VOL down button until the SKIP feature reads 'OFF'.

Check the connection of the AC adaptor or car adaptor. Ensure the batteries are not run down or installed incorrectly.

The brightness and contrast settings might be too low. Adjust these settings in the TV menu. Additionally, ensure the TV antenna is properly adjusted and that the reception is strong. If the issue persists, try relocating the TV to a place with better reception.
