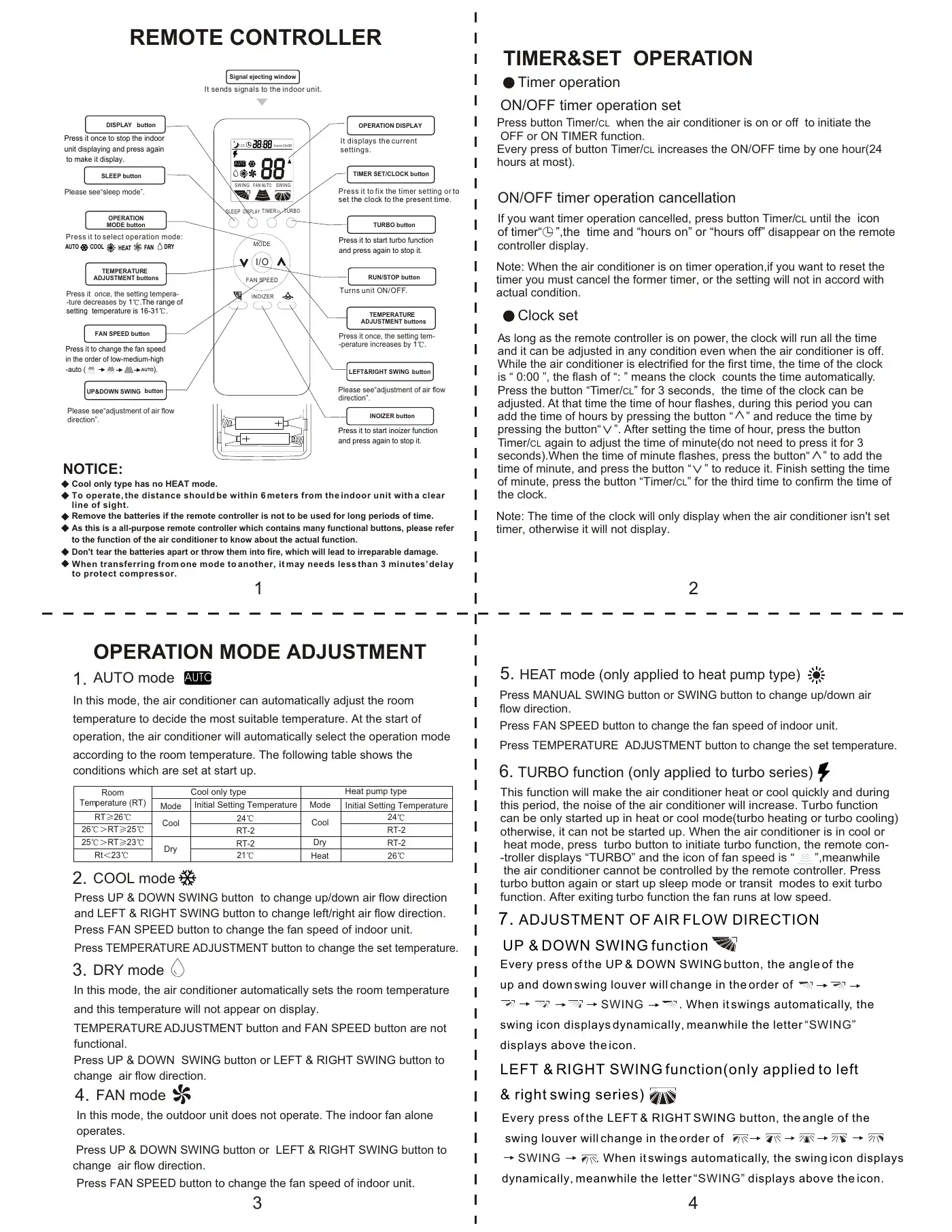

 Cool only type has no HEAT mode.Remove the batteries if the remote controller is not to be used for long periods of time.1NOTICE:REMOTE CONTROLLERDon't tear the batteries apart or throw them into fire, which will lead to irreparable damage.TIMER&SET OPERATIONON/OFF timer operation setON/OFF timer operation cancellation¡± ¡±when the air conditioner is on or off to initiate theOFF or ON TIMER function.Every press of button Timer/ increases the ON/OFF time by one hour(24hours at most).Press button Timer/CLCL¡±If you want timer operation cancelled, press button Timer/ until the iconof timer“ ”,the time and “hours on” or “hours off” disappear on the remotecontroller display.CLTo operate, the distance should be within 6 meters from the indoor unit with a clearline of sight.Press it to fix the timer setting or toset the clock to the present time.It sends signals to the indoor unit.Signal ejecting windowOPERATION DISPLAYOPERATIONMODE buttonCOOL HEAT FAN DRYAUTOIt displays the currentsettings.Press it to select operation mode:TEMPERATUREADJUSTMENT buttons RUN/STOP buttonPress it once, the setting tempera--ture decreases by 1 .The range ofsetting temperature is 16-31 .Turns unit ON/OFF.FAN SPEED buttonSLEEP buttonPress it to change the fan speedin the order of low-medium-high-auto ( ).TIMER SET/CLOCK buttonAUTOUP&DOWN SWING buttonTEMPERATUREADJUSTMENT buttonsLEFT&RIGHT SWING buttonTURBO buttonDISPLAY buttonPress it to start turbo functionand press again to stop it.Press it once to stop the indoorunit displaying and press againto make it display.Press it once, the setting tem--perature increases by 1 .Timer operationNote: When the air conditioner is on timer operation,if you want to reset thetimer you must cancel the former timer, or the setting will not in accord withactual condition.¡± ¡±As long as the remote controller is on power, the clock will run all the timeand it can be adjusted in any condition even when the air conditioner is off.While the air conditioner is electrified for the first time, the time of the clockis “ 0:00 ”, the flash of “: ” means the clock counts the time automatically.Press the button “Timer/ ” for 3 seconds, the time of the clock can beadjusted. At that time the time of hour flashes, during this period you canadd the time of hours by pressing the button “ ” and reduce the time bypressing the button“ ”. After setting the time of hour, press the buttonTimer/ again to adjust the time of minute(do not need to press it for 3seconds).When the time of minute flashes, press the button“ ” to add thetime of minute, and press the button “ ” to reduce it. Finish setting the timeof minute, press the button “Timer/ ” for the third time to confirm the time ofthe clock.CLCLCL¡±Clock setNote: The time of the clock will only display when the air conditioner isn't settimer, otherwise it will not display.2¡æ123TURBOSLEEP DISPLAY TIMER/CL.MODEFAN SPEEDI/OSWING FAN AUTO SWINGPlease see“sleep mode”.As this is a all-purpose remote controller which contains many functional buttons, please referto the function of the air conditioner to know about the actual function.3 45. HEAT mode (only applied to heat pump type)COOL modePress UP & DOWN SWING button to change up/down air flow directionand LEFT & RIGHT SWING button to change left/right air flow direction.Press FAN SPEED button to change the fan speed of indoor unit.Press TEMPERATURE ADJUSTMENT button to change the set temperature.Press MANUAL SWING button or SWING button to change up/down airflow direction.Press FAN SPEED button to change the fan speed of indoor unit.Press TEMPERATURE ADJUSTMENT button to change the set temperature.¡± ¡±OPERATION MODE ADJUSTMENT4. FAN modeDRY mode2.3.Mode Mode2426RT-2 RT-2Cool CoolDry RT-2 RT-2DryHeat2421RoomTemperature (RT)RT 2625 RT 23Rt 2326 RT 25Heat pump typeCool only typeInitial Setting Temperature Initial Setting Temperature1. AUTO modeIn this mode, the air conditioner can automatically adjust the roomtemperature to decide the most suitable temperature. At the start ofoperation, the air conditioner will automatically select the operation modeaccording to the room temperature. The following table shows theconditions which are set at start up.In this mode, the air conditioner automatically sets the room temperatureand this temperature will not appear on display.TEMPERATURE ADJUSTMENT button and FAN SPEED button are notfunctional.Press UP & DOWN SWING button or LEFT & RIGHT SWING button tochange air flow direction.In this mode, the outdoor unit does not operate. The indoor fan aloneoperates.Press UP & DOWN SWING button or LEFT & RIGHT SWING button tochange air flow direction.Press FAN SPEED button to change the fan speed of indoor unit.6. TURBO function (only applied to turbo series)This function will make the air conditioner heat or cool quickly and duringthis period, the noise of the air conditioner will increase. Turbo functioncan be only started up in heat or cool mode(turbo heating or turbo cooling)otherwise, it can not be started up. When the air conditioner is in cool orheat mode, press turbo button to initiate turbo function, the remote con--troller displays “TURBO” and the icon of fan speed is “ ”,meanwhilethe air conditioner cannot be controlled by the remote controller. Pressturbo button again or start up sleep mode or transit modes to exit turbofunction. After exiting turbo function the fan runs at low speed.hours OnOffAUTOAUTOPlease see“adjustment of air flowdirection”.Please see“adjustment of air flowdirection”.UP & DOWN SWING functionEvery press of the UP & DOWN SWING button, the angle of theup and down swing louver will change in the order of. When it swings automatically, theswing icon displays dynamically, meanwhile the letterdisplays above the icon.SWINGSWING“ ”LEFT & RIGHT SWING function(only applied to left& right swing series)Every press of the LEFT & RIGHT SWING button, the angle of theswing louver will change in the order of. When it swings automatically, the swing icon displaysdynamically, meanwhile the letter displays above the icon.SWINGSWING“ ”7. ADJUSTMENT OF AIR FLOW DIRECTIONWhen transferring from one mode to another, it may needs less than 3 minutes’ delayto protect compressor.INOIZERINOIZER buttonPress it to start inoizer functionand press again to stop it. |
