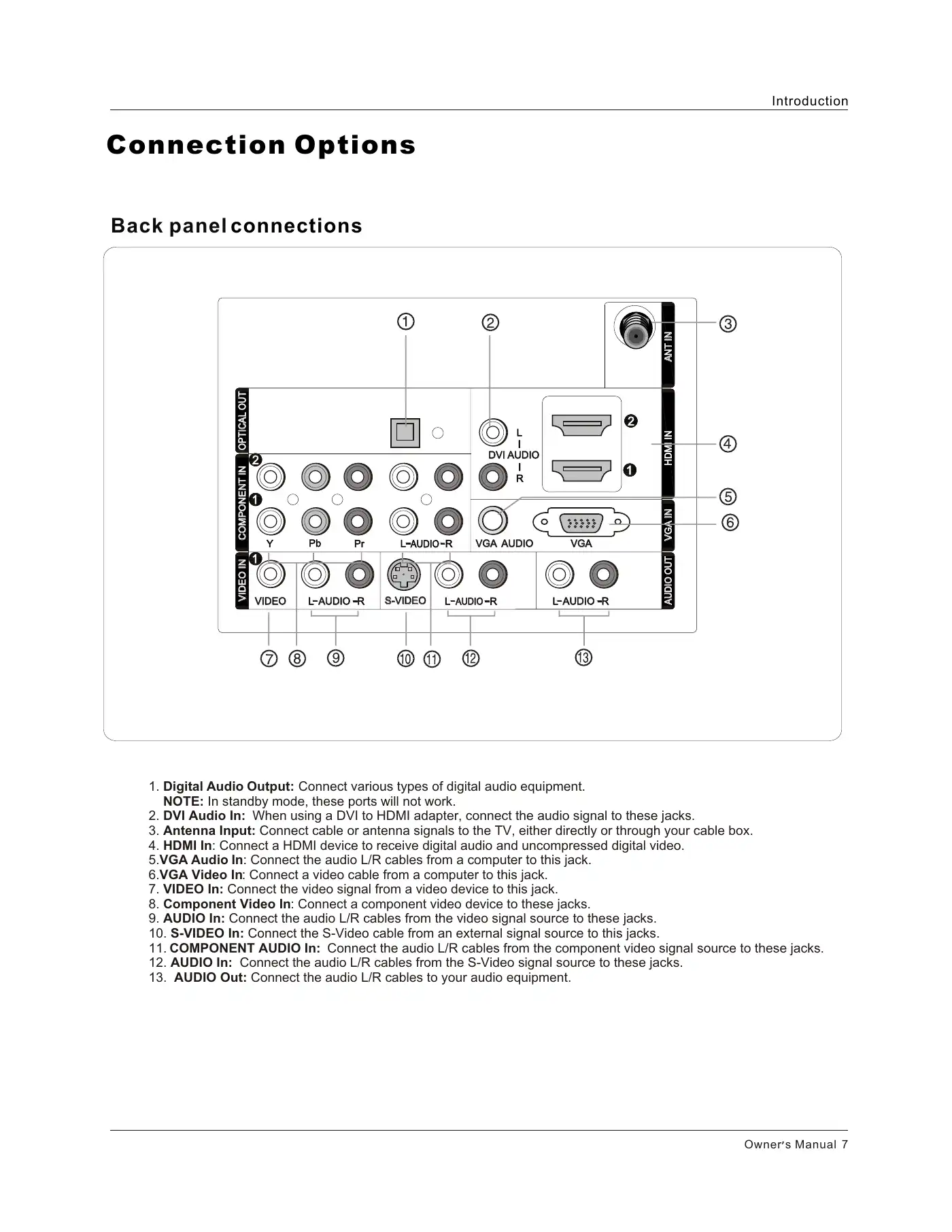

Contents |  Back panel connectionsIntroductionOwner s Manual 7Connection Options211Y Pb Pr L RL LR RVIDEOVIDEO S-VIDEOS-VIDEOVGAVGAVGA AUDIOVGA AUDIOAUDIOAUDIO AUDIOAUDIOLRDVI AUDIODVI AUDIOAUDIO2L RAUDIOAUDIOCOMPONENT INCOMPONENT INVIDEO INVIDEO IN1AUDIO OUTAUDIO OUT VGA INVGA IN HDMI IN ANT INANT INOPTICAL OUTOPTICAL OUT1. Digital Audio Output: Connect various types of digital audio equipment.NOTE: In standby mode, these ports will not work.2. DVI Audio In: When using a DVI to HDMI adapter, connect the audio signal to these jacks.3. Antenna Input: Connect cable or antenna signals to the TV, either directly or through your cable box.4. HDMI In: Connect a HDMI device to receive digital audio and uncompressed digital video.5.VGA Audio In: Connect the audio L/R cables from a computer to this jack.6.VGA Video In: Connect a video cable from a computer to this jack.7. VIDEO In: Connect the video signal from a video device to this jack.8. Component Video In: Connect a component video device to these jacks.9. AUDIO In: Connect the audio L/R cables from the video signal source to these jacks.10. S-VIDEO In: Connect the S-Video cable from an external signal source to this jacks.11. COMPONENT AUDIO In: Connect the audio L/R cables from the component video signal source to these jacks.12. AUDIO In: Connect the audio L/R cables from the S-Video signal source to these jacks.13. AUDIO Out: Connect the audio L/R cables to your audio equipment. |
