Haier HLC24XSLW2 Service Manual

The resolution of the Haier HLC24XSLW2 TV is 1920x1080.

The total power input for the Haier HLC24XSLW2 TV is 40W.

To connect a computer to the Haier HLC24XSLW2 TV, connect the audio and video cables from the computer’s output jacks to the TV input jacks. For the best picture quality, adjust the VGA graphics card to 1024x768. Use the TV’s VGA or DVI (Digital Visual Interface) port for video connections and the Audio IN port for audio connections, depending on your computer’s connector. If the graphic card on the computer does not output analog and digital RGB simultaneously, connect only one of either VGA IN or HDMI IN. If the graphic card outputs both, set the TV to either VGA or HDMI, and the other mode will be set to Plug and Play automatically by the TV.

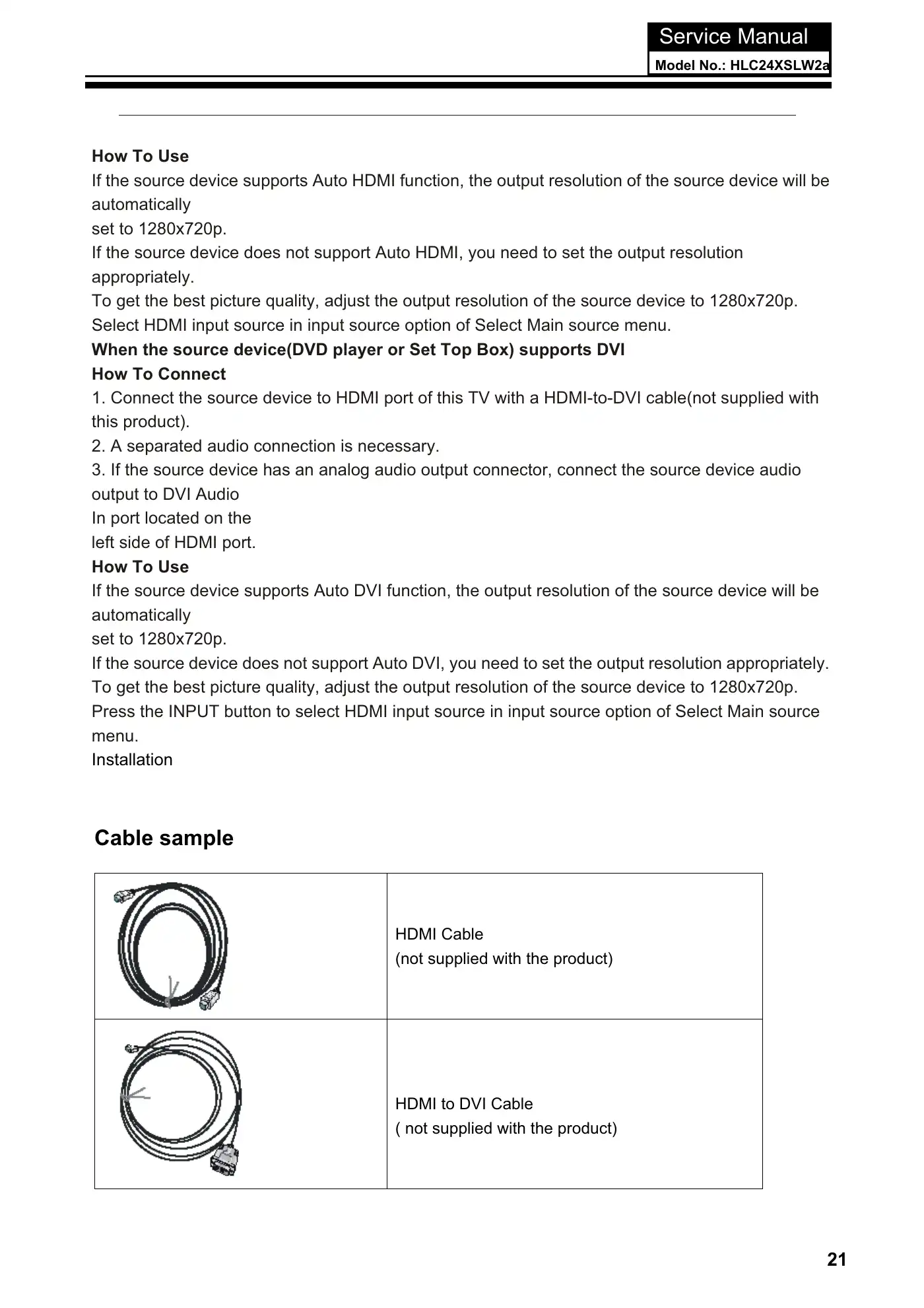

To connect a DVD player or Set Top Box to the Haier HLC24XSLW2 TV using a HDMI-to-DVI cable, follow these steps: 1. Connect the source device to the HDMI port of the TV with a HDMI-to-DVI cable (not supplied with this product). 2. Ensure a separate audio connection is made. If the source device has an analog audio output connector, connect the source device audio output to the DVI Audio In port located on the left side of the HDMI port.

To get the best picture quality on the Haier HLC24XSLW2 TV, adjust the output resolution of the source device to 1280x720p. If the source device supports Auto HDMI or Auto DVI function, the resolution will be set automatically. If not, you need to set the output resolution manually.

To connect headphones to your Haier HLC24XSLW2 TV, plug a set of headphones into the 3.5mm mini-jack socket located on the rear panel of the set.

To load batteries into the remote controller, slide open the cover of the battery compartment on the back of the remote controller. Load two 7# (AAA) alkaline batteries in the compartment, ensuring the plus and minus poles are aligned with the respective marks. Then, replace the cover of the battery compartment.

If the television does not respond to the remote controller, ensure that there is no obstacle between the remote controller and the television set. Additionally, strong light may interfere with the signals, so try changing your position to operate the remote controller. Also, make sure that two AAA alkaline batteries are loaded correctly and that the remote controller is kept away from heat sources or humid areas.

The 'Connection Wire For DVD' is used to connect the DVD component to the main board or other relevant parts of the Haier HLC24XSLW2.

To connect the speakers to the Haier HLC24XSLW2, you will need to use the 'Speaker Connection Wire' which is specifically designed for this purpose.
