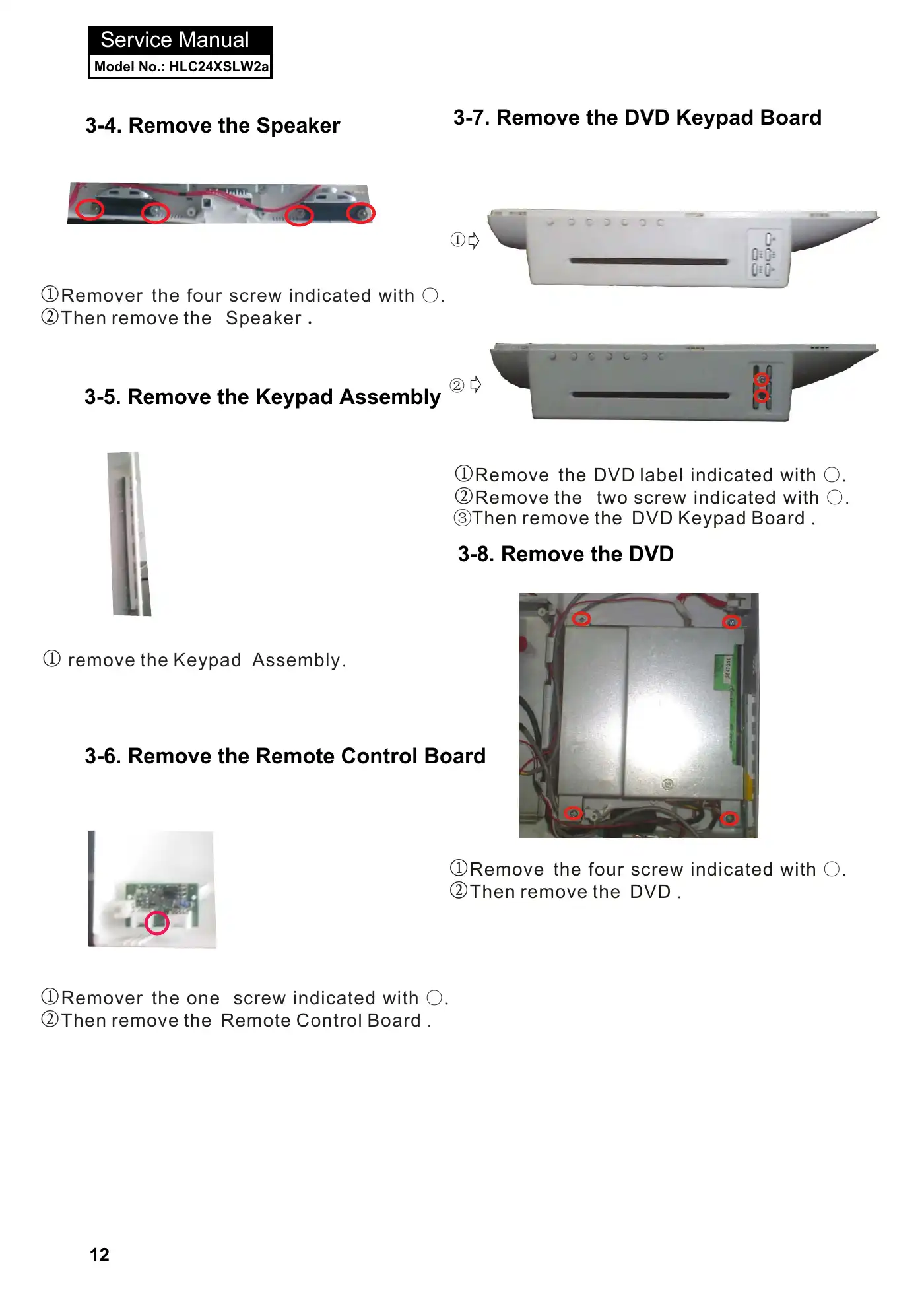

Haier HLC24XSLW2 Service Manual Manual pdf 13 page image

① remove the Keypad Assembly.①② .Remover the four screw indicated withThen remove the○.Speaker①②Remover the one screw indicated withThen remove the Remote Control Board○..3-4. Remove the Speaker3-5. Remove the Keypad Assembly3-6. Remove the Remote Control BoardService ManualModel No.: HLC24XSLW2a12①Remove the DVD label indicated with ○.②Remove the two screw indicated with ○.③Then remove the DVD Keypad Board .①Remove the four screw indicated with ○.②Then remove the DVD .①②3-7. Remove the DVD Keypad Board3-8. Remove the DVD
