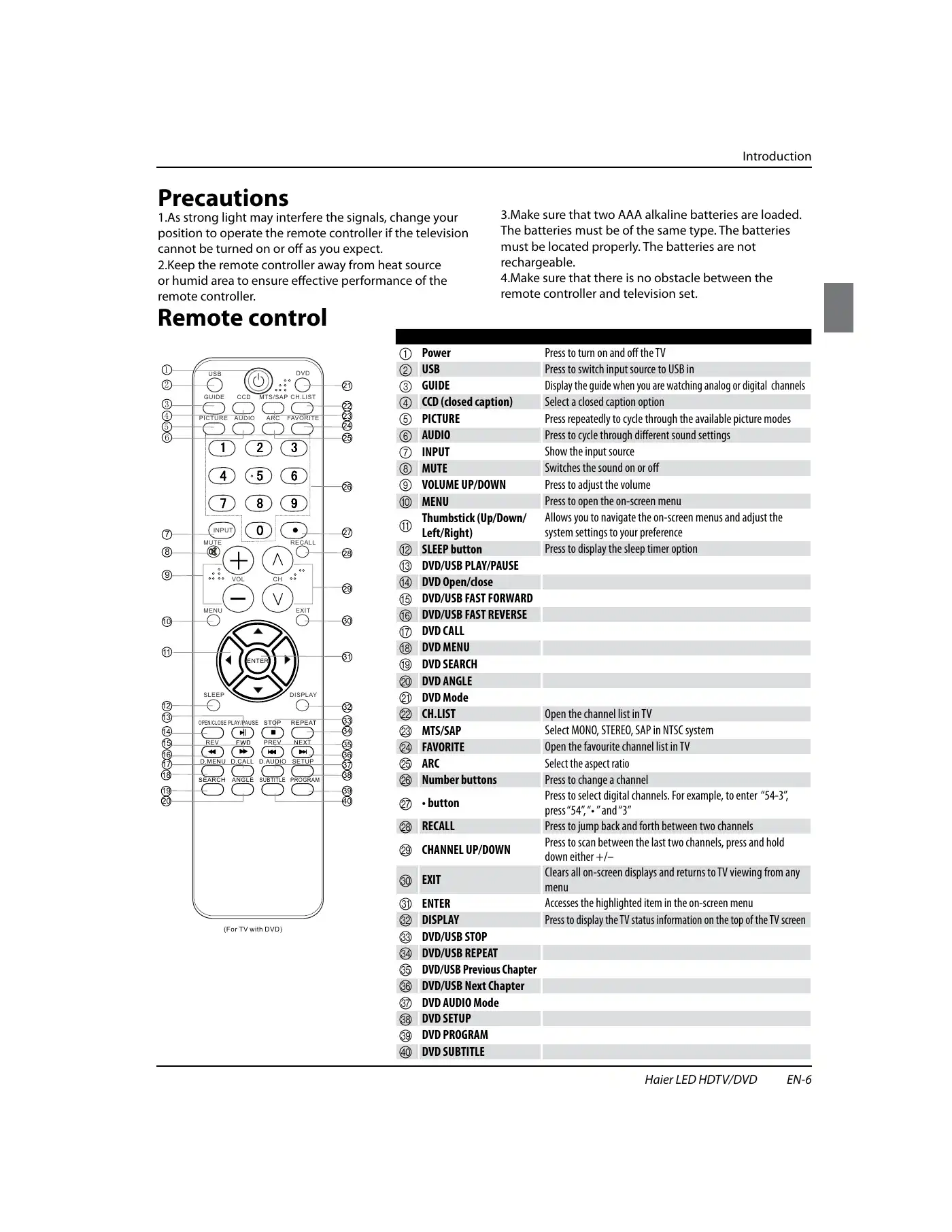

|  IntroductionHaier LED HDTV/DVD EN-6Precautions1.As strong light may interfere the signals, change yourposition to operate the remote controller if the televisioncannot be turned on or off as you expect.2.Keep the remote controller away from heat sourceor humid area to ensure effective performance of theremote controller.3.Make sure that two AAA alkaline batteries are loaded.The batteries must be of the same type. The batteriesmust be located properly. The batteries are notrechargeable.4.Make sure that there is no obstacle between theremote controller and television set.Remote control1 Power Press to turn on and off the TV2 USB Press to switch input source to USB in3 GUIDE Display the guide when you are watching analog or digital channels4 CCD (closed caption) Select a closed caption option5 PICTURE Press repeatedly to cycle through the available picture modes6 AUDIO Press to cycle through different sound settings7 INPUT Show the input source8 MUTE Switches the sound on or off9 VOLUME UP/DOWN Press to adjust the volume0 MENU Press to open the on-screen menuA Thumbstick (Up/Down/Left/Right)Allows you to navigate the on-screen menus and adjust thesystem settings to your preferenceB SLEEP button Press to display the sleep timer optionC DVD/USB PLAY/PAUSED DVD Open/closeE DVD/USB FAST FORWARDF DVD/USB FAST REVERSEG DVD CALLH DVD MENUI DVD SEARCHJ DVD ANGLEK DVD ModeL CH.LIST Open the channel list in TVM MTS/SAP Select MONO, STEREO, SAP in NTSC systemN FAVORITE Open the favourite channel list in TVO ARC Select the aspect ratioP Number buttons Press to change a channelQ tCVUUPO Press to select digital channels. For example, to enter “54-3”,QSFTTiw itwBOEiwR RECALL Press to jump back and forth between two channelsS CHANNEL UP/DOWN Press to scan between the last two channels, press and holddown either +/--T EXIT Clears all on-screen displays and returns to TV viewing from anymenuU ENTER Accesses the highlighted item in the on-screen menuV DISPLAY Press to display the TV status information on the top of the TV screenW DVD/USB STOPX DVD/USB REPEATY DVD/USB Previous ChapterZ DVD/USB Next Chapter[ DVD AUDIO Mode\ DVD SETUP] DVD PROGRAM` DVD SUBTITLE(For TV with DVD)OPEN/CLOSE PLAY/PAUSEREVD.MENUSEARCHD.CALLANGLED.AUDIOSUBTITLEENTERSTOP REPEATPREV NEXTSETUPPROGRAMUSBGUIDEINPUTMUTEVOL CHMENUYALPSIDPEELSEXITRECALLPICTURE AUDIO ARC FAVORITECCD MTS/SAP CH.LISTDVD18192021222324252627282930313233343536373839407891011121314151617 |
Questions and answers
Need help?
Ask question about this manual
Frequently asked questions
No, you should not open the cover or back of the Haier HLC24XSL2. There are no user-serviceable parts inside, and doing so may expose you to dangerous voltages and risk of electric shock. Refer any servicing to qualified service personnel.
No, you should not use an extension cord with the Haier HLC24XSL2. The polarized plug must be fully inserted into a proper outlet to prevent blade exposure and potential electric shock.
To change the input source, press the INPUT button on the front panel or use the remote control. Press repeatedly to cycle through the available sources until you reach the one you want to watch.
To connect a USB flash drive, insert it into the USB input on the back panel of the TV. This will allow you to view MPEG2 videos, JPEG images, or listen to MP3 songs.
To connect an external antenna, use the ANT IN port on the TV. For multi-family dwellings or apartments, connect to the wall antenna socket. For single-family dwellings or houses, connect to the wall jack for the outdoor antenna. Ensure the bronze wire is not bent during connection. If you need to split the signal for two TVs, use a 2-Way Signal Splitter. For better signal quality in poor signal areas, consider using a signal amplifier.
To connect your VCR to the TV, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red) and connect the audio and video cables from the VCR’s output jacks to the TV input jacks. You can then set the VCR output switch to channel 3 or 4 and tune the TV to the same channel number. Alternatively, you can insert a video tape into the VCR, press PLAY, and select the input source using the INPUT button on the remote control.
To connect a DVD player to the TV using component cables, connect the DVD video outputs (COMPONENT) to the Y Pb Pr jacks on the TV and connect the DVD audio outputs to the YPbPr Audio IN jacks on the TV. Turn on the DVD player, insert a DVD disc, and use the INPUT button on the remote control to select the proper input source.
To get the best picture quality, adjust the VGA graphics card to 1024x768. Use the TV’s VGA or DVI (Digital Visual Interface) Audio IN port for audio connections, depending on your computer connector. If the graphic card on the computer does not output analog and digital RGB simultaneously, connect only one of either VGA IN or HDMI IN to display the VGA on the TV. If the graphic card on the computer does output analog and digital RGB simultaneously, set the TV to either VGA or HDMI; the other mode is set to Plug and Play automatically by the TV.
To clean the screen, first turn off the power and unplug the power cord. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen. Make sure to remove any excess water from the screen afterwards.
First, verify if the television is properly plugged in and supplied with power. Check if electricity is available. If the issue persists, try restarting the television by unplugging the power cord and plugging it back in.
