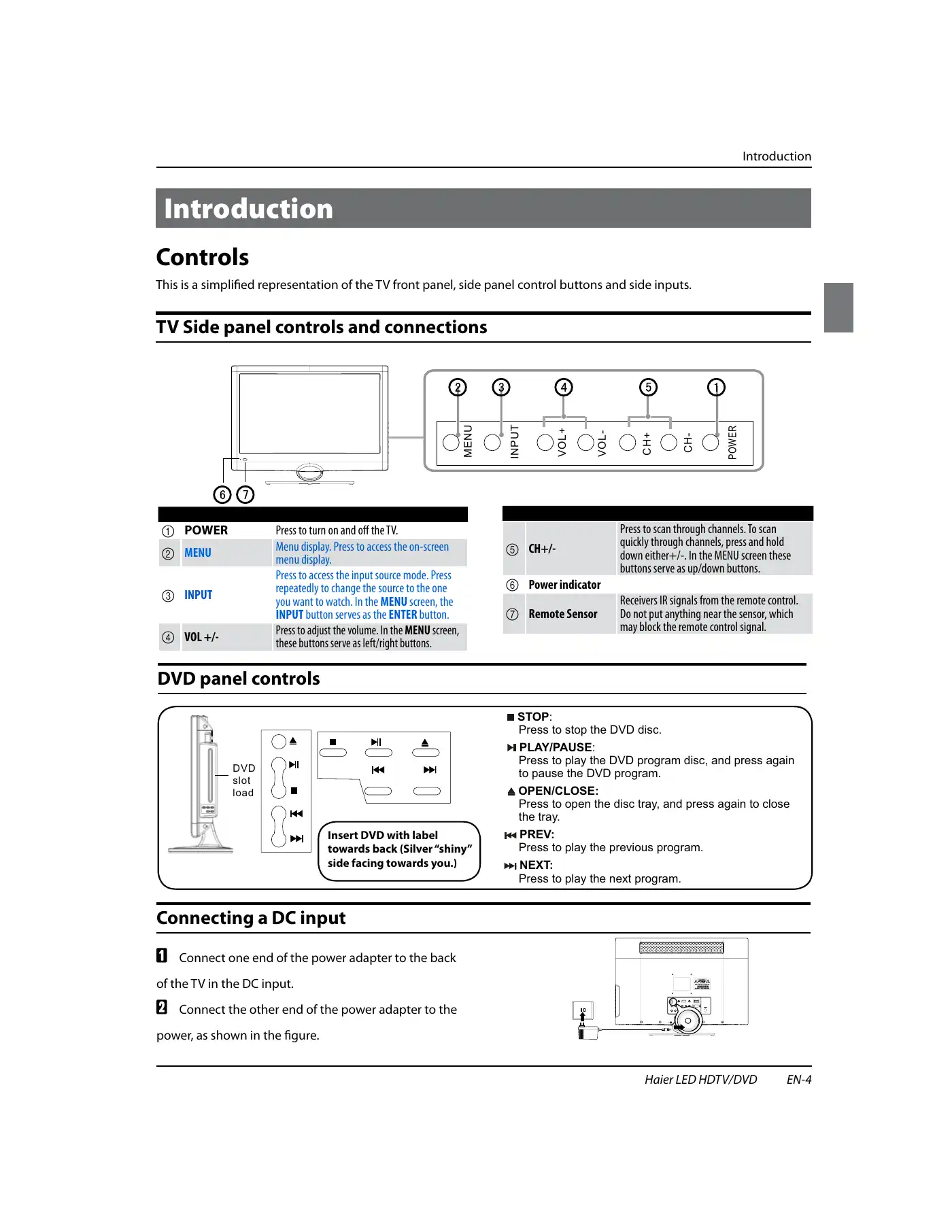

Haier HLC24XSL2 Owner's Manual Manual pdf 5 page image

IntroductionHaier LED HDTV/DVD EN-4DVD panel controlsIntroductionControlsThis is a simplified representation of the TV front panel, side panel control buttons and side inputs.TV Side panel controls and connectionsMENUINPUTVOL+CH+CH-POWERVOL-DVDslotloadSTOP:Press to stop the DVD disc.PLAY/PAUSE:Press to play the DVD program disc, and press againto pause the DVD program.OPEN/CLOSE:Press to open the disc tray, and press again to closethe tray.PREV:Press to play the previous program.NEXT:Press to play the next program.Insert DVD with labeltowards back (Silver “shiny”side facing towards you.)5 CH+/-Press to scan through channels. To scanquickly through channels, press and holddown either+/-. In the MENU screen thesebuttons serve as up/down buttons.6 Power indicator7 Remote SensorReceivers IR signals from the remote control.Do not put anything near the sensor, whichmay block the remote control signal.1 POWER Press to turn on and off the TV.2 MENU Menu display. Press to access the on-screenmenu display.3 INPUTPress to access the input source mode. Pressrepeatedly to change the source to the oneyou want to watch. In the MENU screen, theINPUT button serves as the ENTER button.4 VOL +/- Press to adjust the volume. In the MENU screen,these buttons serve as left/right buttons.Connecting a DC inputConnect one end of the power adapter to the backAof the TV in the DC input.Connect the other end of the power adapter to theBpower, as shown in the figure.
