Haier HLC24XLP2 User Manual

Also see for HLC24XLP2: Service manual

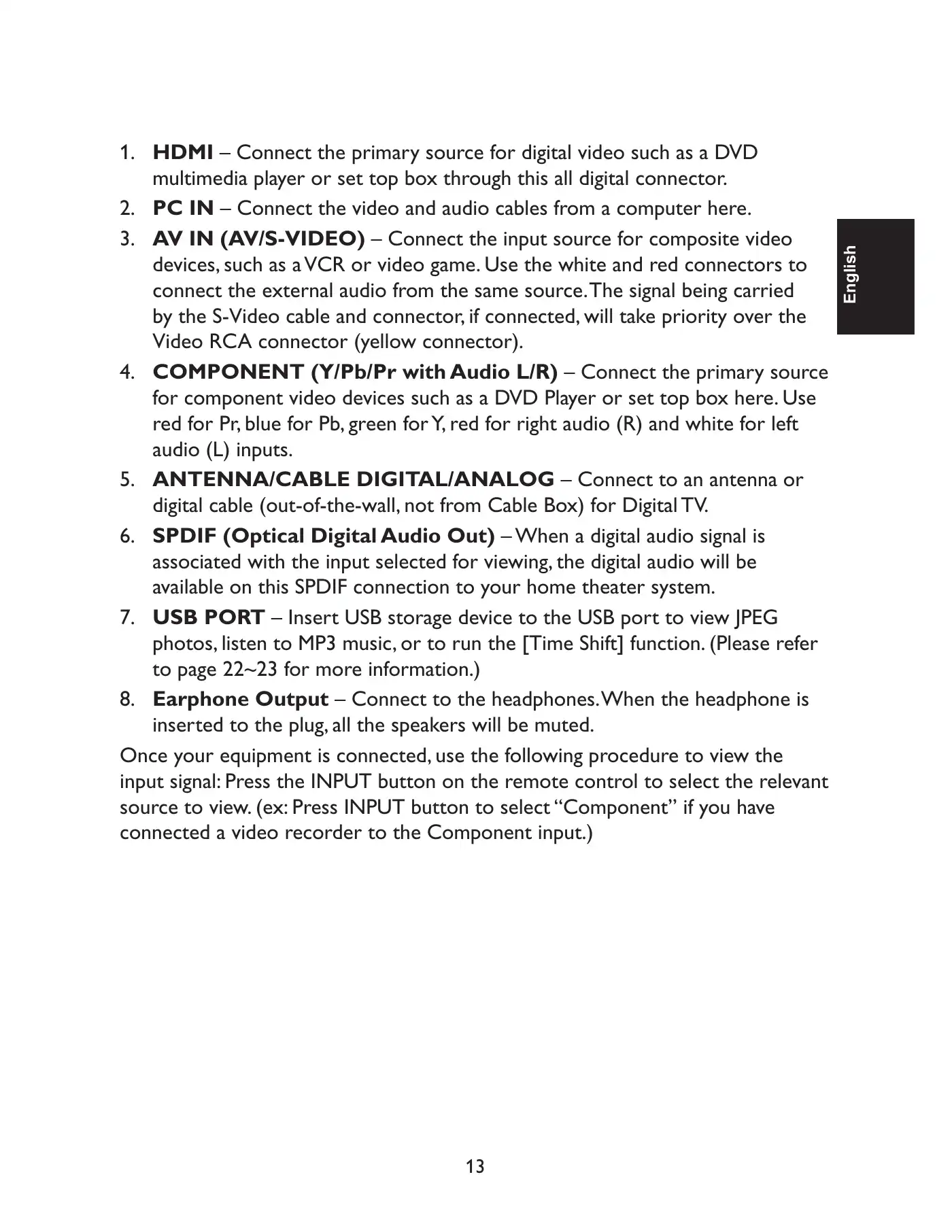

131. HDMI – Connect the primary source for digital video such as a DVDmultimedia player or set top box through this all digital connector.2. PC IN – Connect the video and audio cables from a computer here.3. AV IN (AV/S-VIDEO) – Connect the input source for composite videodevices, such as a VCR or video game. Use the white and red connectors toconnect the external audio from the same source. The signal being carriedby the S-Video cable and connector, if connected, will take priority over theVideo RCA connector (yellow connector).4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary sourcefor component video devices such as a DVD Player or set top box here. Usered for Pr, blue for Pb, green for Y, red for right audio (R) and white for leftaudio (L) inputs.5. ANTENNA/CABLE DIGITAL/ANALOG – Connect to an antenna ordigital cable (out-of-the-wall, not from Cable Box) for Digital TV.6. SPDIF (Optical Digital Audio Out) – When a digital audio signal isassociated with the input selected for viewing, the digital audio will beavailable on this SPDIF connection to your home theater system.7. USB PORT – Insert USB storage device to the USB port to view JPEGphotos, listen to MP3 music, or to run the [Time Shift] function. (Please referto page 22~23 for more information.)8. Earphone Output – Connect to the headphones. When the headphone isinserted to the plug, all the speakers will be muted.Once your equipment is connected, use the following procedure to view theinput signal: Press the INPUT button on the remote control to select the relevantsource to view. (ex: Press INPUT button to select “Component” if you haveconnected a video recorder to the Component input.)hsilgnE hsilgnE

/ 36
