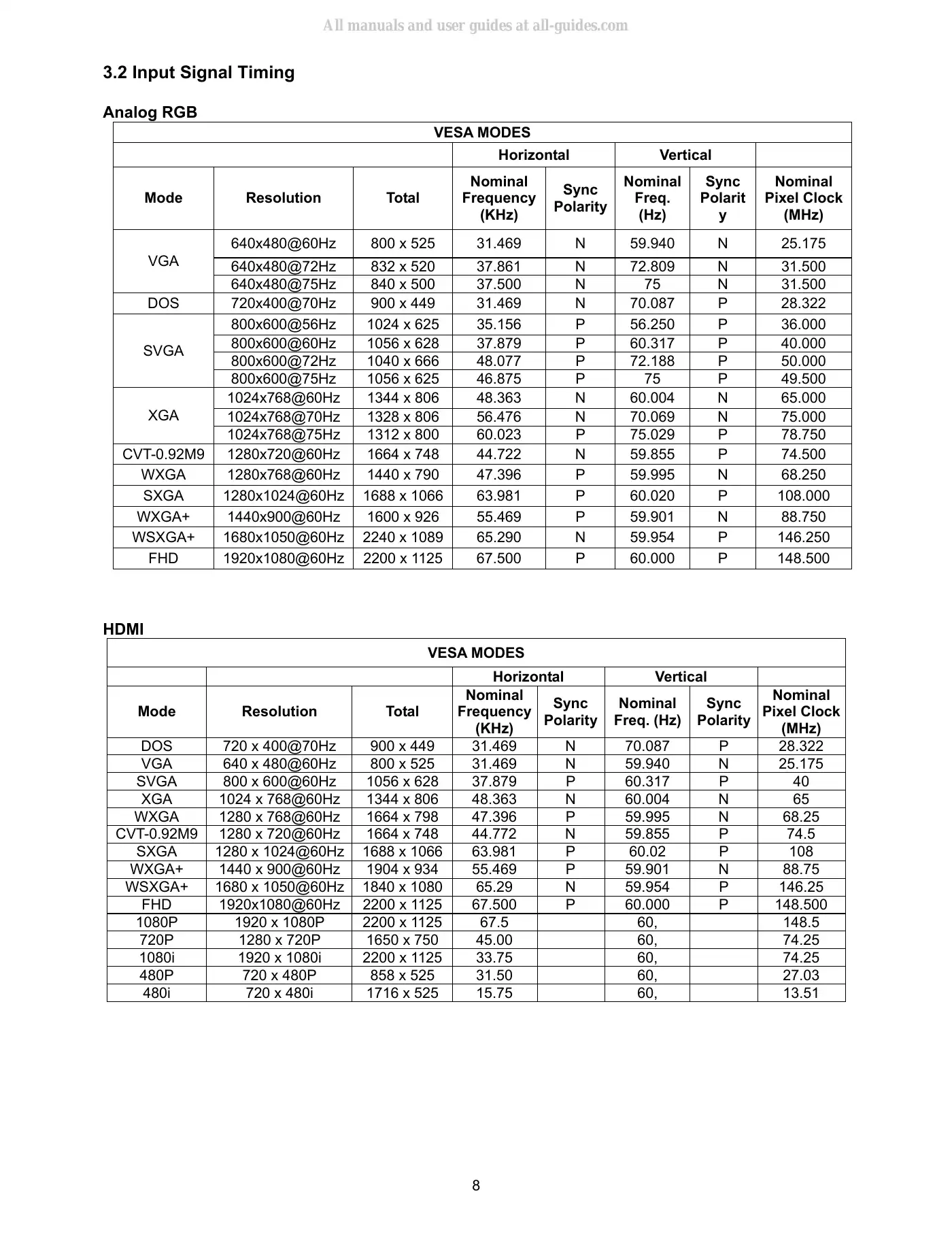

83.2 Input Signal TimingAnalog RGBVESA MODESHorizontal VerticalMode Resolution TotalNominalFrequency(KHz)SyncPolarityNominalFreq.(Hz)SyncPolarityNominalPixel Clock(MHz)VGA640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500640x480@75Hz 840 x 500 37.500 N 75 N 31.500DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322SVGA800x600@56Hz 1024 x 625 35.156 P 56.250 P 36.000800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000800x600@75Hz 1056 x 625 46.875 P 75 P 49.500XGA1024x768@60Hz 1344 x 806 48.363 N 60.004 N 65.0001024x768@70Hz 1328 x 806 56.476 N 70.069 N 75.0001024x768@75Hz 1312 x 800 60.023 P 75.029 P 78.750CVT-0.92M9 1280x720@60Hz 1664 x 748 44.722 N 59.855 P 74.500WXGA 1280x768@60Hz 1440 x 790 47.396 P 59.995 N 68.250SXGA 1280x1024@60Hz 1688 x 1066 63.981 P 60.020 P 108.000WXGA+ 1440x900@60Hz 1600 x 926 55.469 P 59.901 N 88.750WSXGA+ 1680x1050@60Hz 2240 x 1089 65.290 N 59.954 P 146.250FHD 1920x1080@60Hz 2200 x 1125 67.500 P 60.000 P 148.500HDMIVESA MODESHorizontal VerticalMode Resolution TotalNominalFrequency(KHz)SyncPolarityNominalFreq. (Hz)SyncPolarityNominalPixel Clock(MHz)DOS 720 x 400@70Hz 900 x 449 31.469 N 70.087 P 28.322VGA 640 x 480@60Hz 800 x 525 31.469 N 59.940 N 25.175SVGA 800 x 600@60Hz 1056 x 628 37.879 P 60.317 P 40XGA 1024 x 768@60Hz 1344 x 806 48.363 N 60.004 N 65WXGA 1280 x 768@60Hz 1664 x 798 47.396 P 59.995 N 68.25CVT-0.92M9 1280 x 720@60Hz 1664 x 748 44.772 N 59.855 P 74.5SXGA 1280 x 1024@60Hz 1688 x 1066 63.981 P 60.02 P 108WXGA+ 1440 x 900@60Hz 1904 x 934 55.469 P 59.901 N 88.75WSXGA+ 1680 x 1050@60Hz 1840 x 1080 65.29 N 59.954 P 146.25FHD 1920x1080@60Hz 2200 x 1125 67.500 P 60.000 P 148.5001080P 1920 x 1080P 2200 x 1125 67.5 60, 148.5720P 1280 x 720P 1650 x 750 45.00 60, 74.251080i 1920 x 1080i 2200 x 1125 33.75 60, 74.25480P 720 x 480P 858 x 525 31.50 60, 27.03480i 720 x 480i 1716 x 525 15.75 60, 13.51All manuals and user guides at all-guides.com
