Haier HLC24XLP Service Manual

Also see for HLC24XLPW2: User manual Service manual

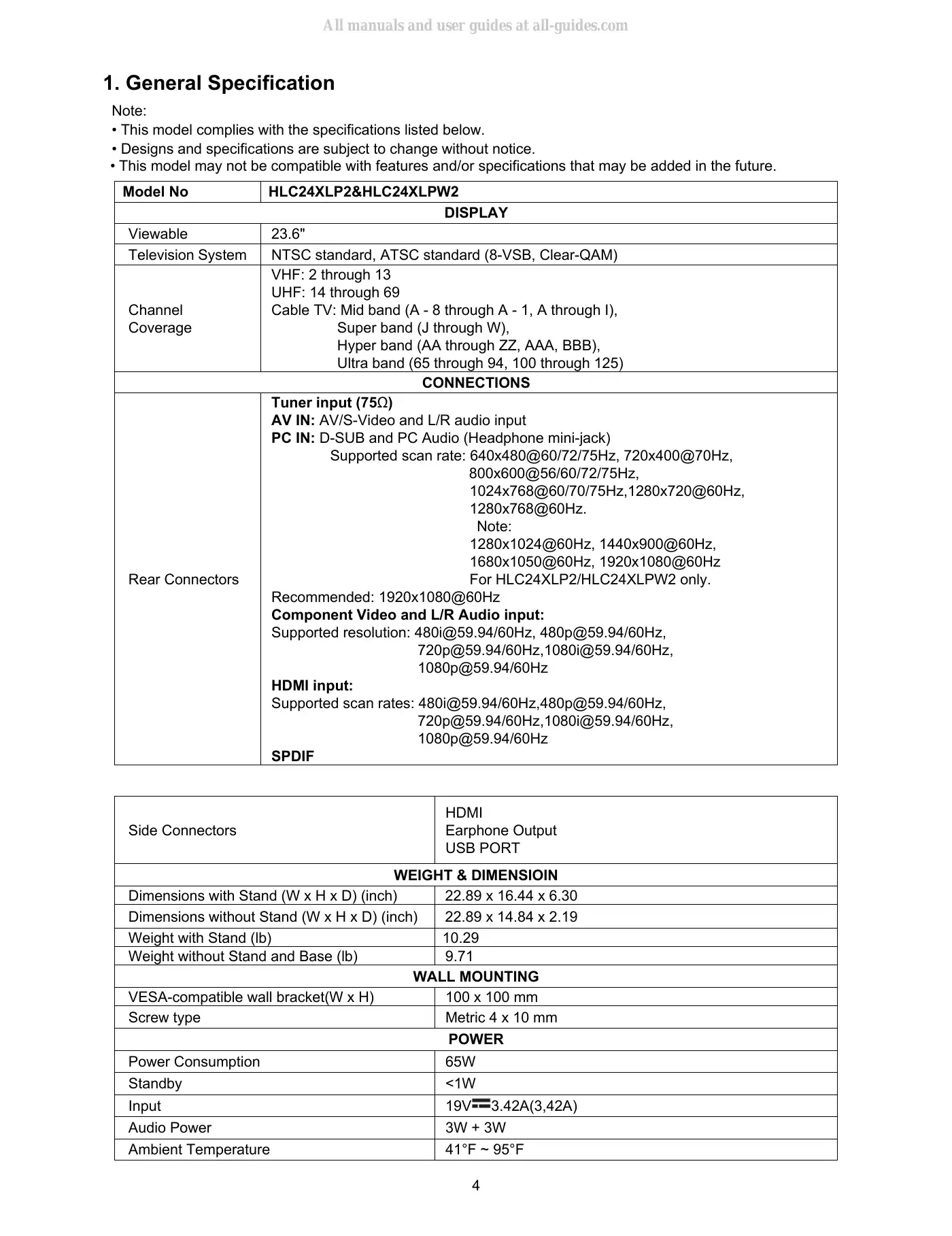

41. General SpecificationNote:• This model complies with the specifications listed below.• Designs and specifications are subject to change without notice.• This model may not be compatible with features and/or specifications that may be added in the future.Side ConnectorsHDMIEarphone OutputUSB PORTWEIGHT & DIMENSIOINDimensions with Stand (W x H x D) (inch) 22.89 x 16.44 x 6.30Dimensions without Stand (W x H x D) (inch) 22.89 x 14.84 x 2.19Weight with Stand (lb) 10.29Weight without Stand and Base (lb) 9.71WALL MOUNTINGVESA-compatible wall bracket(W x H) 100 x 100 mmScrew type Metric 4 x 10 mmPOWERPower Consumption 65WStandby <1WInput 19V 3.42A(3,42A)Audio Power 3W + 3WAmbient Temperature 41°F ~ 95°FModel No HLC24XLP2&HLC24XLPW2DISPLAYViewable 23.6"Television System NTSC standard, ATSC standard (8-VSB, Clear-QAM)ChannelCoverageVHF: 2 through 13UHF: 14 through 69Cable TV: Mid band (A - 8 through A - 1, A through I),Super band (J through W),Hyper band (AA through ZZ, AAA, BBB),Ultra band (65 through 94, 100 through 125)CONNECTIONSRear ConnectorsTuner input (75Ω)AV IN: AV/S-Video and L/R audio inputPC IN: D-SUB and PC Audio (Headphone mini-jack)Supported scan rate: 640x480@60/72/75Hz, 720x400@70Hz,800x600@56/60/72/75Hz,1024x768@60/70/75Hz,1280x720@60Hz,1280x768@60Hz.Note:1280x1024@60Hz, 1440x900@60Hz,1680x1050@60Hz, 1920x1080@60HzFor HLC24XLP2/HLC24XLPW2 only.Recommended: 1920x1080@60HzComponent Video and L/R Audio input:Supported resolution: 480i@59.94/60Hz, 480p@59.94/60Hz,720p@59.94/60Hz,1080i@59.94/60Hz,1080p@59.94/60HzHDMI input:Supported scan rates: 480i@59.94/60Hz,480p@59.94/60Hz,720p@59.94/60Hz,1080i@59.94/60Hz,1080p@59.94/60HzSPDIFAll manuals and user guides at all-guides.com

/ 52
