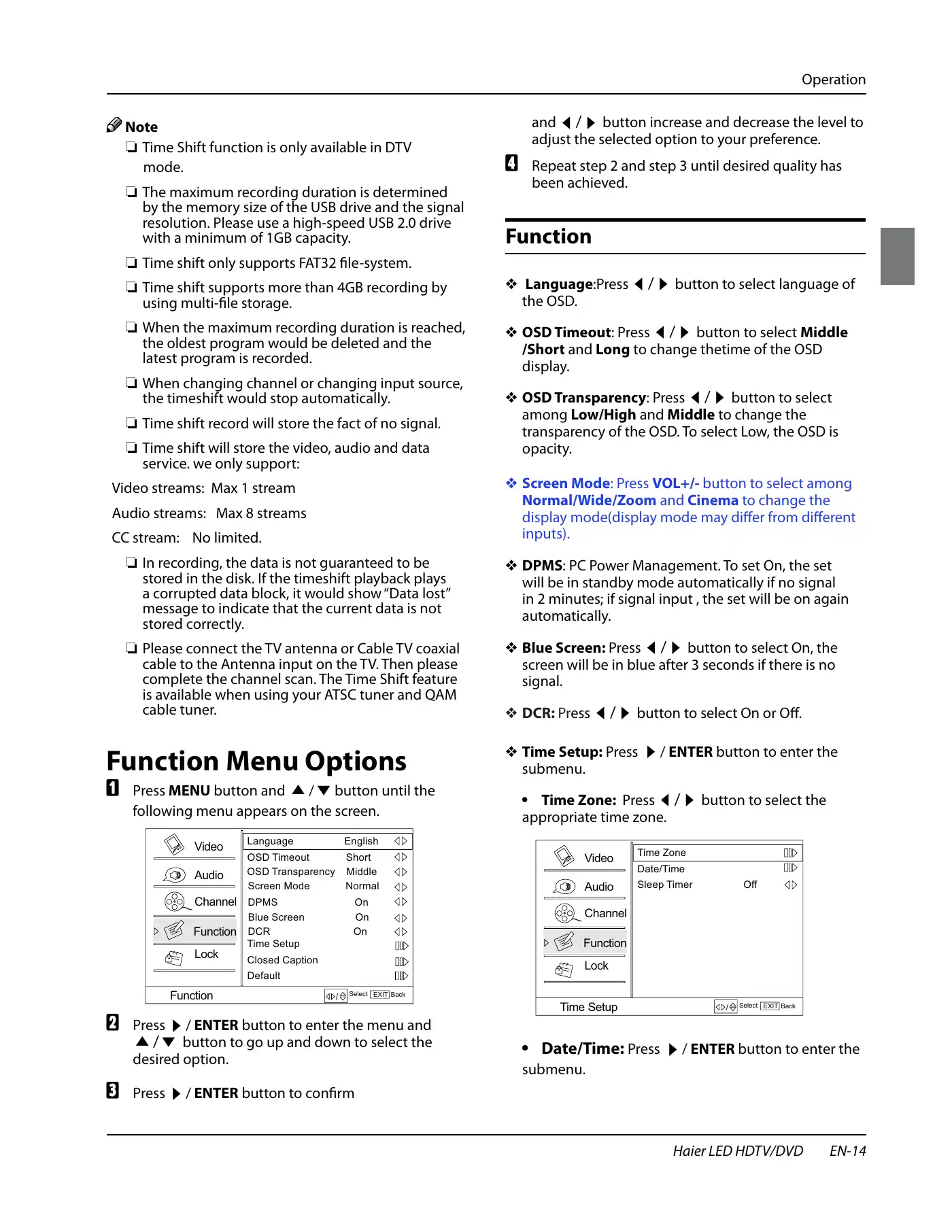

Haier HLC24XK2 Owner's Manual Manual pdf 15 page image

OperationHaier LED HDTV/DVD EN-14NoteTime Shift function is only available in DTVRmode.The maximum recording duration is determinedRby the memory size of the USB drive and the signalresolution. Please use a high-speed USB 2.0 drivewith a minimum of 1GB capacity.Time shift only supports FAT32 file-system.RTime shift supports more than 4GB recording byRusing multi-file storage.When the maximum recording duration is reached,R the oldest program would be deleted and thelatest program is recorded.When changing channel or changing input source,Rthe timeshift would stop automatically.Time shift record will store the fact of no signal.RTime shift will store the video, audio and dataRservice. we only support:Video streams: Max 1 streamAudio streams: Max 8 streamsCC stream: No limited.In recording, the data is not guaranteed to beRstored in the disk. If the timeshift playback playsa corrupted data block, it would show “Data lost”message to indicate that the current data is notstored correctly.Please connect the TV antenna or Cable TV coaxialRcable to the Antenna input on the TV. Then pleasecomplete the channel scan. The Time Shift featureis available when using your ATSC tuner and QAMcable tuner.Function Menu OptionsPressA MENU button and 5/6button until thefollowing menu appears on the screen.FunctionLanguage EnglishOSD Timeout ShortOSD Transparency MiddleDCR OnBlue Screen OnTime SetupClosed CaptionDefaultSelect BackEXITVideoAudioChannelLockFunctionDPMS OnScreen Mode Normal/PressB 4/ ENTER button to enter the menu and5/6 button to go up and down to select thedesired option.PressC 4/ ENTER button to confirmand3/4button increase and decrease the level toadjust the selected option to your preference.Repeat step 2 and step 3 until desired quality hasD been achieved.FunctionLanguageY :Press3/4button to select language ofthe OSD.OSD TimeoutY : Press3/4button to select Middle/Short and Long to change thetime of the OSDdisplay.OSD TransparencyY : Press3/4button to selectamong Low/High and Middle to change thetransparency of the OSD. To select Low, the OSD isopacity.Screen ModeY : Press VOL+/- button to select amongNormal/Wide/Zoom and Cinema to change thedisplay mode(display mode may differ from differentinputs).DPMSY : PC Power Management. To set On, the setwill be in standby mode automatically if no signalin 2 minutes; if signal input , the set will be on againautomatically.Blue Screen:Y Press3/4button to select On, thescreen will be in blue after 3 seconds if there is nosignal.DCR:Y Press3/4button to select On or Off.Time Setup:Y Press4/ ENTER button to enter thesubmenu.Time Zone:• Press3/4button to select theappropriate time zone.Time SetupTime ZoneDate/TimeSleep Timer OffSelect BackEXITVideoAudioChannelLockFunction/Date/Time:• Press4/ ENTER button to enter thesubmenu.
