Haier HLC22XSLW2 Service Manual

Also see for HLC22XSL2: Troubleshooting guide Owner's manual

Contents

Chapter 1: General Information4

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 5. Installation Instructions19

Chapter 6. Operation Instructions24

Chapter 7. Electrical Parts26

Haier HLC22XSLW2 Service Manual Manual pdf 9 page image

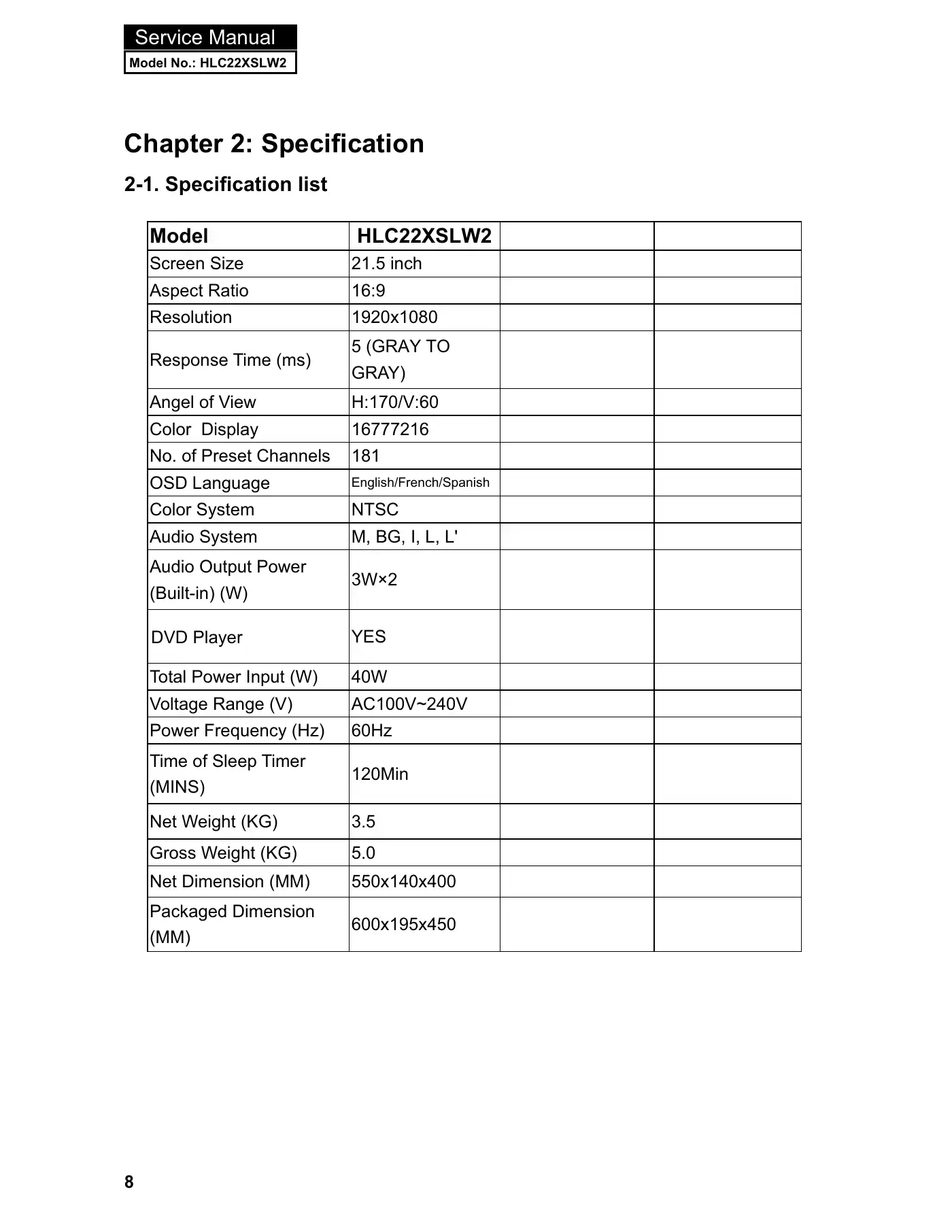

Service ManualModel No.: HLC22XSLW28Model HLC22XSLW2Screen Size 21.5 inchAspect Ratio 16:9Resolution 1920x1080Response Time (ms) 5 (GRAY TOGRAY)Angel of View H:170/V:60Color Display 16777216No. of Preset Channels 181OSD Language English/French/SpanishColor System NTSCAudio System M, BG, I, L, L'Audio Output Power(Built-in) (W) 3W×2YESTotal Power Input (W) 40WVoltage Range (V) AC100V~240V3RZHU)UHTXHQF\ +] 60HzTime of Sleep Timer(MINS) 120MinNet Weight (KG) 3.5Gross Weight (KG) 5.0Net Dimension (MM) 550x140x400Packaged Dimension(MM) 600x195x450&KDSWHU6SHFL¿FDWLRQ6SHFL¿FDWLRQOLVWDVD Player
