Haier HLC22XSLW2 Service Manual

Also see for HLC22XSL2: Troubleshooting guide Owner's manual

Contents

Chapter 1: General Information4

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 5. Installation Instructions19

Chapter 6. Operation Instructions24

Chapter 7. Electrical Parts26

Haier HLC22XSLW2 Service Manual Manual pdf 24 page image

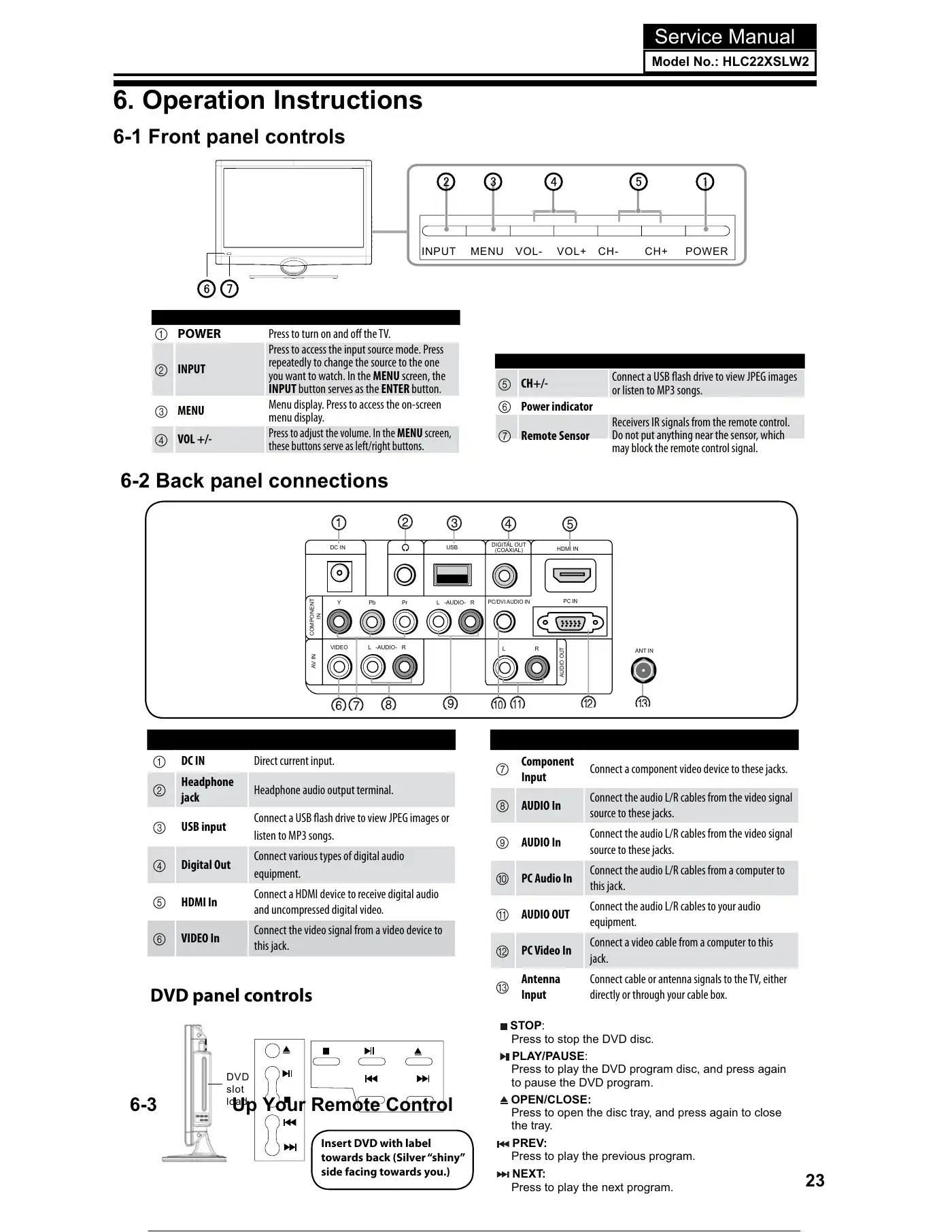

236. Operation Instructions6-1 Front panel controls6-2 Back panel connectionsService ManualINPUT MENU VOL- VOL+ CH- CH+ POWER1 POWER Press to turn on and off the TV.2 INPUTPress to access the input source mode. Pressrepeatedly to change the source to the oneyou want to watch. In the MENU screen, theINPUT button serves as the ENTER button.3 MENU Menu display. Press to access the on-screenmenu display.4 VOL +/- Press to adjust the volume. In the MENU screen,these buttons serve as left/right buttons.5 CH+/- Connect a USB flash drive to view JPEG imagesor listen to MP3 songs.6 Power indicator7 Remote SensorReceivers IR signals from the remote control.Do not put anything near the sensor, whichmay block the remote control signal.DC INVIDEOAV IN COMPONENTINY Pb PrUSBPC/DVI AUDIO INAUDIO OUTPC INL -AUDIO- RL RL -AUDIO- RHDMI INANT INDIGITAL OUT(COAXIAL)1 DC IN Direct current input.2 Headphonejack Headphone audio output terminal.3 USB input Connect a USB flash drive to view JPEG images orlisten to MP3 songs.4 Digital Out Connect various types of digital audioequipment.5 HDMI In Connect a HDMI device to receive digital audioand uncompressed digital video.6 VIDEO In Connect the video signal from a video device tothis jack.7 ComponentInput Connect a component video device to these jacks.8 AUDIO In Connect the audio L/R cables from the video signalsource to these jacks.9 AUDIO In Connect the audio L/R cables from the video signalsource to these jacks.0 PC Audio In Connect the audio L/R cables from a computer tothis jack.A AUDIO OUT Connect the audio L/R cables to your audioequipment.B PC Video In Connect a video cable from a computer to thisjack.C AntennaInputConnect cable or antenna signals to the TV, eitherdirectly or through your cable box.6-3 Setting Up Your Remote ControlModel No.: HLC22XSLW2DVD panel controlsDVDslotloadSTOP:Press to stop the DVD disc.PLAY/PAUSE:Press to play the DVD program disc, and press againto pause the DVD program.OPEN/CLOSE:Press to open the disc tray, and press again to closethe tray.PREV:Press to play the previous program.NEXT:Press to play the next program.Insert DVD with labeltowards back (Silver “shiny”side facing towards you.)

/ 26
