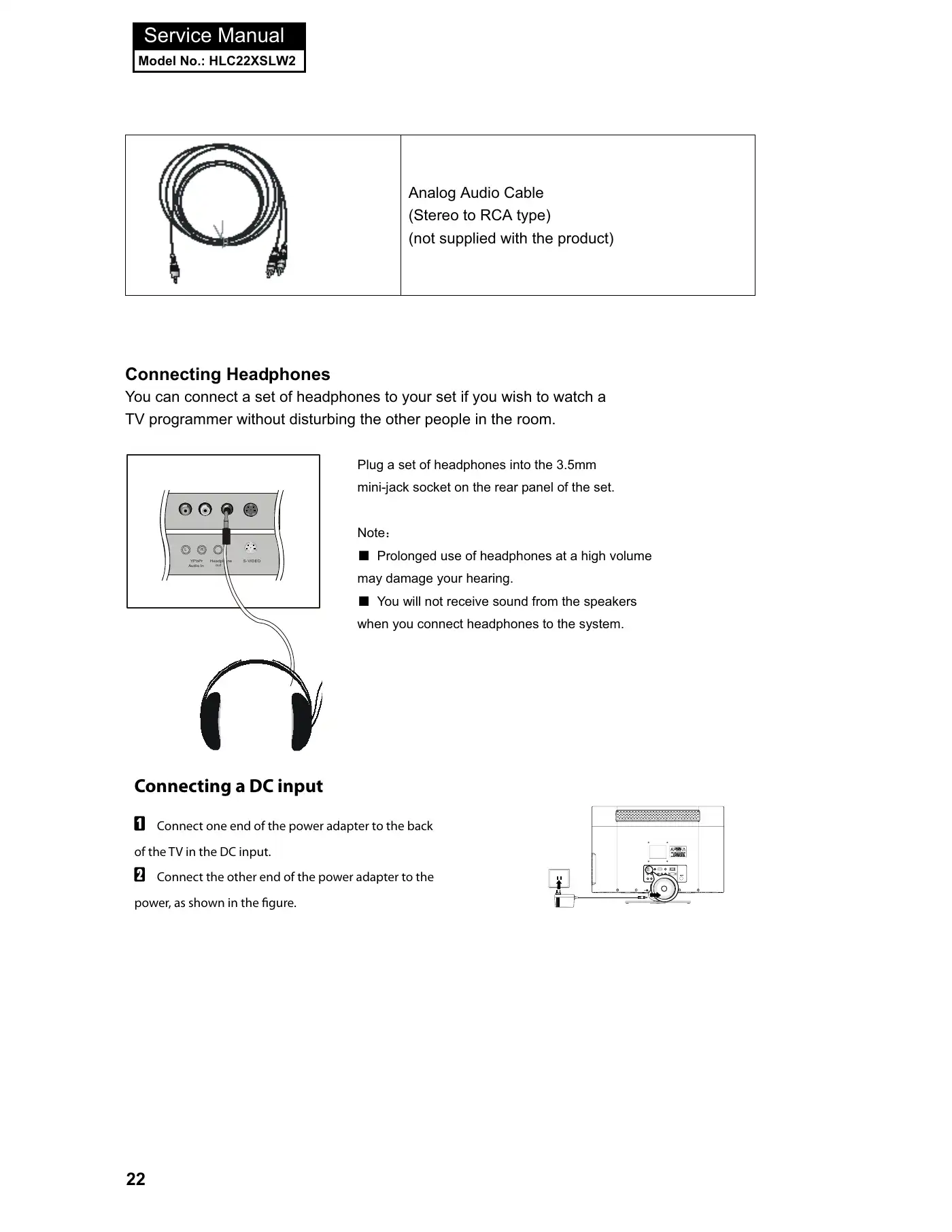

Haier HLC22XSLW2 Service Manual Manual pdf 23 page image

22Connecting HeadphonesYou can connect a set of headphones to your set if you wish to watch aTV programmer without disturbing the other people in the room.Plug a set of headphones into the 3.5mmmini-jack socket on the rear panel of the set.Note˖Ƶ Prolonged use of headphones at a high volumemay damage your hearing.Ƶ You will not receive sound from the speakerswhen you connect headphones to the system.Analog Audio Cable(Stereo to RCA type)(not supplied with the product)YPbPrAudio InL RHeadphoneoutS- VIDEOService ManualModel No.: HLC22XSLW2Connecting a DC inputConnect one end of the power adapter to the backAof the TV in the DC input.Connect the other end of the power adapter to theBpower, as shown in the figure.
