Haier HLC22XSLW2 Service Manual

Also see for HLC22XSL2: Troubleshooting guide Owner's manual

Contents

Chapter 1: General Information4

Chapter 3. Disassemble and Assemble12

Chapter 4. Location of Controls and Components14

Chapter 5. Installation Instructions19

Chapter 6. Operation Instructions24

Chapter 7. Electrical Parts26

Haier HLC22XSLW2 Service Manual Manual pdf 12 page image

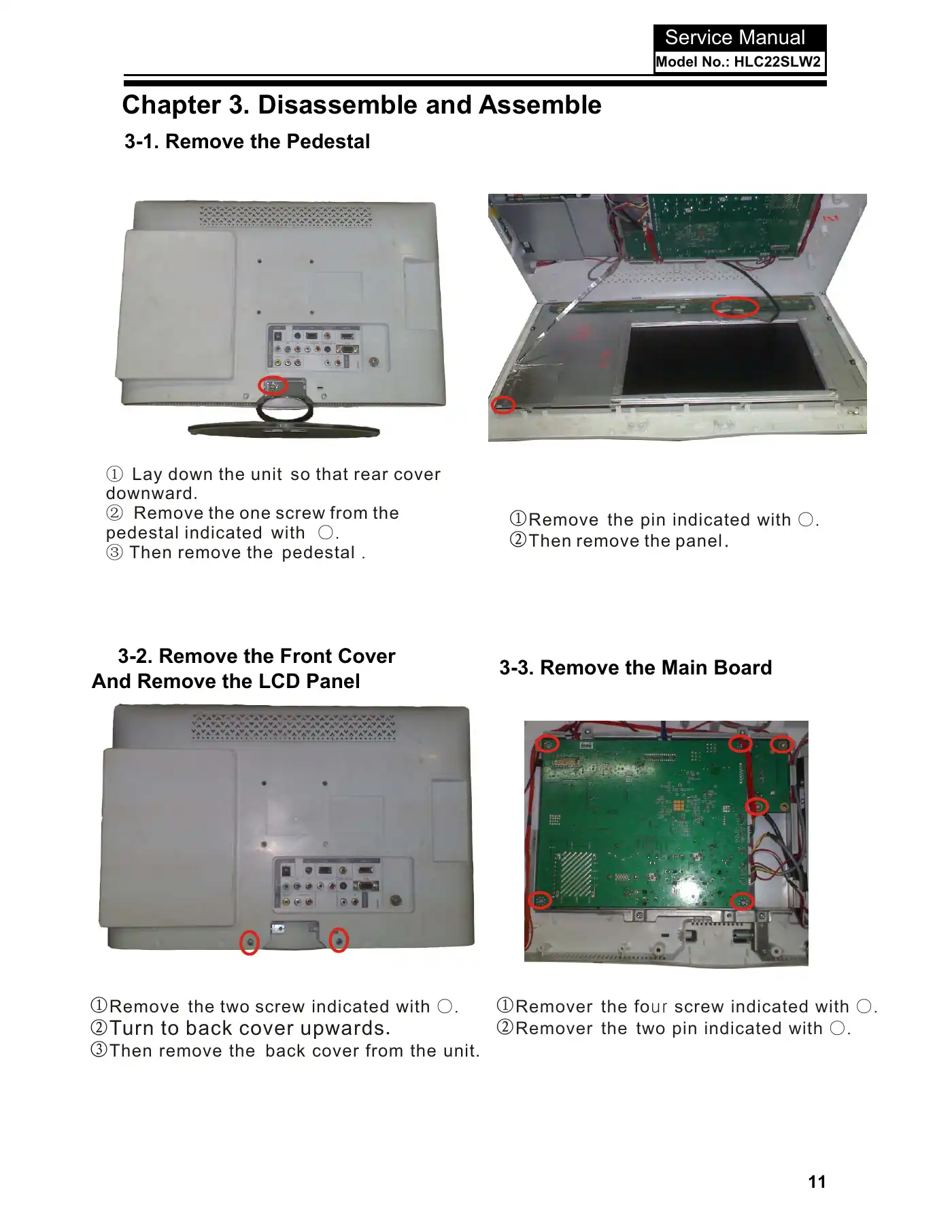

①②Remover the fo screw indicated withRemover the two pin indicated withur ○.○.Chapter 3. Disassemble and Assemble3-1. Remove the Pedestal3-2. Remove the Front CoverAnd Remove the LCD Panel 3-3. Remove the Main BoardService ManualModel No.: HLC22SLW211① Lay down the unit so that rear coverdownward.② Remove the one screw from thepedestal indicated with③○.Then remove the pedestal .①② .③Remove the two screw indicated with ○.Turn to back cover upwardsThen remove the back cover from the unit.①Remove the pin indicated with ○.②Then remove the panel.
