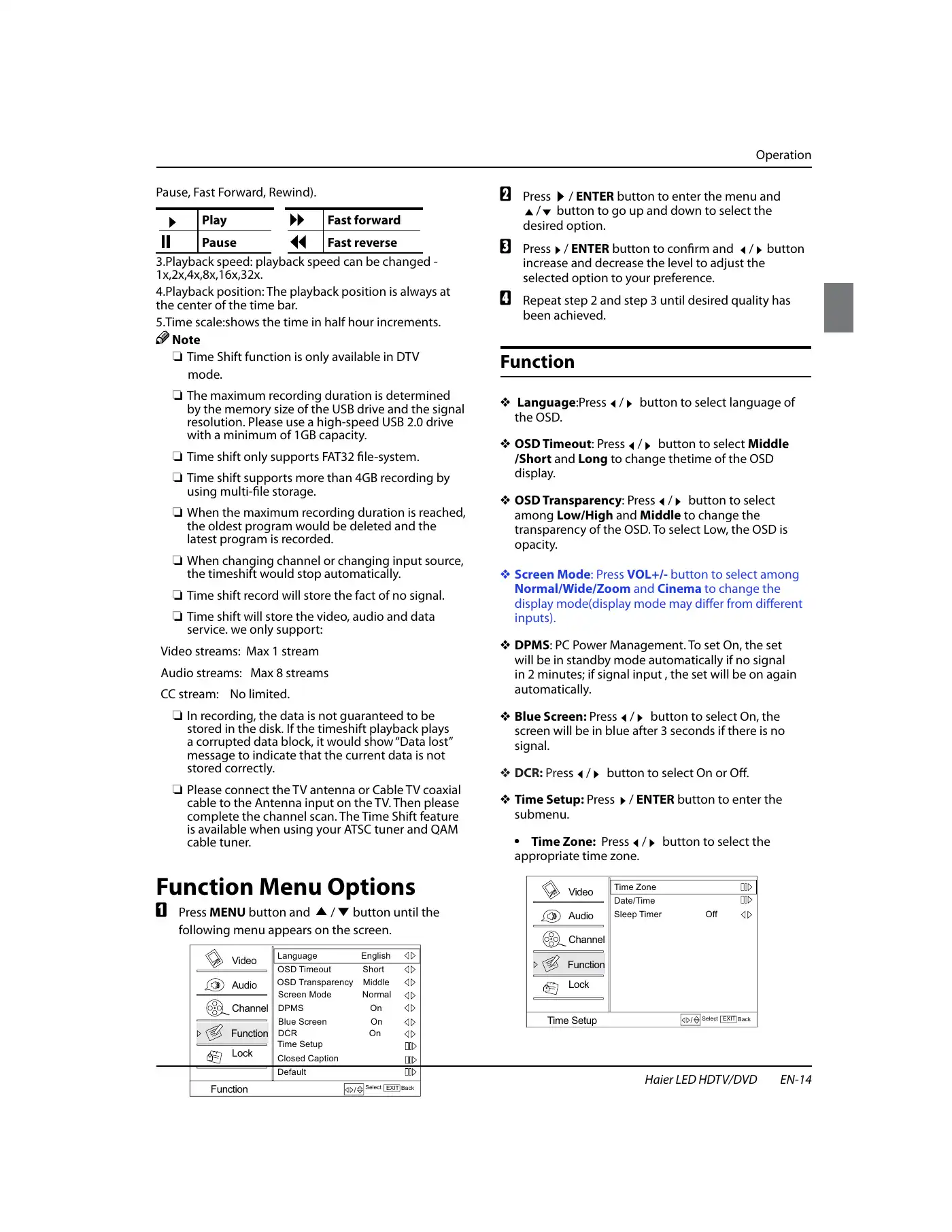

Haier HLC22XSLW2 Important Safety Instructions Manual Manual pdf 14 page image

OperationHaier LED HDTV/DVD EN-14Pause, Fast Forward, Rewind). Play Fast forwardPause Fast reverse3.Playback speed: playback speed can be changed -1x,2x,4x,8x,16x,32x.4.Playback position: The playback position is always atthe center of the time bar.5.Time scale:shows the time in half hour increments.NoteTime Shift function is only available in DTVRmode.The maximum recording duration is determinedRby the memory size of the USB drive and the signalresolution. Please use a high-speed USB 2.0 drivewith a minimum of 1GB capacity.Time shift only supports FAT32 file-system.RTime shift supports more than 4GB recording byRusing multi-file storage.When the maximum recording duration is reached,R the oldest program would be deleted and thelatest program is recorded.When changing channel or changing input source,R the timeshift would stop automatically.Time shift record will store the fact of no signal.RTime shift will store the video, audio and dataR service. we only support:Video streams: Max 1 streamAudio streams: Max 8 streamsCC stream: No limited.In recording, the data is not guaranteed to beR stored in the disk. If the timeshift playback playsa corrupted data block, it would show “Data lost”message to indicate that the current data is notstored correctly.Please connect the TV antenna or Cable TV coaxialR cable to the Antenna input on the TV. Then pleasecomplete the channel scan. The Time Shift featureis available when using your ATSC tuner and QAMcable tuner.Function Menu OptionsPressA MENU button and /button until thefollowing menu appears on the screen.FunctionLanguage EnglishOSD Timeout ShortOSD Transparency MiddleDCR OnBlue Screen OnTime SetupClosed CaptionDefaultSelect BackEXITVideoAudioChannelLockFunctionDPMS OnScreen Mode Normal/PressB / ENTER button to enter the menu and/ button to go up and down to select thedesired option.PressC / ENTER button to confirm and /buttonincrease and decrease the level to adjust theselected option to your preference.Repeat step 2 and step 3 until desired quality hasD been achieved.FunctionLanguageY :Press/ button to select language ofthe OSD.OSD TimeoutY : Press/ button to select Middle/Short and Long to change thetime of the OSDdisplay.OSD TransparencyY : Press/ button to selectamong Low/High and Middle to change thetransparency of the OSD. To select Low, the OSD isopacity.Screen ModeY : Press VOL+/- button to select amongNormal/Wide/Zoom and Cinema to change thedisplay mode(display mode may differ from differentinputs).DPMSY : PC Power Management. To set On, the setwill be in standby mode automatically if no signalin 2 minutes; if signal input , the set will be on againautomatically.Blue Screen:Y Press/ button to select On, thescreen will be in blue after 3 seconds if there is nosignal.DCR:Y Press/ button to select On or Off.Time Setup:Y Press/ ENTER button to enter thesubmenu.Time Zone:q Press/ button to select theappropriate time zone.Time SetupTime ZoneDate/TimeSleep Timer OffSelect BackEXITVideoAudioChannelLockFunction/
