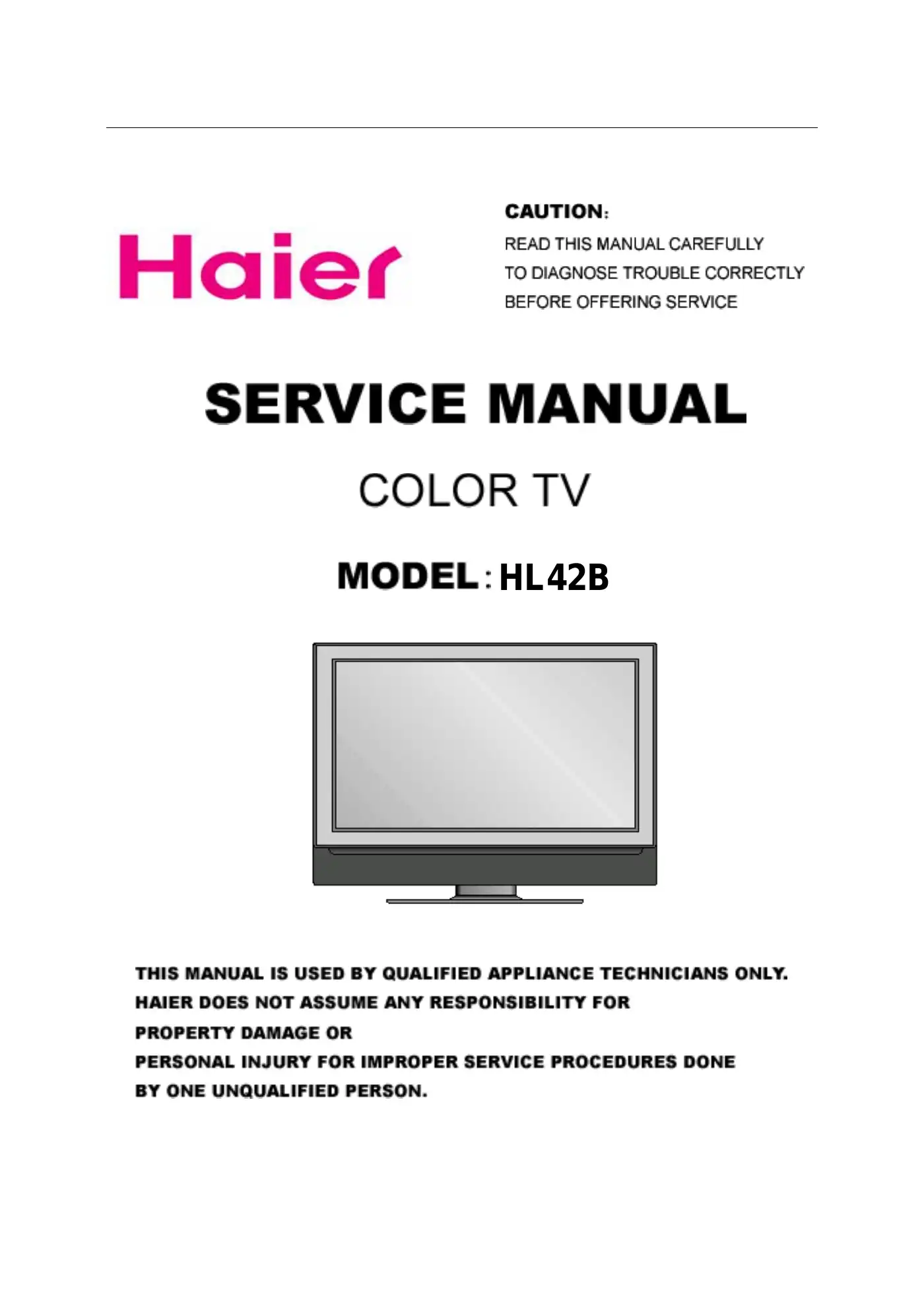

Haier HL42B Service Manual

The Haier HL42B supports programmable timers, which allow you to schedule the TV to turn on or off at specific times. You can access this feature through the TV's menu settings.

The Haier HL42B supports a variety of inputs, including 2 HDMI inputs, 2 component video inputs, 2 composite video inputs, 1 S-video input, 1 RF input, 1 PC input, and 1 USB port. For audio, it has 2 analog audio inputs for component, 2 for composite and S-video, 1 PC audio input, 1 optical audio out, and 1 headphone jack.

To access the Factory Menu on the Haier HL42B, you need to navigate to the root menu where you will find five items: Product Mode, Aging Mode, Shop End, Service Mode, and Design Mode.

The Product Mode within the Factory Menu includes three items: White Balance Setting and Back Light Set to Factory Default Value. It is advised not to change the value commonly.

The Threshold setting in the Video Setting allows you to change the adjustable range of brightness, contrast, chroma, hue, and sharpness.

To ensure VDAC_AVDD33 has a clean supply, it is recommended to use a small linear regulator if you are using switching supplies. Additionally, route VDAC_AVDD33 as a wide trace or fill area on the top layer of the PCB all the way to the connector.

The 12V_SW component is a switch that controls the 12V power supply in the Haier HL42B. It is mentioned multiple times in the provided content, indicating its importance in the power management of the device.

To troubleshoot issues related to the 5V_BCM3560 component, you should check the associated capacitors (C220, C537, C538, C539, C540) and resistors (R313, R312, R11) for any signs of failure or malfunction. Ensure that the voltage levels are within the specified range and that all connections are secure.

The 100 ohm impedance routing for TDP/M and RDP/M pairs is used to ensure differential, matched short lengths, adjacent to the ground plane. This is crucial for maintaining signal integrity and minimizing interference.

The capacitor labeled C250 has a voltage rating of 6.3V and a capacitance of 10uF.
