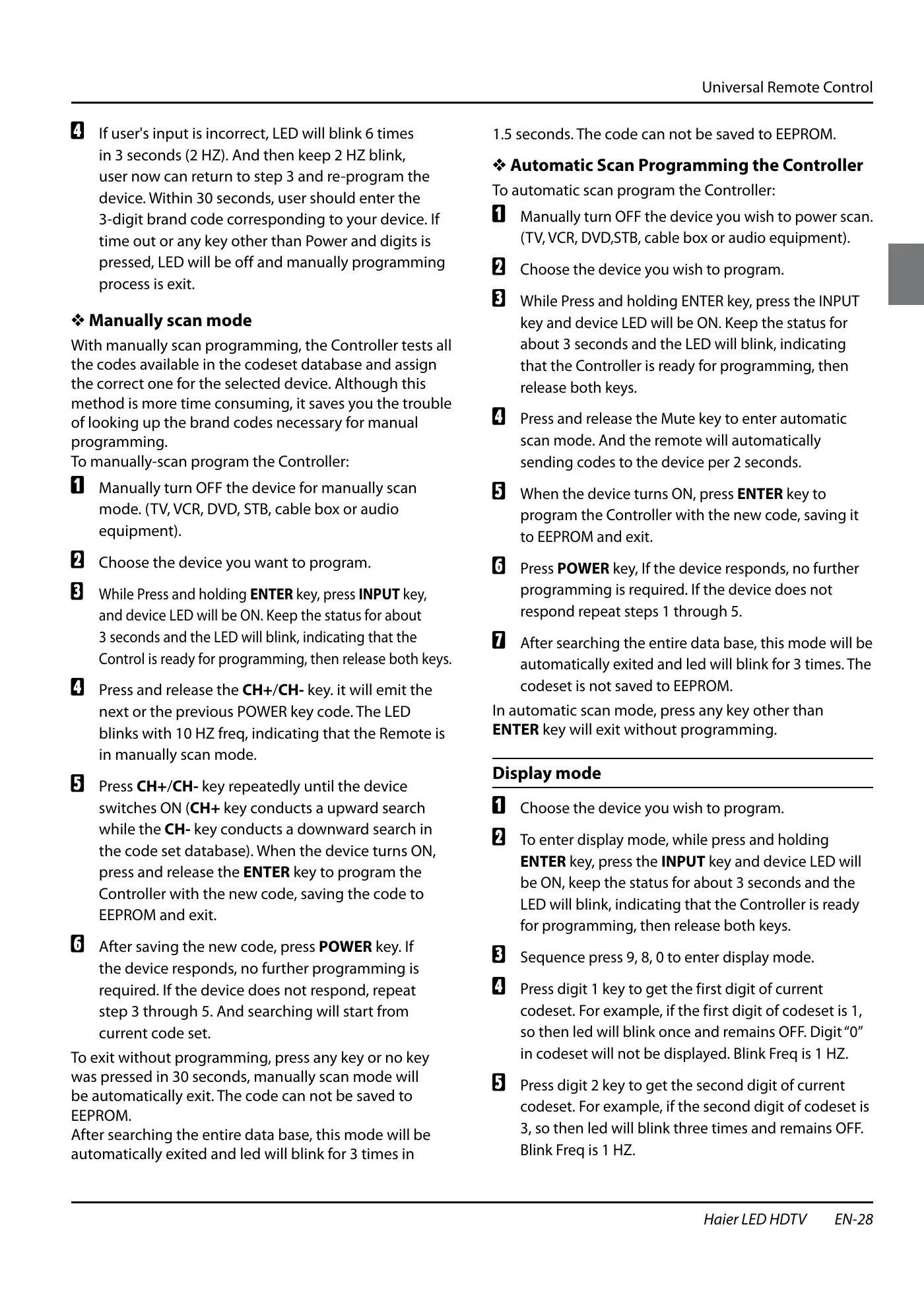

Universal Remote ControlHaier LED HDTV EN-28If user's input is incorrect, LED will blink 6 timesD in 3 seconds (2 HZ). And then keep 2 HZ blink,user now can return to step 3 and re-program thedevice. Within 30 seconds, user should enter the3-digit brand code corresponding to your device. Iftime out or any key other than Power and digits ispressed, LED will be off and manually programmingprocess is exit.Manually scan modeYWith manually scan programming, the Controller tests allthe codes available in the codeset database and assignthe correct one for the selected device. Although thismethod is more time consuming, it saves you the troubleof looking up the brand codes necessary for manualprogramming.To manually-scan program the Controller:Manually turn OFF the device for manually scanA mode. (TV, VCR, DVD, STB, cable box or audioequipment).Choose the device you want to program.BWhile Press and holdingC ENTER key, press INPUT key,and device LED will be ON. Keep the status for about3 seconds and the LED will blink, indicating that theControl is ready for programming, then release both keys.Press and release theD CH+/CH- key. it will emit thenext or the previous POWER key code. The LEDblinks with 10 HZ freq, indicating that the Remote isin manually scan mode.PressE CH+/CH- key repeatedly until the deviceswitches ON (CH+ key conducts a upward searchwhile the CH- key conducts a downward search inthe code set database). When the device turns ON,press and release the ENTER key to program theController with the new code, saving the code toEEPROM and exit.After saving the new code, pressF POWER key. Ifthe device responds, no further programming isrequired. If the device does not respond, repeatstep 3 through 5. And searching will start fromcurrent code set.To exit without programming, press any key or no keywas pressed in 30 seconds, manually scan mode willbe automatically exit. The code can not be saved toEEPROM.After searching the entire data base, this mode will beautomatically exited and led will blink for 3 times in1.5 seconds. The code can not be saved to EEPROM.Automatic Scan Programming the ControllerYTo automatic scan program the Controller:Manually turn OFF the device you wish to power scan.A (TV, VCR, DVD,STB, cable box or audio equipment).Choose the device you wish to program.BWhile Press and holding ENTER key, press the INPUTC key and device LED will be ON. Keep the status forabout 3 seconds and the LED will blink, indicatingthat the Controller is ready for programming, thenrelease both keys.Press and release the Mute key to enter automaticD scan mode. And the remote will automaticallysending codes to the device per 2 seconds.When the device turns ON, pressE ENTER key toprogram the Controller with the new code, saving itto EEPROM and exit.PressF POWER key, If the device responds, no furtherprogramming is required. If the device does notrespond repeat steps 1 through 5.After searching the entire data base, this mode will beG automatically exited and led will blink for 3 times. Thecodeset is not saved to EEPROM.In automatic scan mode, press any key other thanENTER key will exit without programming.Display modeChoose the device you wish to program.ATo enter display mode, while press and holdingB ENTER key, press the INPUT key and device LED willbe ON, keep the status for about 3 seconds and theLED will blink, indicating that the Controller is readyfor programming, then release both keys.Sequence press 9, 8, 0 to enter display mode.CPress digit 1 key to get the first digit of currentD codeset. For example, if the first digit of codeset is 1,so then led will blink once and remains OFF. Digit “0”in codeset will not be displayed. Blink Freq is 1 HZ.Press digit 2 key to get the second digit of currentE codeset. For example, if the second digit of codeset is3, so then led will blink three times and remains OFF.Blink Freq is 1 HZ.
