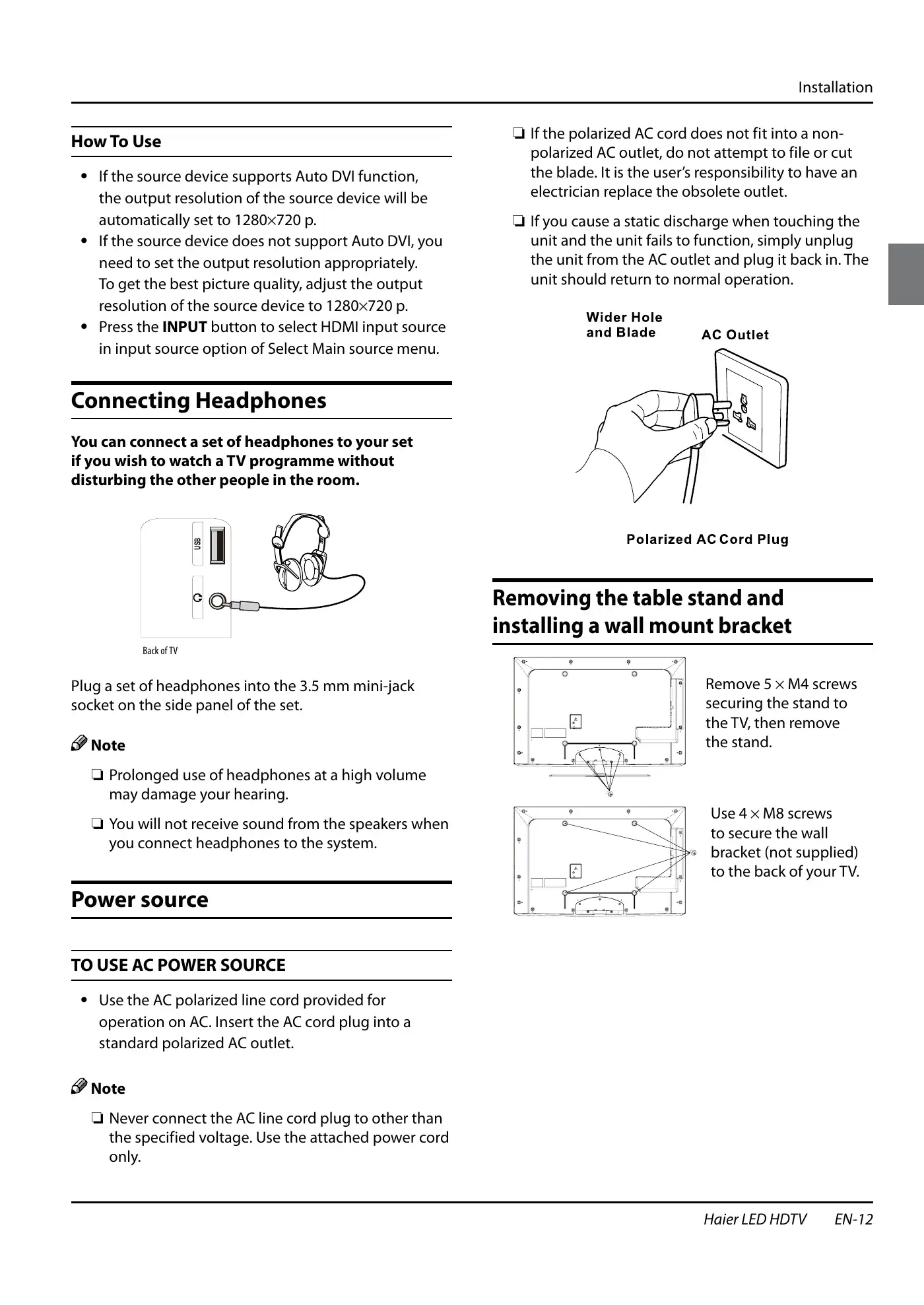

Haier HL40XSL2a Owner's Manual Manual pdf 13 page image

InstallationHaier LED HDTV EN-12How To UseIf the source device supports Auto DVI function,•the output resolution of the source device will beautomatically set to 1280×720 p.If the source device does not support Auto DVI, you•need to set the output resolution appropriately.To get the best picture quality, adjust the outputresolution of the source device to 1280×720 p.Press the• INPUT button to select HDMI input sourcein input source option of Select Main source menu.Connecting HeadphonesYou can connect a set of headphones to your setif you wish to watch a TV programme withoutdisturbing the other people in the room.USBBack of TVPlug a set of headphones into the 3.5 mm mini-jacksocket on the side panel of the set.NoteProlonged use of headphones at a high volumeRmay damage your hearing.You will not receive sound from the speakers whenRyou connect headphones to the system.Power sourceTO USE AC POWER SOURCEUse the AC polarized line cord provided for•operation on AC. Insert the AC cord plug into astandard polarized AC outlet.NoteNever connect the AC line cord plug to other thanRthe specified voltage. Use the attached power cordonly.If the polarized AC cord does not fit into a non-Rpolarized AC outlet, do not attempt to file or cutthe blade. It is the user’s responsibility to have anelectrician replace the obsolete outlet.If you cause a static discharge when touching theRunit and the unit fails to function, simply unplugthe unit from the AC outlet and plug it back in. Theunit should return to normal operation.Removing the table stand andinstalling a wall mount bracketRemove 5 × M4 screwssecuring the stand tothe TV, then removethe stand.Use 4 × M8 screwsto secure the wallbracket (not supplied)to the back of your TV.

/ 39

Questions and answers

Heed help?

Ask question about this manual

Frequently asked questions

To prevent fire or shock hazard, do not expose this appliance to rain or moisture. Page 2

The model number and serial number are located on a label at the back of the unit. Page 4

Staple your receipt to this manual. You will need it to obtain warranty service. Page 4

The INPUT button allows you to change the input source mode. Press it repeatedly to cycle through different sources until you reach the one you want to watch. In the MENU screen, this button serves as the ENTER button. Page 6

The MENU button opens the on-screen menu, allowing you to navigate through various settings and adjust system preferences. Page 8

The playback speed can be changed to 1x, 2x, 4x, 8x, 16x, or 32x. Page 16

DPMS can be enabled by setting it to 'On'. When enabled, the set will automatically go into standby mode if no signal is received for 2 minutes. Note that this feature is only useful with a VGA source. Page 20

To select a desired video folder, press the 5/6/3/4 button to navigate through the folders and then press the ENTER button to enter the play interface. Page 28
