Haier HL32XSL2 Service Manual

Also see for HL32XSL2:

Contents
  1. Table of Contents2
  2. Chapter 1.General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble11
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions21
  7. Chapter 6. Operation Instructions24
  8. Chapter 7. Electrical Parts27
  9. Chapter 8. Measurements and Adjustments48
  10. Chapter 9. Trouble Shooting51

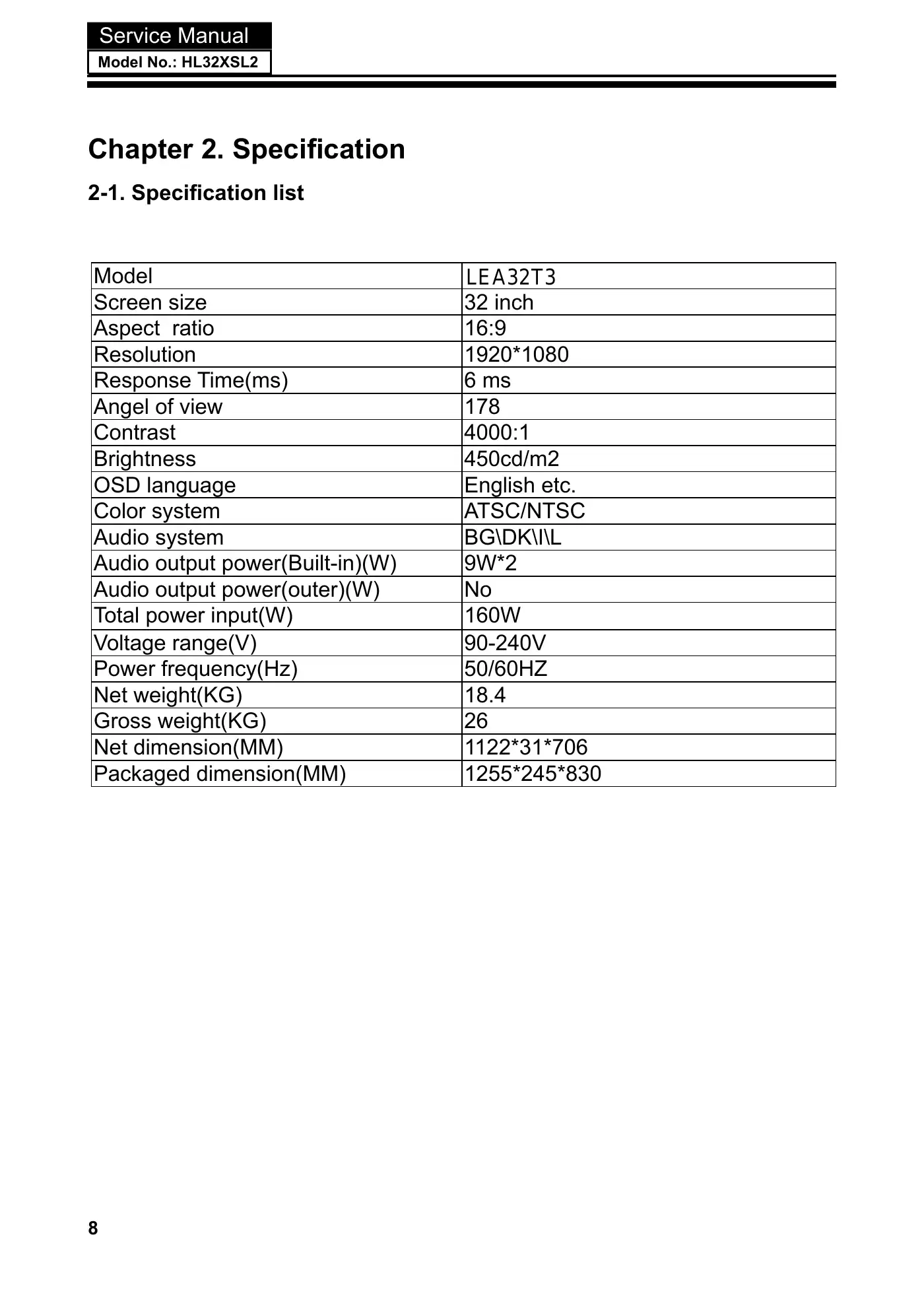

Haier HL32XSL2 Service Manual Manual pdf 9 page image
Service ManualModel No.: HL32XSL28Chapter 2. Specification2-1. Specification listModelScreen size 32 inchAspect ratio 16:9Resolution 1920*1080Response Time(ms) 6 msAngel of view 178Contrast 4000:1Brightness 450cd/m2OSD language English etc.Color system ATSC/NTSCAudio system BG\DK\I\LAudio output power(Built-in)(W) 9W*2Audio output power(outer)(W) NoTotal power input(W) 160WVoltage range(V) 90-240VPower frequency(Hz) 50/60HZNet weight(KG) 18.4Gross weight(KG) 26Net dimension(MM) 1122*31*706Packaged dimension(MM) 1255*245*830LEA32T3
