Haier HL32XSL2 Service Manual

Also see for HL32XSL2:

Contents
  1. Table of Contents2
  2. Chapter 1.General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble11
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions21
  7. Chapter 6. Operation Instructions24
  8. Chapter 7. Electrical Parts27
  9. Chapter 8. Measurements and Adjustments48
  10. Chapter 9. Trouble Shooting51

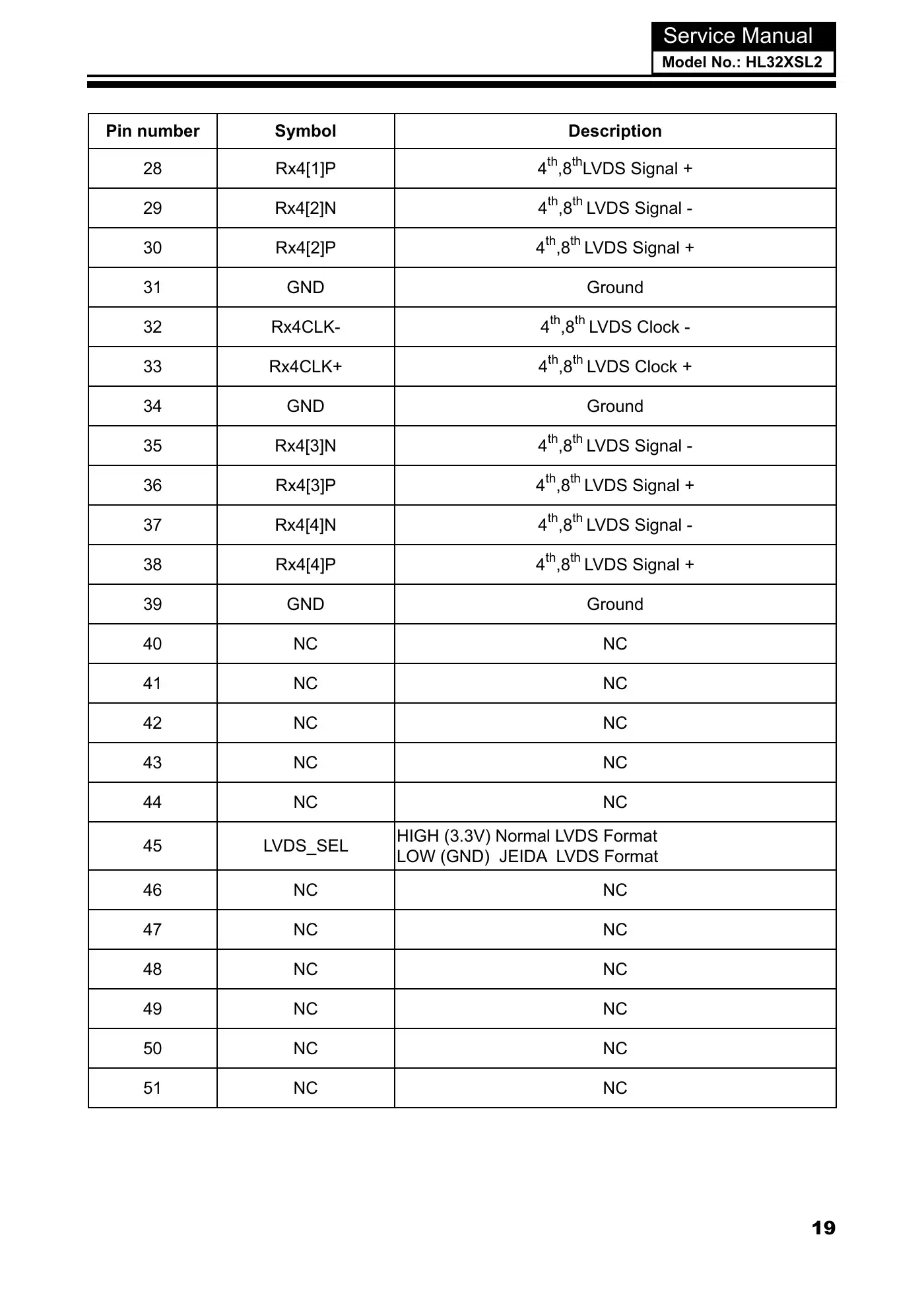

Haier HL32XSL2 Service Manual Manual pdf 20 page image
Pin number Symbol Description28 Rx4[1]P 4th,8thLVDS Signal +29 Rx4[2]N 4th,8th LVDS Signal -30 Rx4[2]P 4th,8th LVDS Signal +31 GND Ground32 Rx4CLK- 4 th,8th LVDS Clock -33 Rx4CLK+ 4 th,8th LVDS Clock +34 GND Ground35 Rx4[3]N 4 th,8th LVDS Signal -36 Rx4[3]P 4th,8th LVDS Signal +37 Rx4[4]N 4th,8th LVDS Signal -38 Rx4[4]P 4th,8th LVDS Signal +39 GND Ground40 NC NC41 NC NC42 NC NC43 NC NC44 NC NC45 LVDS_SEL HIGH (3.3V) Normal LVDS FormatLOW (GND) JEIDA LVDS Format46 NC NC47 NC NC48 NC NC49 NC NC50 NC NC51 NC NCService ManualModel No.: HL32XSL219
/ 59
