Haier HL32XSL2 Service Manual

Also see for HL32XSL2:

Contents
  1. Table of Contents2
  2. Chapter 1.General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble11
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions21
  7. Chapter 6. Operation Instructions24
  8. Chapter 7. Electrical Parts27
  9. Chapter 8. Measurements and Adjustments48
  10. Chapter 9. Trouble Shooting51
Haier HL32XSL2 Service Manual Manual pdf 19 page image

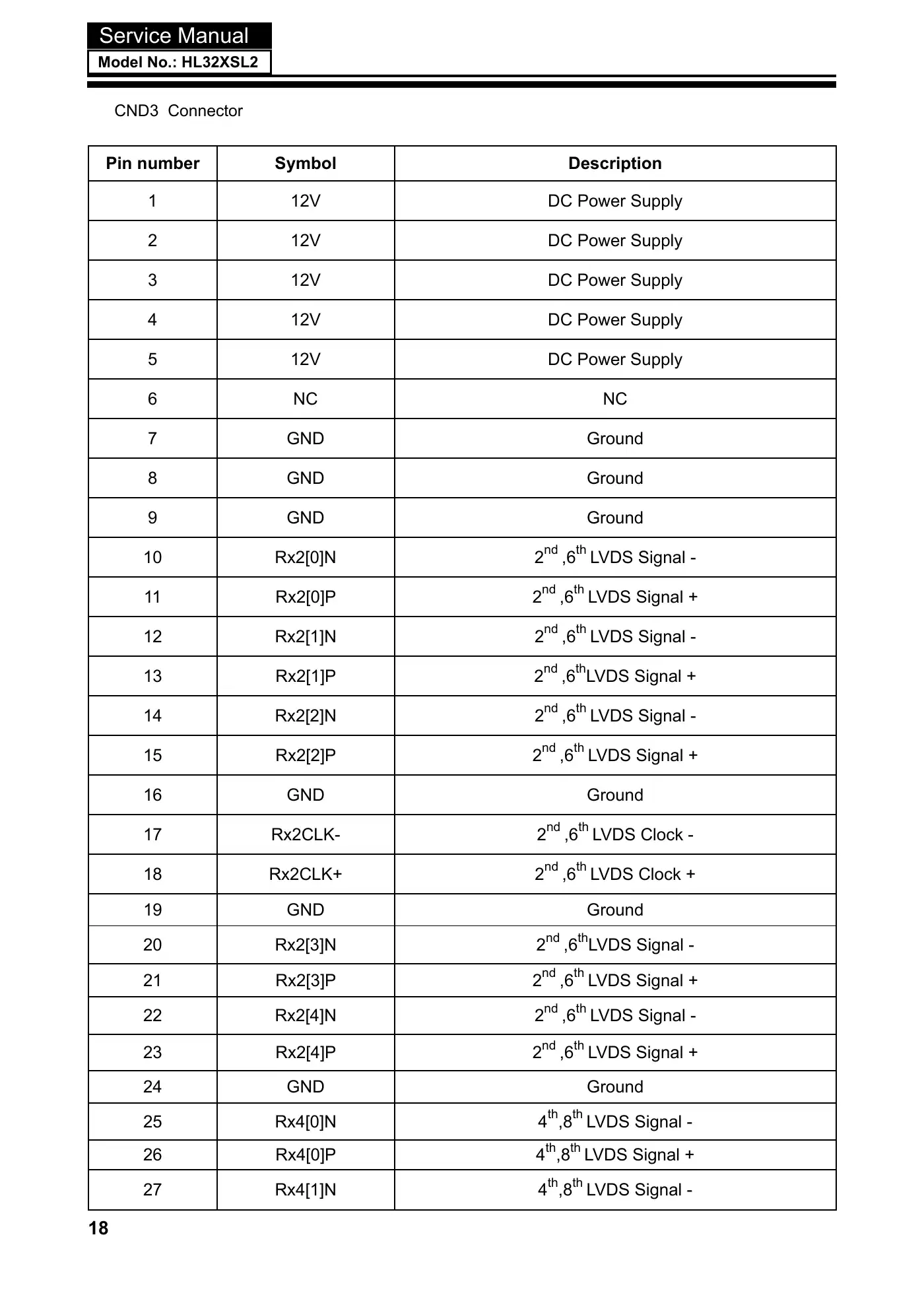

Pin number Symbol Description1 12V DC Power Supply2 12V DC Power Supply3 12V DC Power Supply4 12V DC Power Supply5 12V DC Power Supply6 NC NC7 GND Ground8 GND Ground9 GND Ground10 Rx2[0]N 2 nd ,6th LVDS Signal -11 Rx2[0]P 2 nd ,6th LVDS Signal +12 Rx2[1]N 2 nd ,6th LVDS Signal -13 Rx2[1]P 2 nd ,6thLVDS Signal +14 Rx2[2]N 2 nd ,6th LVDS Signal -15 Rx2[2]P 2 nd ,6th LVDS Signal +16 GND Ground17 Rx2CLK- 2nd ,6th LVDS Clock -18 Rx2CLK+ 2 nd ,6th LVDS Clock +19 GND Ground20 Rx2[3]N 2 nd ,6thLVDS Signal -21 Rx2[3]P 2 nd ,6th LVDS Signal +22 Rx2[4]N 2 nd ,6th LVDS Signal -23 Rx2[4]P 2 nd ,6th LVDS Signal +24 GND Ground25 Rx4[0]N 4th,8th LVDS Signal -26 Rx4[0]P 4th,8th LVDS Signal +27 Rx4[1]N 4th,8th LVDS Signal -CND3 ConnectorService ManualModel No.: HL32XSL218
/ 59
