Haier HL32XSL2 Service Manual

Also see for HL32XSL2:

Contents
  1. Table of Contents2
  2. Chapter 1.General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble11
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions21
  7. Chapter 6. Operation Instructions24
  8. Chapter 7. Electrical Parts27
  9. Chapter 8. Measurements and Adjustments48
  10. Chapter 9. Trouble Shooting51

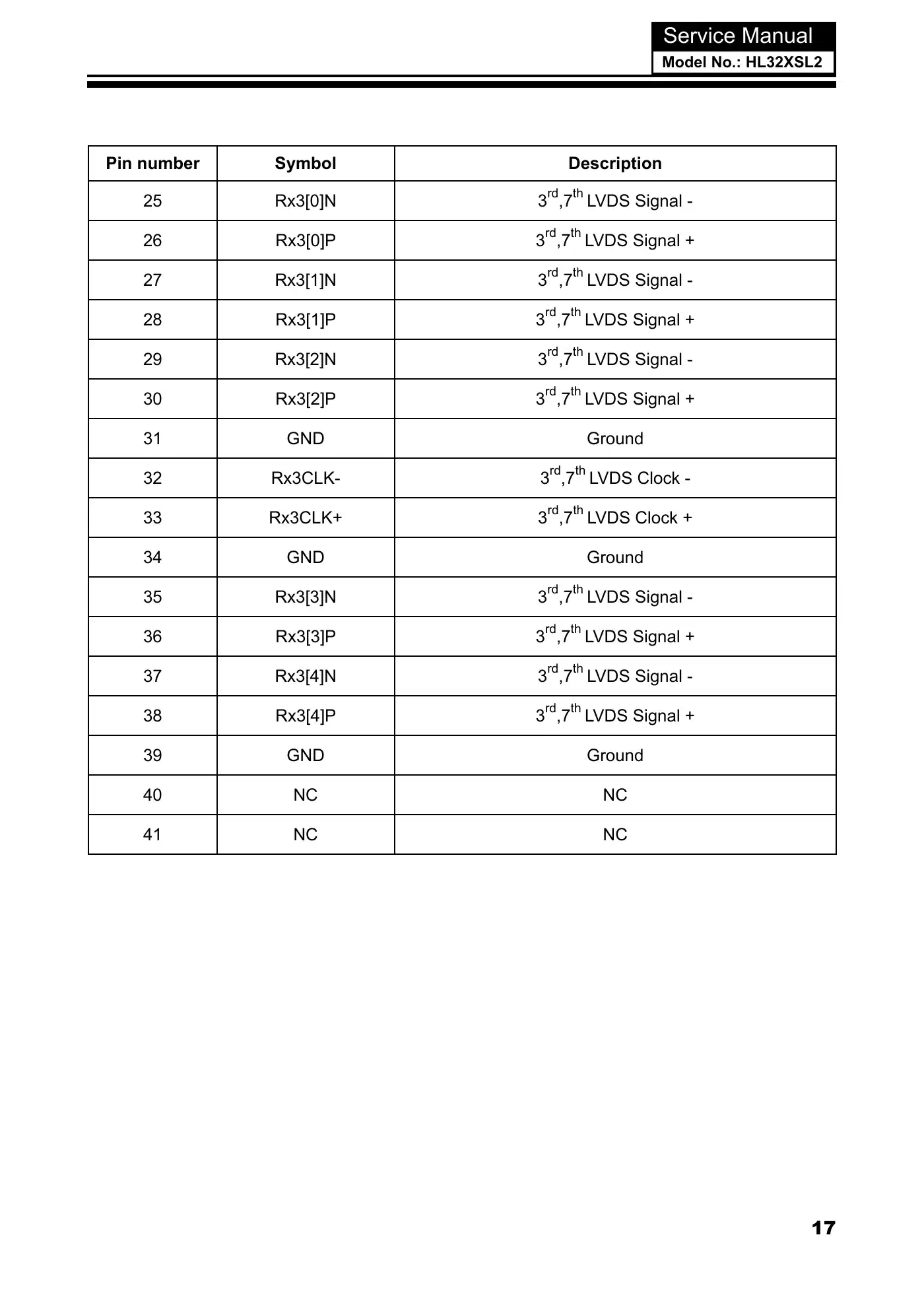

Haier HL32XSL2 Service Manual Manual pdf 18 page image
Pin number Symbol Description25 Rx3[0]N 3 rd ,7th LVDS Signal -26 Rx3[0]P 3rd ,7th LVDS Signal +27 Rx3[1]N 3rd ,7th LVDS Signal -28 Rx3[1]P 3rd ,7th LVDS Signal +29 Rx3[2]N 3rd ,7th LVDS Signal -30 Rx3[2]P 3rd ,7th LVDS Signal +31 GND Ground32 Rx3CLK- 3rd ,7th LVDS Clock -33 Rx3CLK+ 3 rd ,7th LVDS Clock +34 GND Ground35 Rx3[3]N 3 rd ,7th LVDS Signal -36 Rx3[3]P 3rd ,7th LVDS Signal +37 Rx3[4]N 3rd ,7th LVDS Signal -38 Rx3[4]P 3rd ,7th LVDS Signal +39 GND Ground40 NC NC41 NC NCService ManualModel No.: HL32XSL217
