Haier HL32XSL2 Service Manual

Also see for HL32XSL2:

Contents
  1. Table of Contents2
  2. Chapter 1.General Information4
  3. Chapter 2. Specification9
  4. Chapter 3. Disassemble and Assemble11
  5. Chapter 4. Location of Controls and Components14
  6. Chapter 5. Installation Instructions21
  7. Chapter 6. Operation Instructions24
  8. Chapter 7. Electrical Parts27
  9. Chapter 8. Measurements and Adjustments48
  10. Chapter 9. Trouble Shooting51
Haier HL32XSL2 Service Manual Manual pdf 14 page image

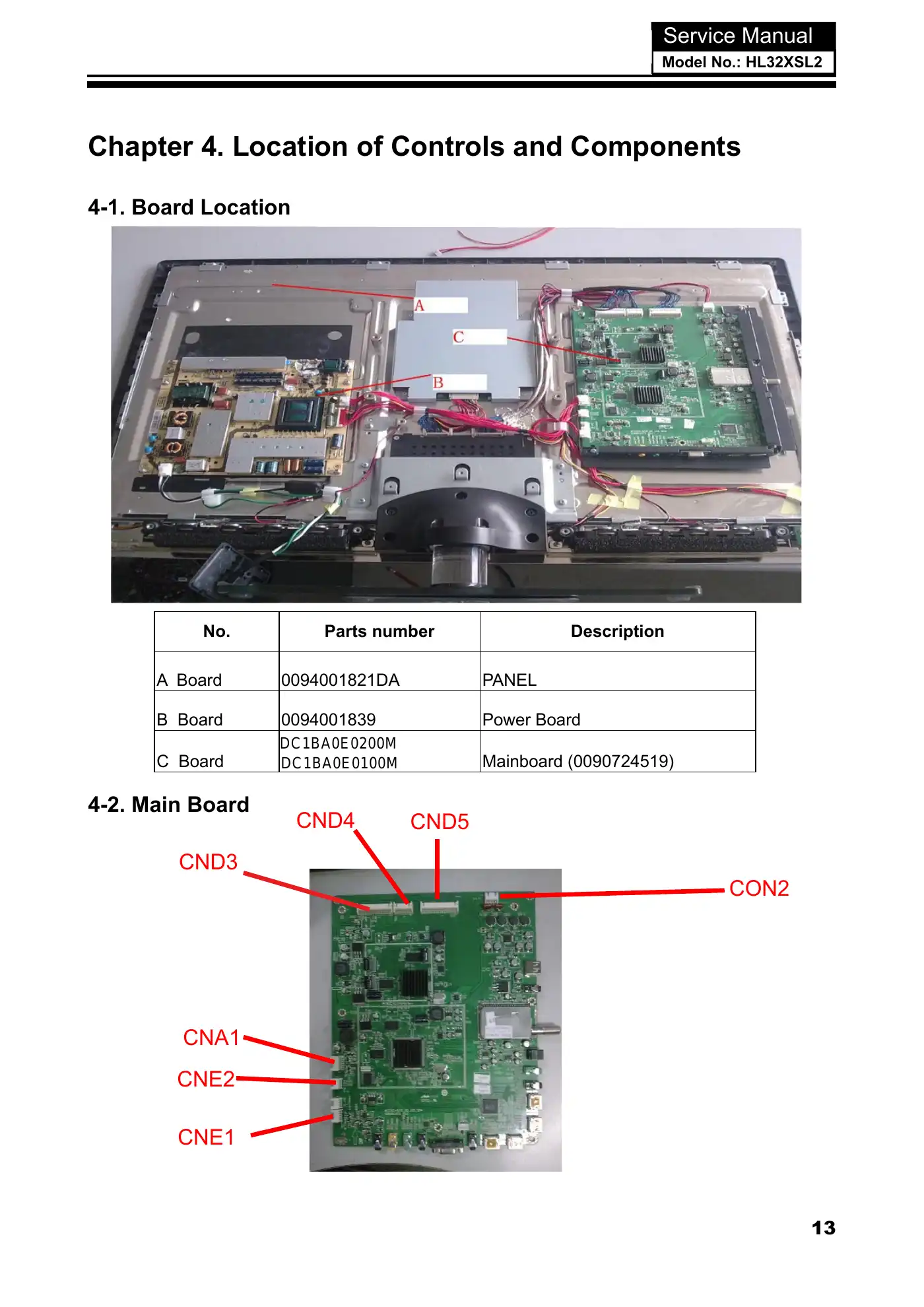

Chapter 4. Location of Controls and Components4-1. Board LocationNo. Parts number DescriptionA Board 0094001821DA PANELB Board 0094001839 Power BoardC Board Mainboard (0090724519)4-2. Main BoardService ManualModel No.: HL32XSL213ABCCND4CND3CON2CNE2CNA1CND5CNE1DC1BA0E0200MDC1BA0E0100M
